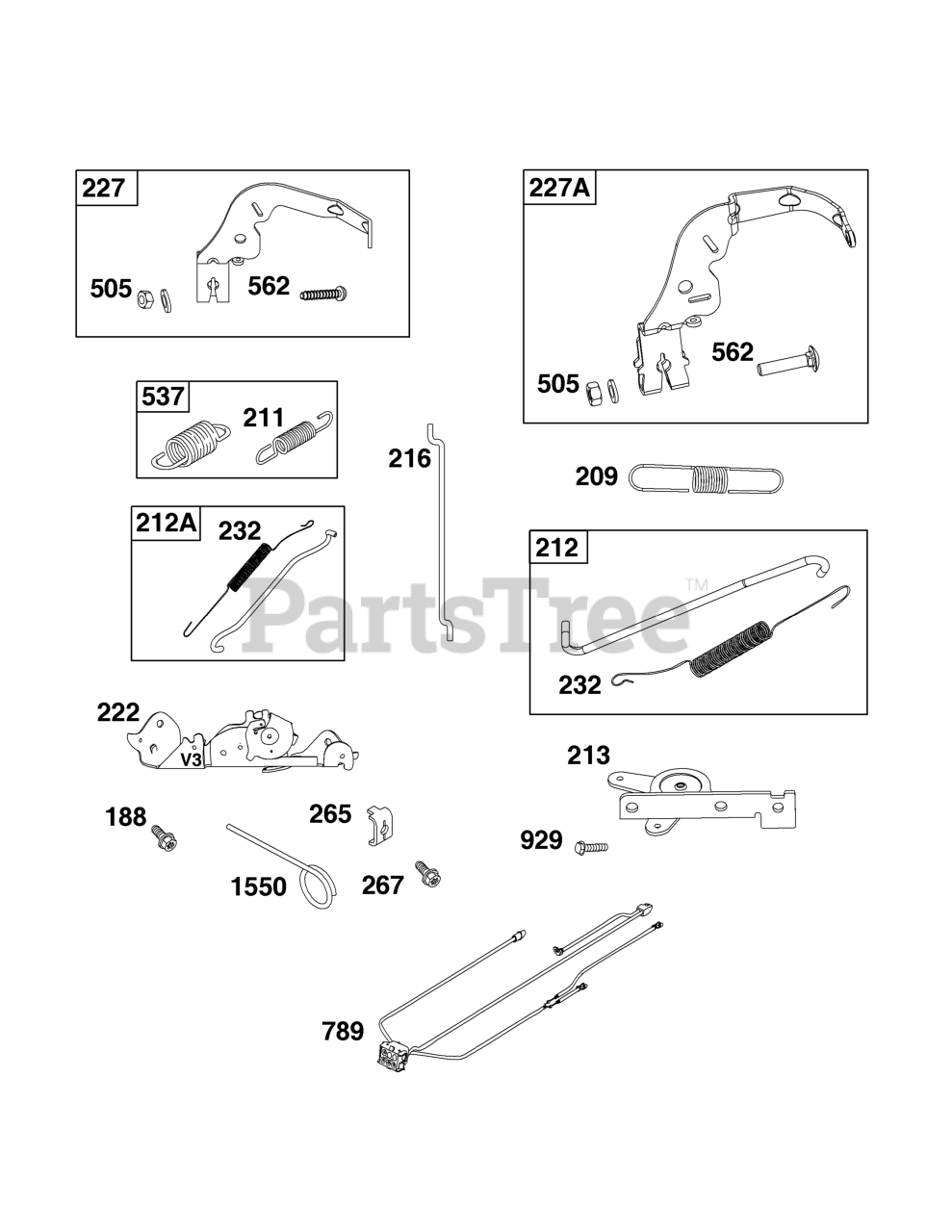

44U877-0018-B1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title
188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799258

SPRING, Governor

Note: Used After Code Date 18080500

$7.99

$

In Stock, only 1 left!

0

211

Briggs & Stratton 593724

SPRING, Governed Idle

$4.49

$

In Stock, only 1 left!

0

212

Briggs & Stratton 597778

LINK, Throttle

Note: Used After Code Date 18080500

$8.99

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 597429

LINK, Throttle

Note: Used Before Code Date 18080600

$7.49

$

In Stock, Qty 20+

0

213

Briggs & Stratton 691021

BRACKET, Choke Control

$10.99

$

In Stock, only 3 left!

0

216

$8.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798856

LEVER, Governor Control

Note: Used Before Code Date 18080600

$23.99

$

In Stock, Qty 9

0

227A

Briggs & Stratton 593857

LEVER, Governor Control

Note: Used After Code Date 18080500

$39.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$9.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594918

KIT, Governor/Idle Spring

Note: Used Before Code Date 18080600

$17.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591393

HARNESS, Wiring

$45.99

$

In Stock, only 1 left!

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

Usually ships in 2-12 days

0
