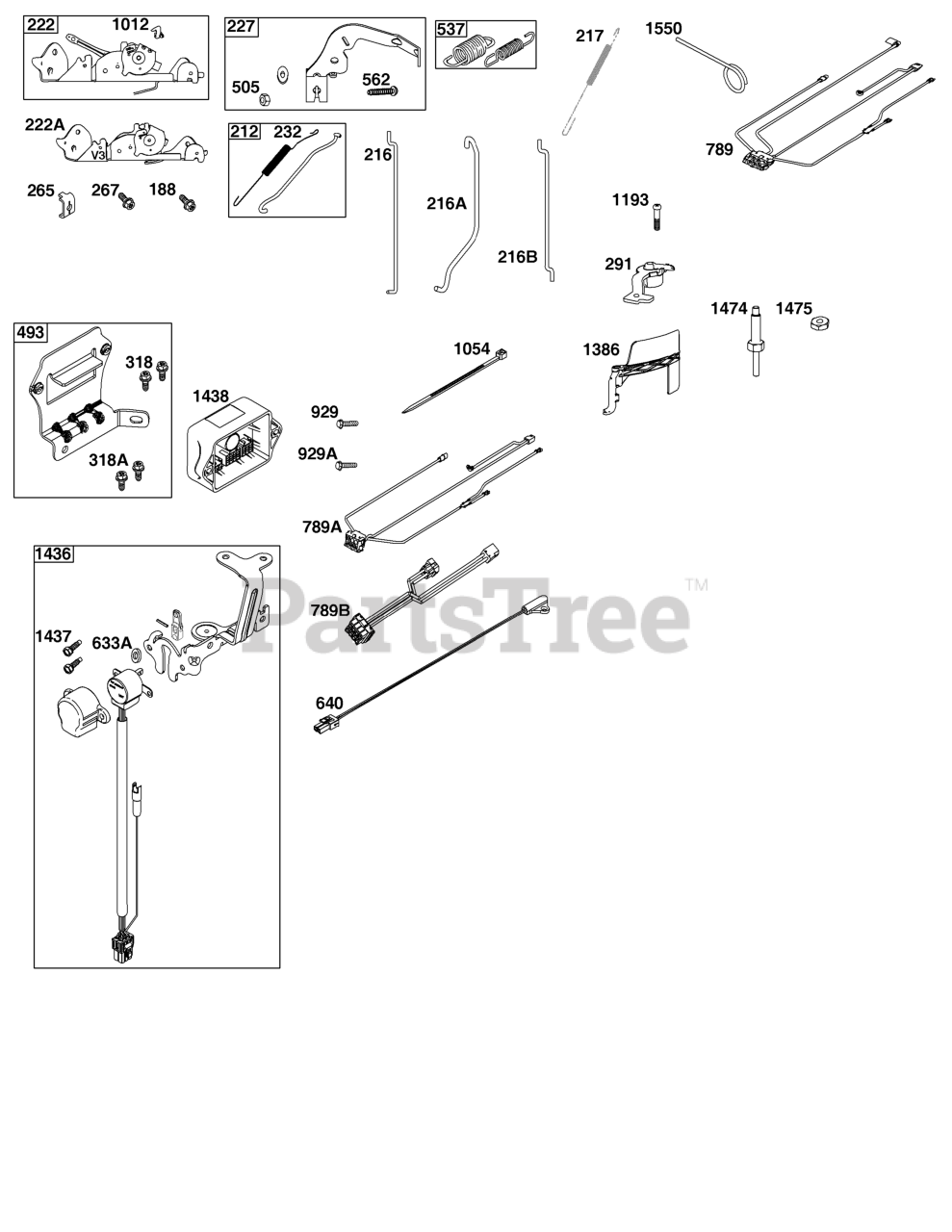

44U877-0011-G1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

212

Briggs & Stratton 792265

LINK, Throttle
(Superseded to 597429)

$7.49

$

In Stock, Qty 20+

0

216

Briggs & Stratton 796229

LINK, Choke

Note: Used After Code Date 17081300

$9.49

$

In Stock, Qty 11

0

216A

Briggs & Stratton 596430

LINK-CHOKE

Note: Used After Code Date 17081300

$5.49

$

In Stock, Qty 12

0

216B

Briggs & Stratton 796879

LINK, Choke

Note: Used Before Code Date 17081400

$7.99

$

Usually ships in 2-12 days

0

217

SPRING, Choke Return

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

222

Briggs & Stratton 592555

BRACKET, Control

Note: Used After Code Date 17081300

$43.99

$

Usually ships in 2-12 days

0

222A

Briggs & Stratton 798916

BRACKET, Control

Note: Used Before Code Date 17081400

$39.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798856

LEVER, Governor Control

$23.99

$

In Stock, Qty 9

0

232

Briggs & Stratton 795915

SPRING, Governor Link

$28.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp) Used Before Code Date 17081400

$3.49

$

Usually ships in 2-12 days

0

291

Briggs & Stratton 592581

THERMOSTAT

Note: Used After Code Date 17081300

$28.99

$

In Stock, Qty 6

0

318

Briggs & Stratton 691127

SCREW

Note: (Mounting Bracket) Used Before Code Date 17081400

$4.49

$

In Stock, Qty 13

0

318A

Briggs & Stratton 792629

SCREW

Note: (Mounting Bracket) Used Before Code Date 17081400

$3.49

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 797176

BRACKET, Mounting

Note: Used Before Code Date 17081400

$28.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594918

KIT, Governor/Idle Spring

$17.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

Seal-Dust (Throttle Shaft)

Note: Used Before Code Date 17081400

$4.99

$

Usually ships in 2-12 days

0

640

Briggs & Stratton 796913

Wire Assembly-Thermistor

Note: Used Before Code Date 17081400

$33.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591393

HARNESS, Wiring

Note: Used After Code Date 17081300

$45.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 797492

HARNESS, Wiring

Note: Used Before Code Date 17081400

$45.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 796914

HARNESS, Wiring

Note: Used Before Code Date 17081400

$39.99

$

Usually ships in 2-12 days

0

929

Briggs & Stratton 691003

SCREW

Note: (Choke Control Bracket) Used Before Code Date 17081400

$3.49

$

In Stock, Qty 9

0

929A

Briggs & Stratton 794904

SCREW

Note: (Choke Control Bracket) Used Before Code Date

$3.49

$

Usually ships in 2-12 days

0

1012

Briggs & Stratton 592556

RETAINER, Link

Note: Used After Code Date 17081300

$5.99

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: Used Before Code Date 17081400

$4.49

$

Usually ships in 2-12 days

0

1193

Briggs & Stratton 592577

SCREW

Note: (Thermostat) Used After Code Date 17081300

$3.99

$

In Stock, only 1 left!

0

1386

Briggs & Stratton 592580

VANE, Air

Note: Used After Code Date 17081300

$11.99

$

In Stock, Qty 20+

0

1436

Briggs & Stratton 796918

MOTOR, Stepper/Bracket

Note: Used Before Code Date 17081400

$69.99

$

In Stock, only 2 left!

0

1437

Briggs & Stratton 699891

SCREW

Note: (Stepper/Bracket Motor) Used Before Code Date 17081400

$3.49

$

Usually ships in 2-12 days

0

1438

Briggs & Stratton 796352S

MODULE, Electronic Choke

Note: Used Before Code Date 17081400

$139.99

$

In Stock, only 3 left!

0

1474

Briggs & Stratton 592579

STUD

Note: (Air Vane) Used After Code Date 17081300

$7.49

$

Usually ships in 2-12 days

0

1475

Briggs & Stratton 592578

NUT

Note: (Air Vane) Used After Code Date 17081300

$4.99

$

Usually ships in 2-12 days

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

Usually ships in 2-12 days

0
