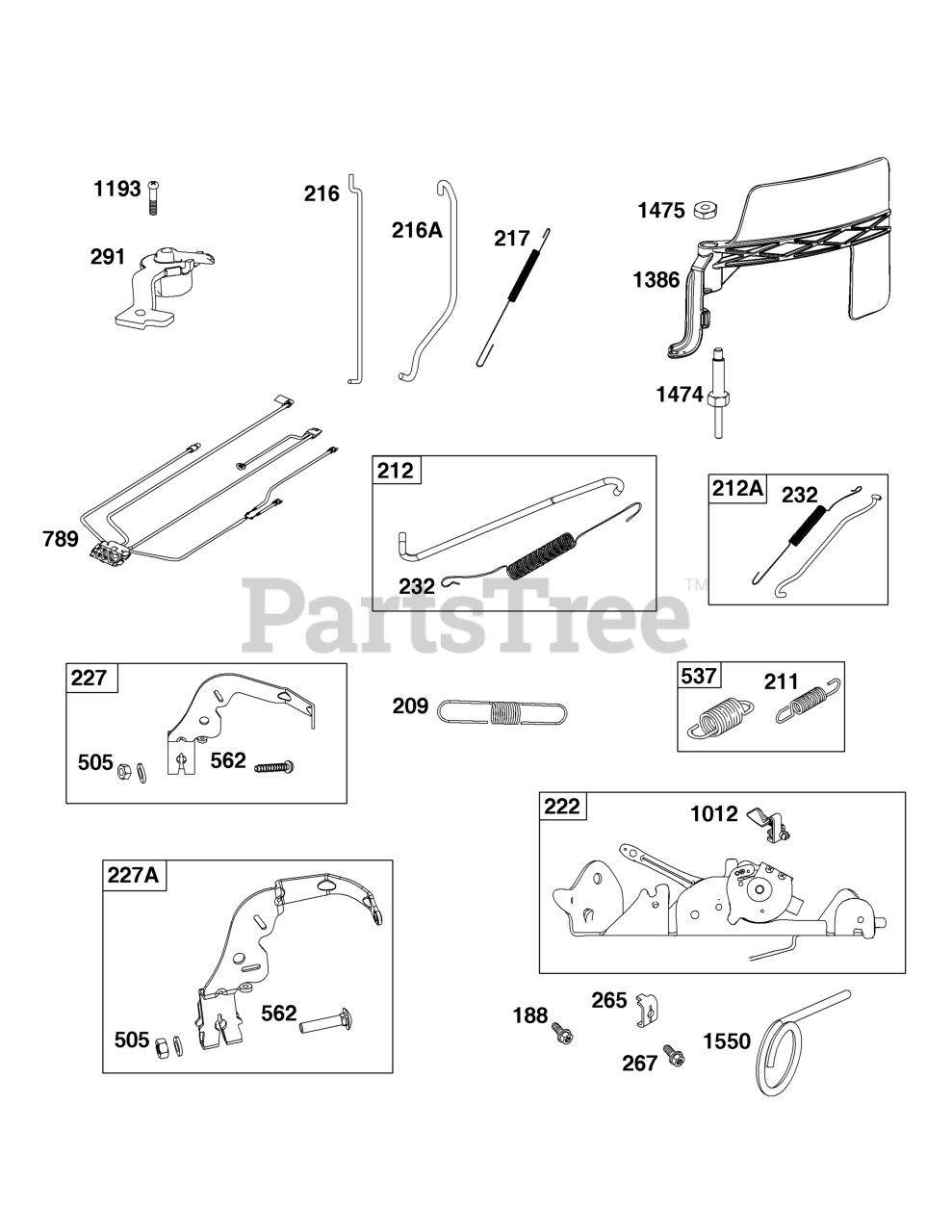

44U677-0010-G1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title
188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799258

SPRING, Governor

Note: Used After Code Date 18080500

$7.99

$

In Stock, only 1 left!

0

211

Briggs & Stratton 593724

SPRING, Governed Idle

$4.49

$

In Stock, only 1 left!

0

212

Briggs & Stratton 597778

LINK, Throttle

Note: Used After Code Date 18080500

$8.99

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 597429

LINK, Throttle

Note: Used Before Code Date 18080600

$7.49

$

In Stock, Qty 20+

0

216

$9.49

$

In Stock, Qty 11

0

216A

$9.49

$

In Stock, only 1 left!

0

217

SPRING, Choke Return

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

222

Briggs & Stratton 597334

BRACKET, Control

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798856

LEVER, Governor Control

Note: Used Before Code Date 18080600

$23.99

$

In Stock, Qty 9

0

227A

Briggs & Stratton 593857

LEVER, Governor Control

Note: Used After Code Date 18080500

$39.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$9.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

291

$

$

Not available

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594918

KIT, Governor/Idle Spring

Note: Used Before Code Date 18080600

$17.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591393

HARNESS, Wiring

$45.99

$

In Stock, only 1 left!

0

1012

Briggs & Stratton 597335

RETAINER, Link

$5.99

$

In Stock, only 1 left!

0

1193

Briggs & Stratton 592577

SCREW

Note: (Thermostat)

$3.99

$

In Stock, only 1 left!

0

1386

$11.99

$

In Stock, Qty 20+

0

1474

Briggs & Stratton 592579

STUD

Note: (Air Vane)

$7.49

$

Usually ships in 2-12 days

0

1475

Briggs & Stratton 592578

NUT

Note: (Air Vane)

$4.99

$

Usually ships in 2-12 days

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

Usually ships in 2-12 days

0
