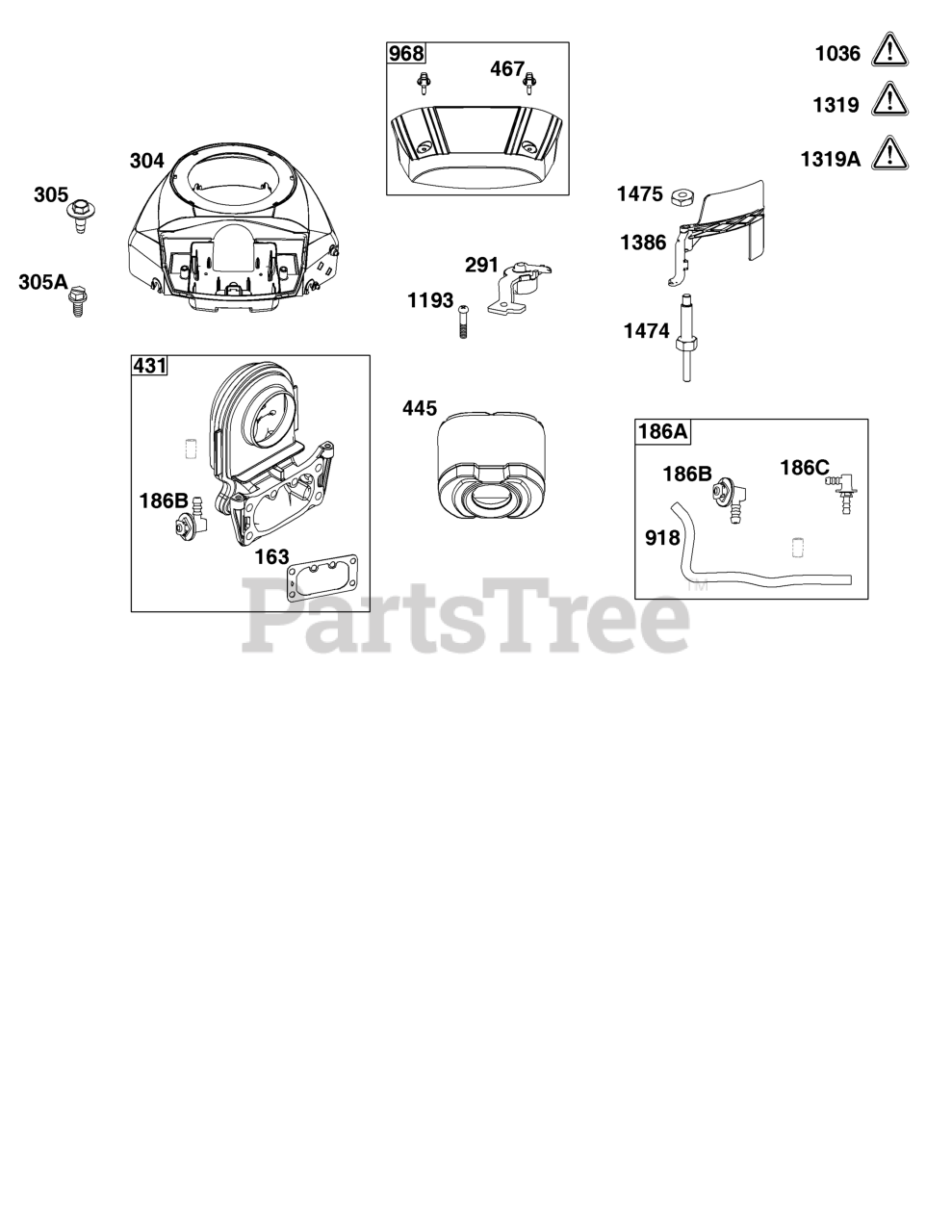

44S977-0045-G1 - Briggs & Stratton Vertical Engine Blower Housing and Air Cleaner Group Parts Diagram

Vertical Engine

Blower Housing and Air Cleaner Group Parts Diagram

  • Title

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

186A

CONNECTOR, Hose

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

186B

CONNECTOR, Hose

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

186C

CONNECTOR, Hose

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

291

THERMOSTAT

Note: (Part information located in Controls Group.)

$

$

Not available

304

Briggs & Stratton 591668

HOUSING, Blower
(Superseded to 597767)

Note: Used Before Code Date 18120300

$187.99

$

In Stock, Qty 5

0

304

Briggs & Stratton 597767

HOUSING, Blower

Note: Used After Code Date 18120200

$187.99

$

In Stock, Qty 5

0

305

Briggs & Stratton 594618

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 790690

SCREW

Note: (Blower Housing)

$3.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 798860

ELBOW, Intake

$59.99

$

In Stock, only 2 left!

0

445

Briggs & Stratton 792105

FILTER, A/C Cartridge

$28.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 790697

KNOB, Air Cleaner Cover

$7.99

$

In Stock, only 4 left!

0

918

HOSE, Vacuum

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

968

Briggs & Stratton 795120

COVER, Air Cleaner

$39.99

$

In Stock, only 1 left!

0

1036

LABEL, Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1193

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0

1386

VANE, Air

Note: (Part information located in Controls Group.)

$

$

Not available

1474

STUD

Note: (Part information located in Controls Group.)

$

$

Not available

1475

NUT

Note: (Part information located in Controls Group.)

$

$

Not available
