44S977-0041-G1 - Briggs & Stratton Vertical Engine Lubrication Group Parts Diagram

Vertical Engine

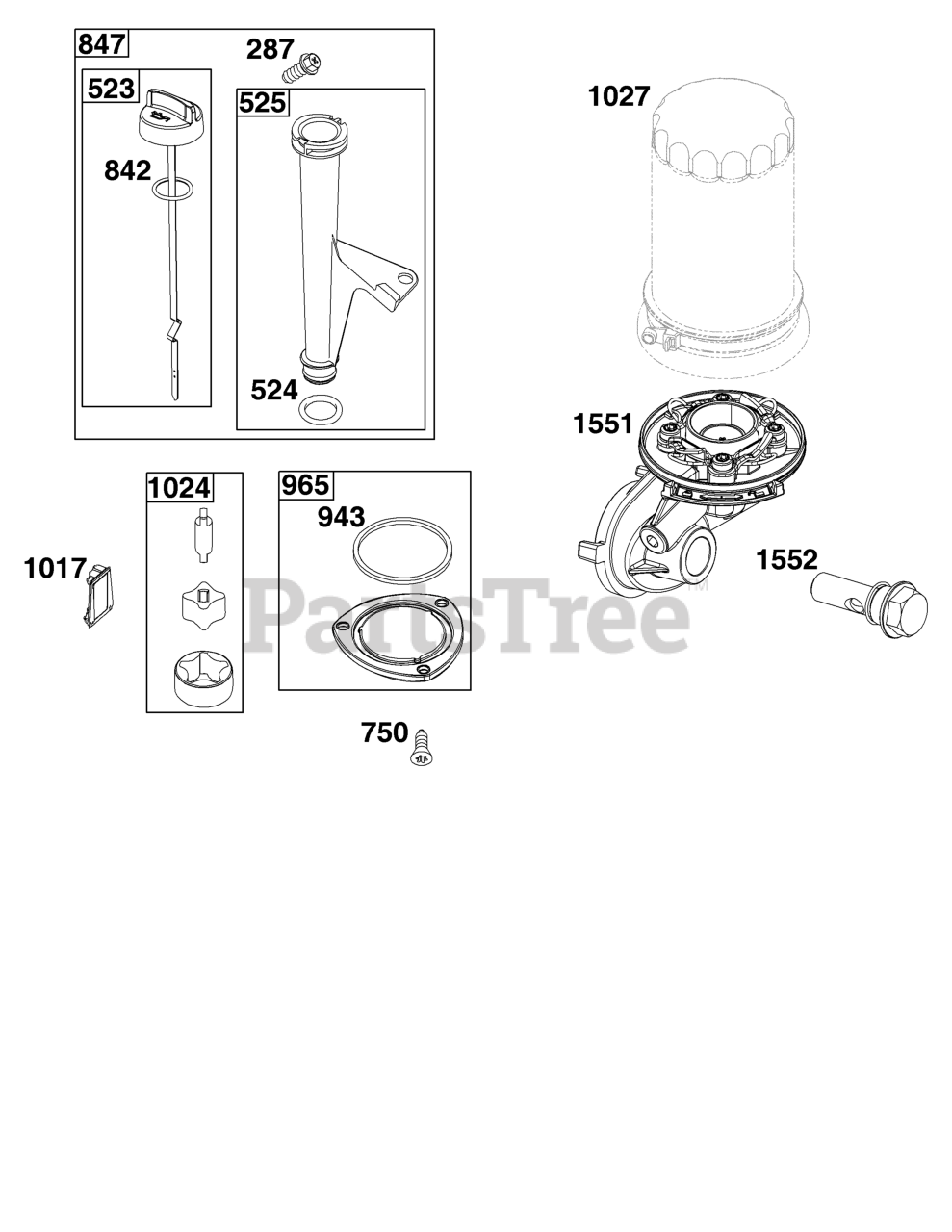

Lubrication Group Parts Diagram

  • Title

287

Briggs & Stratton 697820

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 3 left!

0

523

Briggs & Stratton 594528

DIPSTICK

$18.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 2 left!

0

750

Briggs & Stratton 796208

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, only 4 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 594609

DIPSTICK/TUBE ASSEMBLY
(Superseded to 597130)

$47.99

$

In Stock, only 3 left!

0

943

Briggs & Stratton 796222

SEAL, O-Ring

Note: (Oil Pump Cover)

$6.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 796221

COVER, Oil Pump

$10.99

$

In Stock, only 1 left!

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 796220

PUMP, Oil

$31.99

$

In Stock, only 2 left!

0

1027

FILTER, Oil

Note: (See OEM For Service)

$

$

Not available

1551

Briggs & Stratton 597299

DIVERTER, Oil Filter

Note: (See OEM For Service)

$40.99

$

Usually ships in 2-12 days

0

1552

Briggs & Stratton 597300

BOLT

Note: (Oil Filter Diverter) (See OEM For Service)

$2.99

$

Usually ships in 2-12 days

0
