44S977-0041-G1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

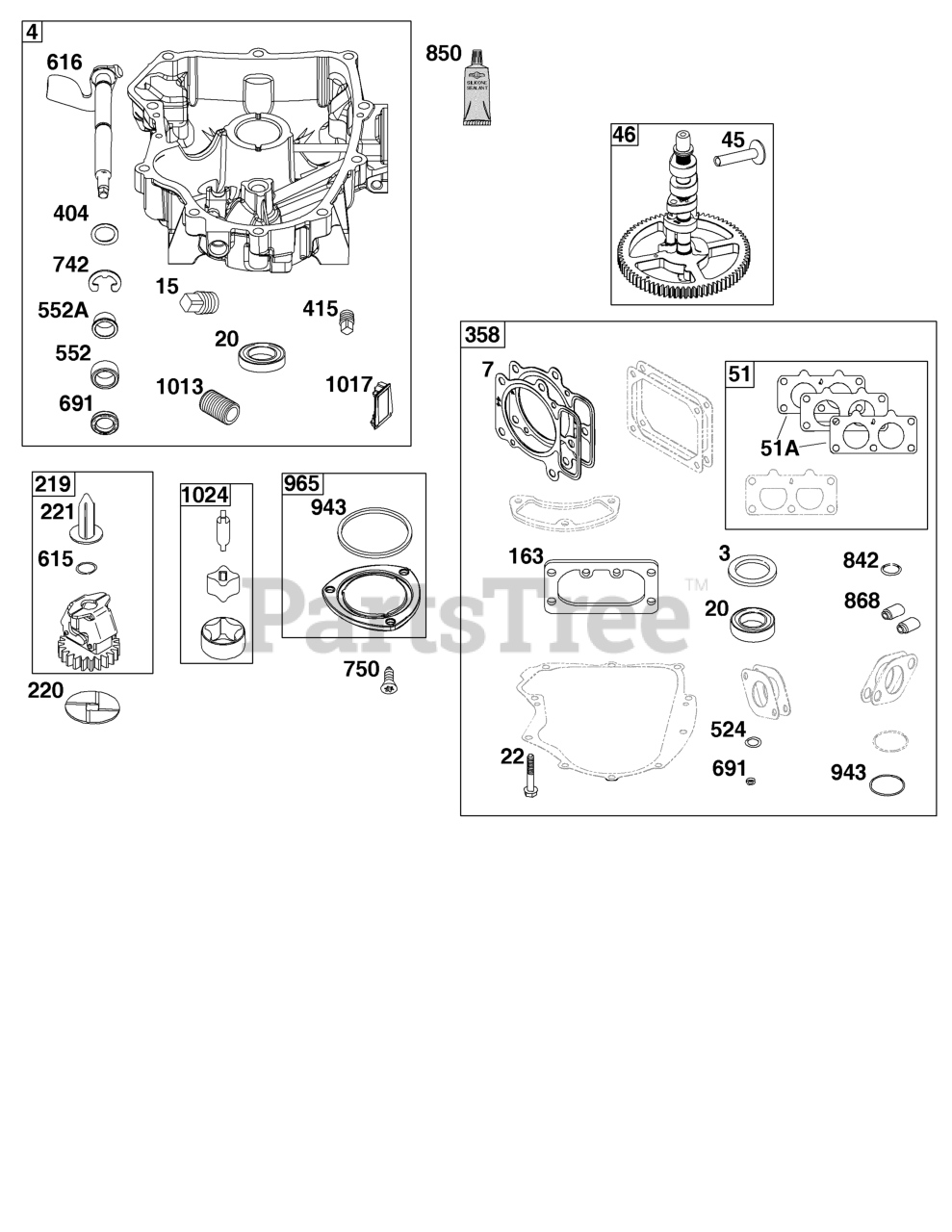

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 597301

SUMP, Engine

$268.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

CAMSHAFT

Note: (Part information located in Crankshaft Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

219

Briggs & Stratton 793338

GEAR, Governor

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 799772

WASHER

Note: (Governor Gear)

$6.49

$

In Stock, Qty 20+

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

404

Briggs & Stratton 690442

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, Qty 5

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

552

Briggs & Stratton 796638

BUSHING, Governor Crank

$6.99

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

BUSHING, Governor Crank

$7.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

CRANK, Governor

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

742

Briggs & Stratton 690328

RETAINER, E Ring

$4.49

$

In Stock, Qty 6

0

750

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available
