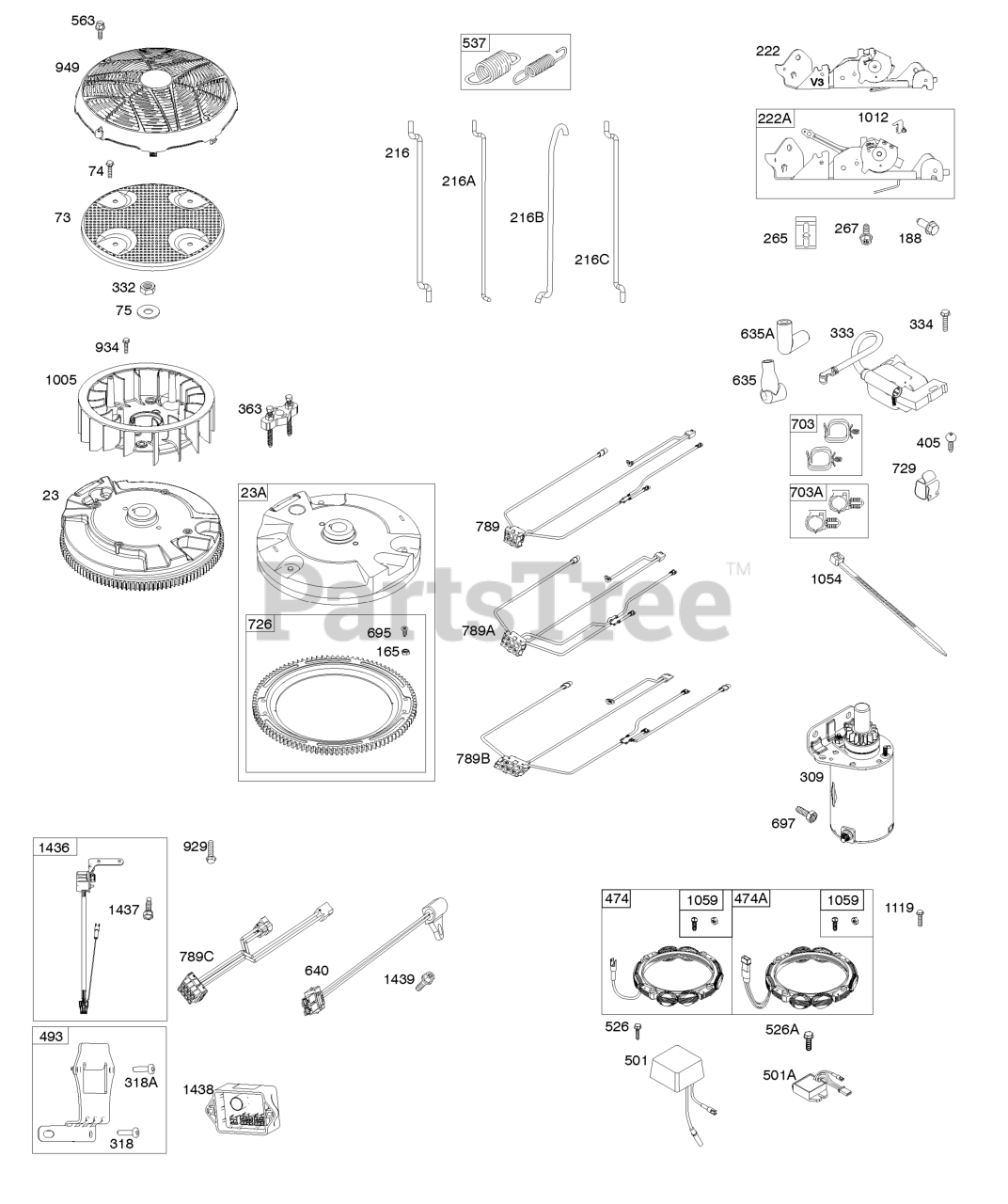

44S777-0018-G1 - Briggs & Stratton Vertical Engine Flywheel, Controls, Wire Harness, Alternator, Starter Parts Diagram

Vertical Engine

Flywheel, Controls, Wire Harness, Alternator, Starter Parts Diagram

  • Title

23

Briggs & Stratton 594169

FLYWHEEL

Note: Used After Code Date 14082400

$235.99

$

Usually ships in 2-12 days

0

23A

Briggs & Stratton 691053

Flywheel
(Superseded to 84004658)

Note: Used Before Code Date 14082500

$255.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 494439

SCREEN, Rotating

$53.99

$

In Stock, Qty 10

0

74

Briggs & Stratton 698425

SCREW

Note: (Rotating Screen)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 693148

Nut

Note: (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

216A

Briggs & Stratton 796229

LINK, Choke

$9.49

$

In Stock, Qty 11

0

216B

Briggs & Stratton 592575

LINK, Choke

$9.49

$

In Stock, only 1 left!

0

222A

Briggs & Stratton 592555

BRACKET, Control

$43.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 497595

Motor-Starter

Note: Used Before Code Date 14082500

$110.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 592599

MOTOR, Starter

Note: Used After Code Date 14082400

$184.99

$

In Stock, only 1 left!

0

318

Briggs & Stratton 691127

SCREW

Note: (Mounting Bracket)

$4.49

$

In Stock, Qty 13

0

318A

Briggs & Stratton 792629

SCREW

Note: (Mounting Bracket)

$3.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 592846

ARMATURE, Magneto

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 594937

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 592829

ALTERNATOR

Note: (5/9 Amp. Regulated)

$102.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 592830

ALTERNATOR

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

493

Briggs & Stratton 797176

BRACKET, Mounting

$28.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 593490

REGULATOR

$46.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 691129

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 6

0

526A

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 594917

KIT, Governor/Idle Spring

$18.99

$

In Stock, only 1 left!

0

563

Briggs & Stratton 799359

Screw

Note: (Debris Screen Guard)

$4.49

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 7

0

640

Briggs & Stratton 796913

Wire Assembly-Thermistor

$33.99

$

Usually ships in 2-12 days

0

695

Briggs & Stratton 693149

Screw

Note: (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

697

Briggs & Stratton 591909

SCREW

Note: (Starter Motor) (Drive Cap)

$2.99

$

In Stock, Qty 10

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

703A

Briggs & Stratton 592584

CLIP

$6.99

$

In Stock, only 1 left!

0

726

Briggs & Stratton 499612

Gear-Ring

$71.99

$

In Stock, Qty 20+

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 591392

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 593638

SCREW

Note: (Fan Retainer)

$5.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 798767

Guard-Debris Screen

$45.99

$

In Stock, Qty 8

0

1005

Briggs & Stratton 593640

FAN, Flywheel

$26.99

$

In Stock, only 1 left!

0

1012

Briggs & Stratton 592556

RETAINER, Link

$5.99

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1436

Briggs & Stratton 796918

MOTOR, Stepper/Bracket

$69.99

$

In Stock, only 2 left!

0

1437

Briggs & Stratton 695239

SCREW

Note: (Stepper/Bracket Motor)

$3.49

$

Usually ships in 2-12 days

0

1438

Briggs & Stratton 796352S

MODULE, Electronic Choke

$139.99

$

In Stock, only 3 left!

0

1439

Briggs & Stratton 794904

SCREW

Note: (Thermistor Wire Assembly)

$3.49

$

Usually ships in 2-12 days

0
