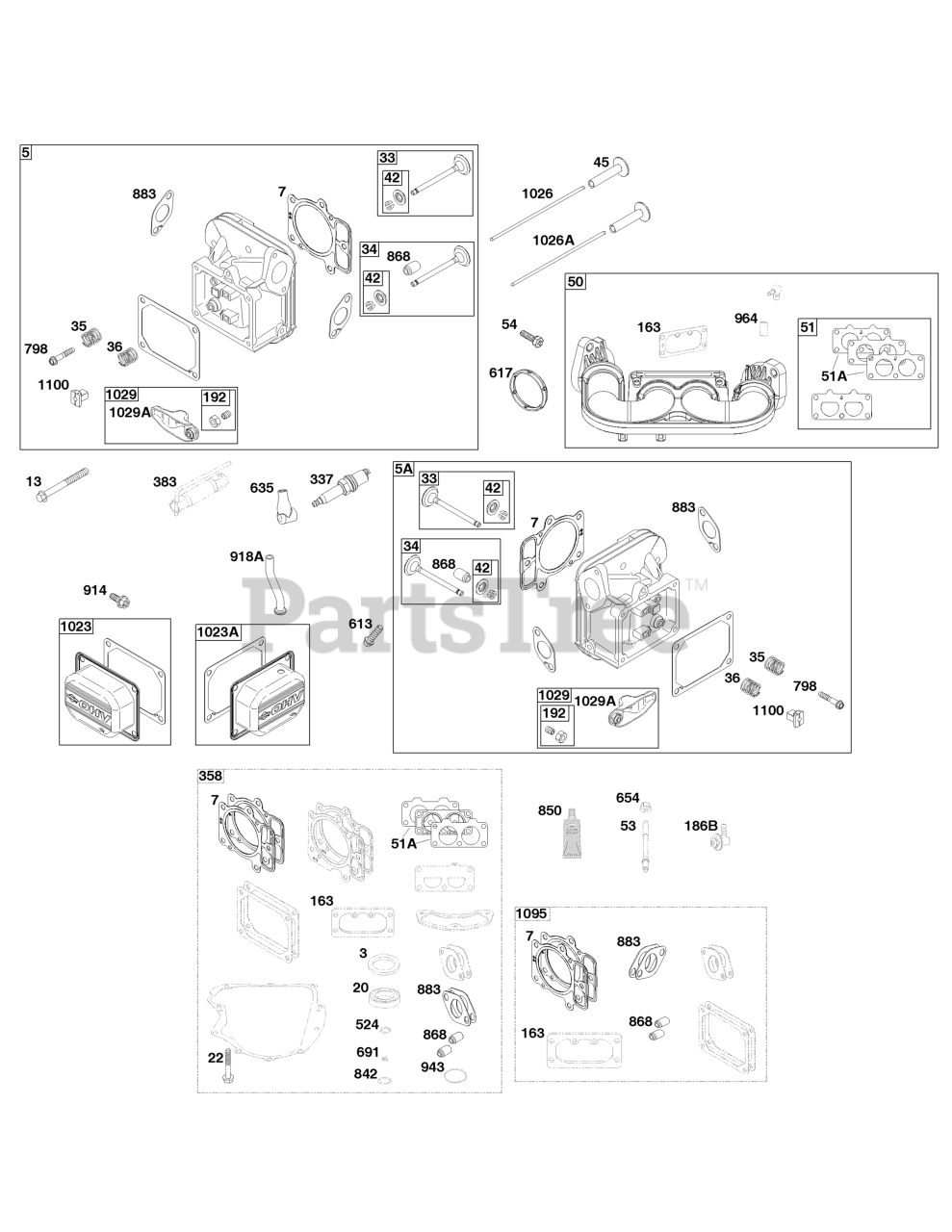

44S677-0034-B1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

(Part information located in another group.)

Note: (Magneto Side)

$

$

Not available

5

Briggs & Stratton 796231

HEAD, Cylinder
(Superseded to 84001918)

$235.99

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 796232

HEAD, Cylinder
(Superseded to 84001919)

$202.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 693997

GASKET, Cylinder Head

$24.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 20+

0

20

(Part information located in another group.)

Note: (PTO Side)

$

$

Not available

22

(Part information located in another group.)

Note: (Crankcase Cover/Sump)

$

$

Not available

33

Briggs & Stratton 697576

VALVE, Exhaust

$43.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 795199

VALVE, Intake

$35.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 595606

MANIFOLD, Intake

$87.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 795123

GASKET, Intake

$4.99

$

In Stock, Qty 8

0

51A

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 13

0

53

(Part information located in another group.)

Note: (Carburetor)

$

$

Not available

54

Briggs & Stratton 699816

SCREW

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 7

0

163

(Part information located in another group.)

$

$

Not available

186B

(Part information located in another group.)

$

$

Not available

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

358

(Part information located in another group.)

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Not available

383

(Part information located in another group.)

$

$

Not available

524

(Part information located in another group.)

Note: (Dipstick Tube)

$

$

Not available

613

Briggs & Stratton 690341

SCREW

Note: (Muffler)

$5.99

$

In Stock, only 3 left!

0

617

Briggs & Stratton 594209

SEAL, O-Ring

Note: (Intake Manifold)

$7.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 5

0

654

(Part information located in another group.)

Note: (Carburetor)

$

$

Not available

691

(Part information located in another group.)

$

$

Not available

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

842

(Part information located in another group.)

Note: (Dipstick Cap)

$

$

Not available

850

(Part information located in another group.)

$

$

Not available

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 19

0

914

Briggs & Stratton 691127

SCREW

Note: (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

918A

Briggs & Stratton 593998

HOSE, Vacuum
(Superseded to 596163)

$7.99

$

In Stock, Qty 20+

0

943

(Part information located in another group.)

Note: (Oil Pump Cover)

$

$

Not available

964

(Part information located in another group.)

$

$

Not available

1023

Briggs & Stratton 499600

COVER, Rocker

$15.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 793146

COVER, Rocker
(Superseded to 84003848)

$22.99

$

In Stock, Qty 8

0

1026

Briggs & Stratton 690981

ROD, Push
(Superseded to 597785)

Note: (Steel)

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

ROD, Push

Note: (Aluminum)

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 11

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1095

(Part information located in another group.)

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Not available

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0
