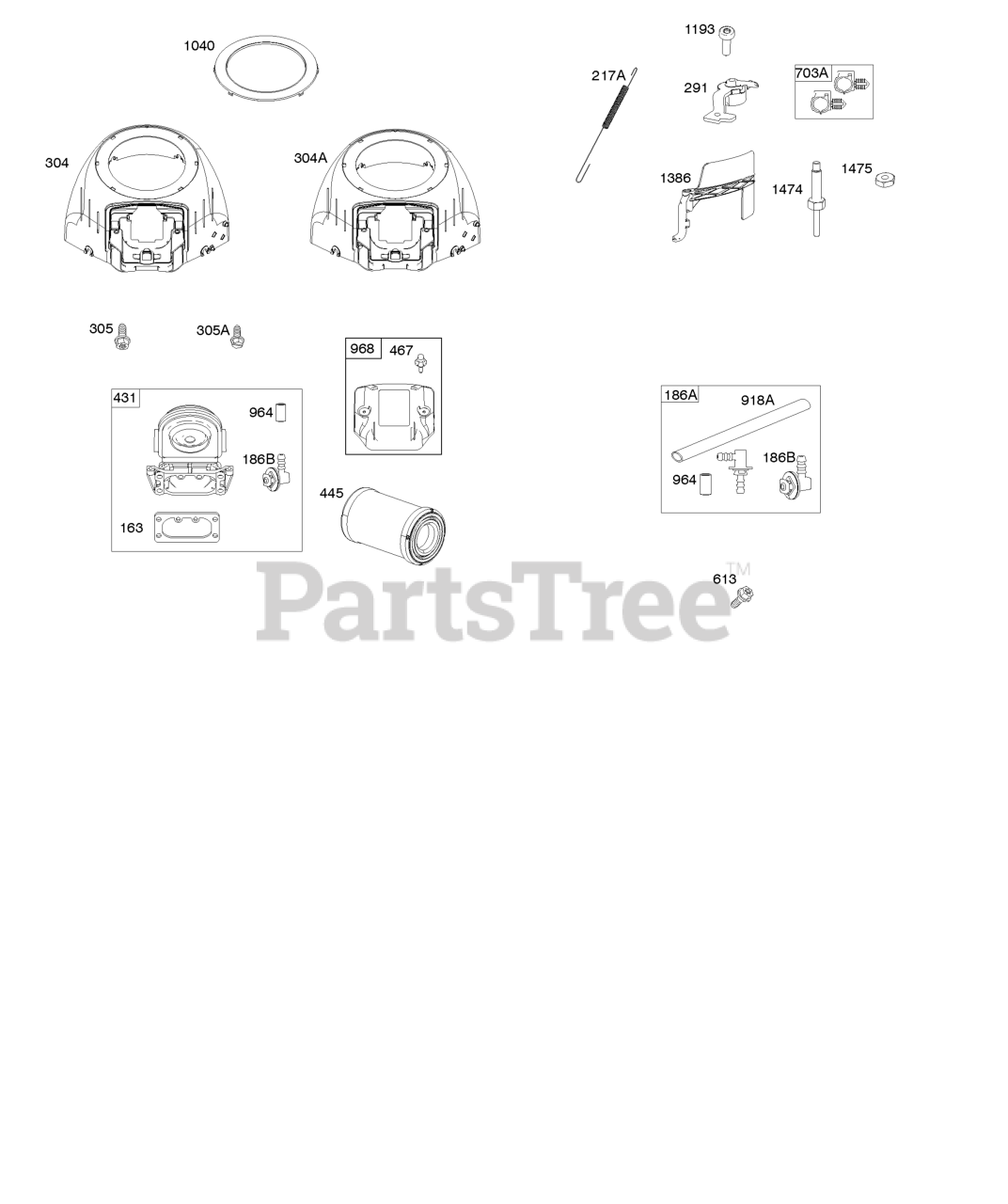

44R877-0001-G1 - Briggs & Stratton Vertical Engine Blower Housing, Air Cleaner Parts Diagram

Vertical Engine

Blower Housing, Air Cleaner Parts Diagram

  • Title

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 13

0

186A

Briggs & Stratton 799158

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, Qty 11

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, only 4 left!

0

217A

Briggs & Stratton 592585

SPRING, Choke Return

$11.99

$

In Stock, only 1 left!

0

291

Briggs & Stratton 592581

THERMOSTAT

$28.99

$

In Stock, Qty 6

0

304

Briggs & Stratton 591656

HOUSING, Blower

Note: (Black)

$128.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 591657

Housing-Blower

$139.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw
(Superseded to 594618)

Note: (Blower Housing) (21/32" Long)

$3.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 790690

SCREW

Note: (Blower Housing) (Blower Housing To Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 591661

Elbow-Intake

Note: (EVAP)

$70.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 591334

Filter-A/C Cartridge
(Superseded to 594201)

$15.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 790697

KNOB, Air Cleaner Cover

$7.99

$

In Stock, only 4 left!

0

613

Briggs & Stratton 690341

SCREW

Note: (Muffler)

$5.99

$

In Stock, only 3 left!

0

703A

Briggs & Stratton 592584

CLIP

Note: (EVAP)

$6.99

$

In Stock, only 1 left!

0

918A

Briggs & Stratton 799160

HOSE, Vacuum

Note: (Length 9.4 Inches)

$7.99

$

In Stock, only 1 left!

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

968

Briggs & Stratton 591658

COVER, Air Cleaner

Note: (Black)

$35.99

$

In Stock, Qty 18

0

1040

Briggs & Stratton 791237

PLATE, Trim

Note: (Black)

$31.99

$

In Stock, only 2 left!

0

1040

Briggs & Stratton 798585

PLATE, Trim

Note: (Orange)

$31.99

$

Usually ships in 2-12 days

0

1193

Briggs & Stratton 592577

SCREW

Note: (Thermostat)

$3.99

$

In Stock, only 1 left!

0

1386

Briggs & Stratton 592580

VANE, Air

$11.99

$

In Stock, Qty 20+

0

1474

Briggs & Stratton 592579

STUD

Note: Air Vane

$7.49

$

Usually ships in 2-12 days

0

1475

Briggs & Stratton 592578

NUT

Note: Air Vane

$4.99

$

Usually ships in 2-12 days

0
