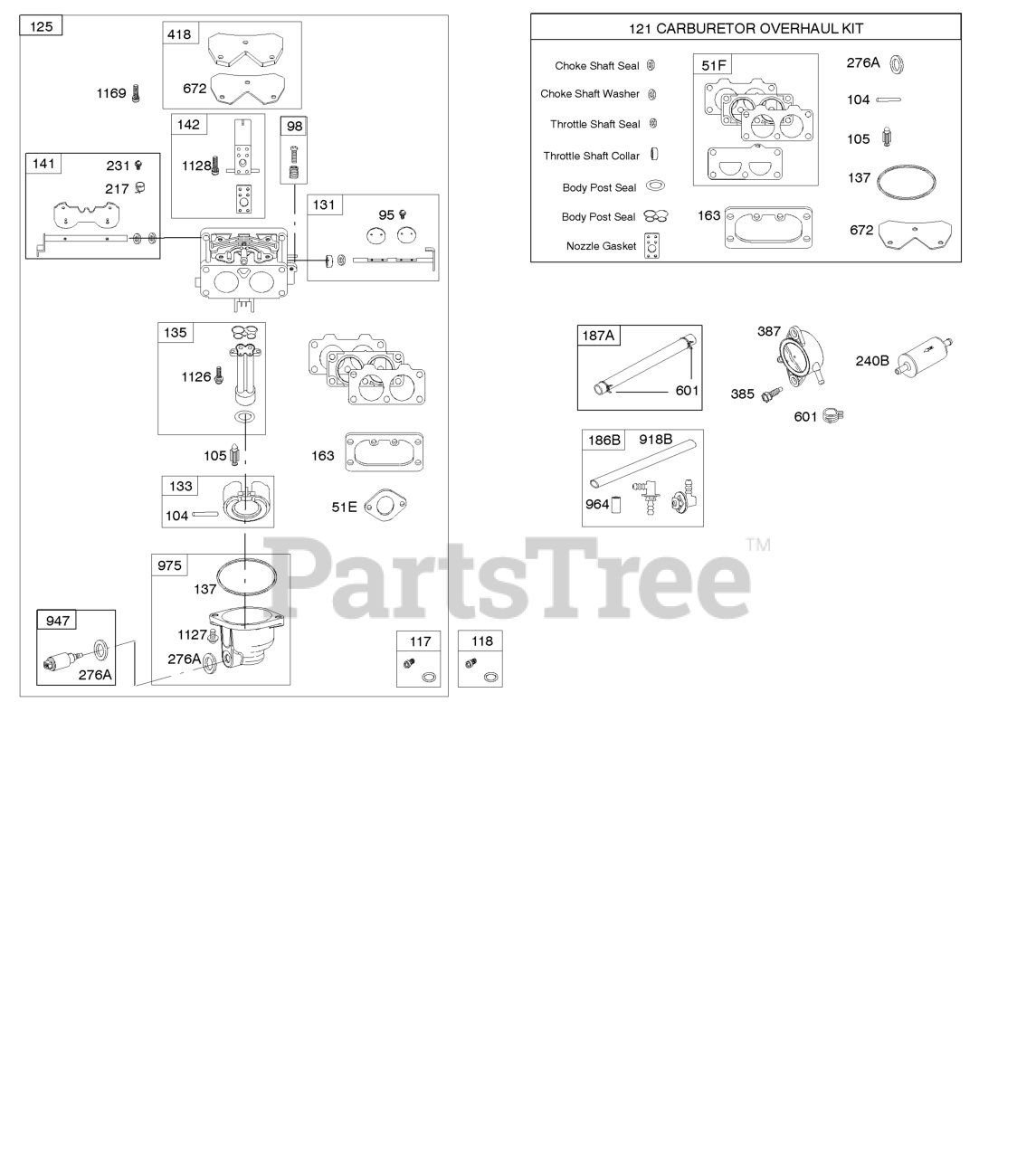

44P977-0111-G5 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit-Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Kit-Carburetor Overhaul Parts Diagram

  • Title

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51F

Briggs & Stratton 798759

SPACER, Carburetor

$15.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

117

Briggs & Stratton 842081

JET, Main

Note: (Standard) (QTY 1 Used For Left OR Right Jet)

$18.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 699733

Jet-Main

Note: (High Altitude) (QTY 1 Used For Left OR Right Jet)

$17.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 799132

KIT, Carburetor Overhaul

$96.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 799109

Carburetor
(Superseded to 595759)

$268.99

$

In Stock, only 2 left!

0

131

Briggs & Stratton 799113

KIT, Throttle Shaft

$55.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

FLOAT, Carburetor

$31.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 699729

TUBE, Fuel Transfer

$36.99

$

In Stock, Qty 16

0

137

Briggs & Stratton 690994

GASKET, Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 799112

KIT, Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 796871

NOZZLE, Carburetor

Note: (Standard)

$21.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 9

0

186B

Briggs & Stratton 799158

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, Qty 15

0

187A

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240B

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

$7.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump) (Fuel Pump Mounted To Blower Housing)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

418

Briggs & Stratton 795912

PLATE, Carburetor Cover

$14.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Green)

$3.99

$

In Stock, Qty 17

0

672

Briggs & Stratton 690234

Gasket-Carburetor Plate

$12.99

$

In Stock, Qty 19

0

918B

Briggs & Stratton 799160

HOSE, Vacuum

Note: Length 9.4 Inches

$7.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 798779

Solenoid-Fuel

$166.99

$

In Stock, only 1 left!

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 799114

BOWL, Float

$56.99

$

Usually ships in 2-12 days

0

1126

Briggs & Stratton 690991

SCREW

Note: (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1128

Briggs & Stratton 690990

SCREW

Note: (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days

0
