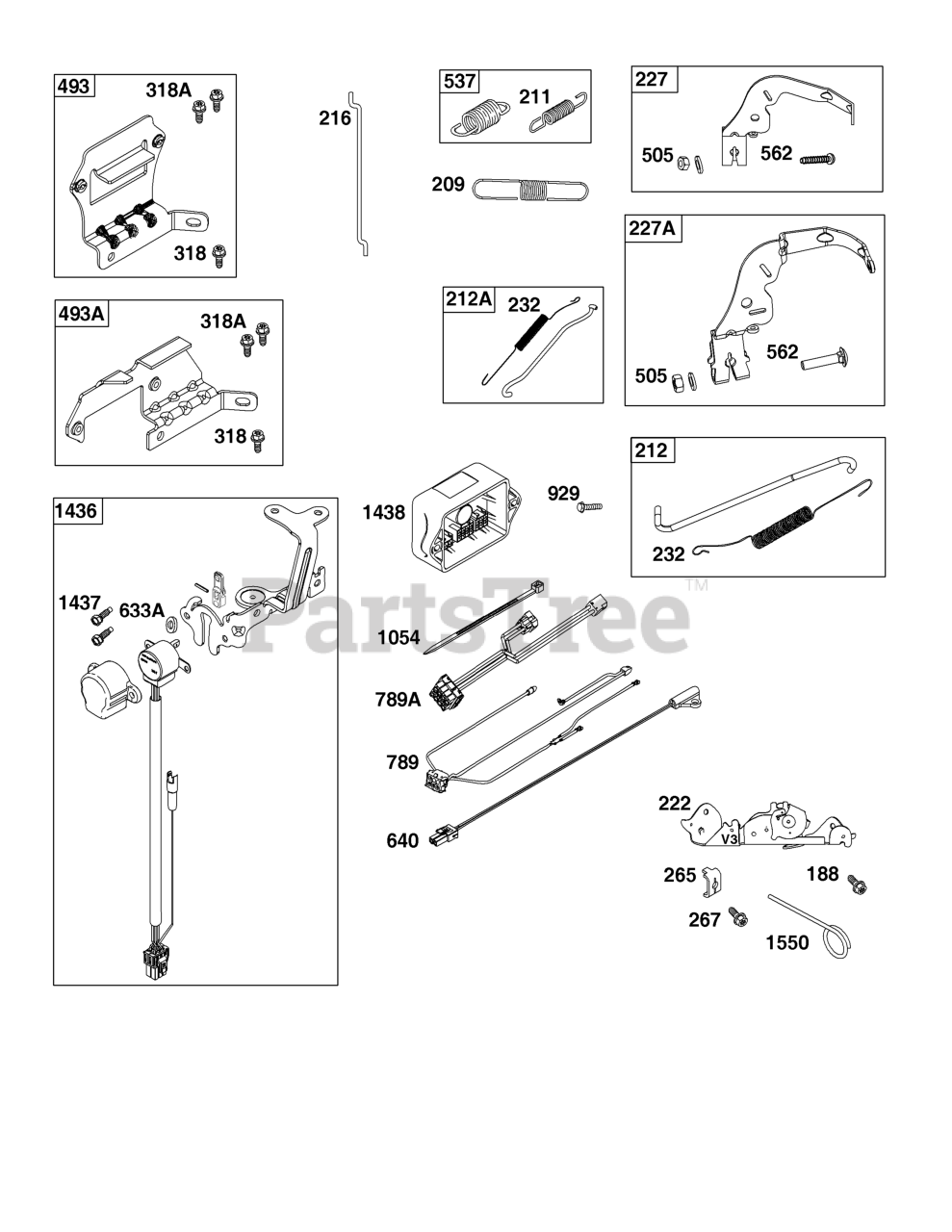

44N877-0015-B1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799170

SPRING, Governor

Note: Used After Code Date 18080500

$7.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 593724

SPRING, Governed Idle

$4.49

$

In Stock, only 1 left!

0

212

Briggs & Stratton 597778

LINK, Throttle

Note: Used After Code Date 18080500

$8.99

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 597429

LINK, Throttle

Note: Used Before Code Date 18080600

$7.49

$

In Stock, Qty 20+

0

216

Briggs & Stratton 796879

LINK, Choke

$7.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798856

LEVER, Governor Control

Note: Used Before Code Date 18080600

$23.99

$

In Stock, Qty 9

0

227A

Briggs & Stratton 593857

LEVER, Governor Control

Note: Used After Code Date 18080500

$39.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$9.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 691127

SCREW

Note: (Mounting Bracket)

$4.49

$

In Stock, Qty 13

0

318A

Briggs & Stratton 792629

SCREW

Note: (Mounting Bracket)

$3.49

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 797176

BRACKET, Mounting

Note: Used Before Code Date 18092700

$28.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 84001953

BRACKET, Mounting

Note: Used After Code Date 18092600

$9.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594911

KIT, Governor/Idle Spring

Note: Used Before Code Date 18080600

$19.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

SEAL, Choke/Throttle Shaft

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

640

Briggs & Stratton 796913

WIRE ASSEMBLY

Note: (Thermistor)

$33.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 797492

HARNESS, Wiring

$45.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 796914

HARNESS, Wiring

$39.99

$

Usually ships in 2-12 days

0

929

Briggs & Stratton 695239

SCREW

Note: (Choke Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1436

Briggs & Stratton 796918

MOTOR, Stepper/Bracket

$69.99

$

In Stock, only 2 left!

0

1437

Briggs & Stratton 699891

SCREW

Note: (Stepper/Bracket Motor)

$3.49

$

Usually ships in 2-12 days

0

1438

Briggs & Stratton 796352S

MODULE, Electronic Choke

$139.99

$

In Stock, only 3 left!

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

Usually ships in 2-12 days

0
