44M977-0938-G5 - Briggs & Stratton Vertical Engine Flywheel, Starter, Alternator, Regulator Parts Diagram

Vertical Engine

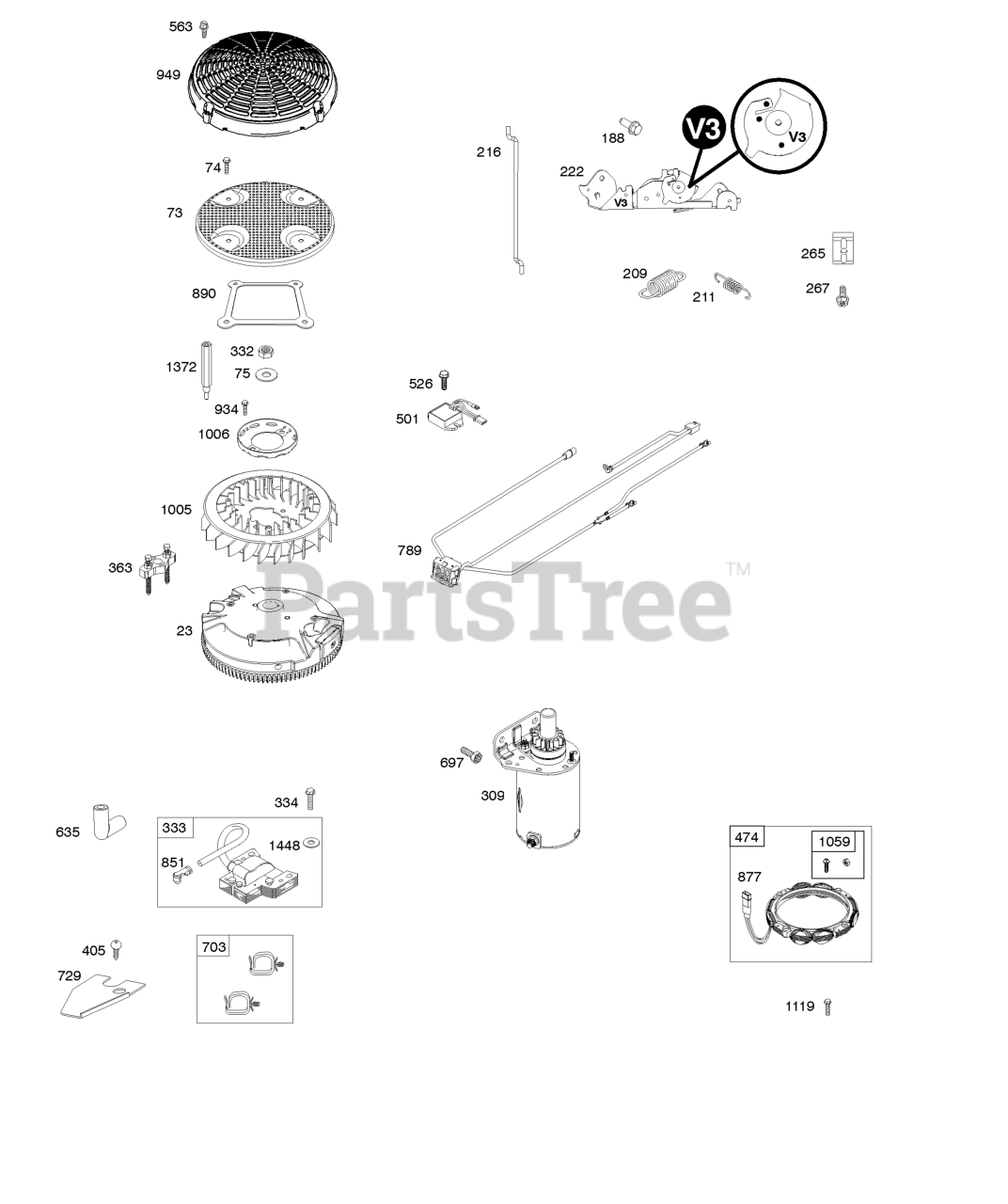

Flywheel, Starter, Alternator, Regulator Parts Diagram

  • Title

23

Briggs & Stratton 799090

Flywheel

$

$

Not available

73

Briggs & Stratton 799098

Screen-Rotating

$

$

Not available

74

Briggs & Stratton 799099

Screw

Note: (Rotating Screen)

$

$

Not available

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799171

Spring-Governor

$7.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Governed Idle

$4.99

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691022

LINK, Choke

Note: (Manual Choke)

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 798916

BRACKET, Control

Note: (V3 Manual Choke)

$39.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 590476

MOTOR, Starter

$177.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 799651

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 697820

SCREW

Note: (Back Plate)

$4.49

$

In Stock, only 3 left!

0

474

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 797375

Regulator
(Superseded to 845907)

Note: (10-16 Amp Regulated)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 691108

SCREW

Note: (Regulator) (10 Amp Circuit)

$3.49

$

In Stock, Qty 20+

0

563

Briggs & Stratton 799360

SCREW

Note: (Debris Screen Guard)

$3.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 591909

SCREW

Note: (Drive Cap)

$2.99

$

In Stock, Qty 12

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 797454

CLIP, Wire
(Superseded to 593826)

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591392

HARNESS, Wiring

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used After Code Date 12042200

$35.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 797424

Harness-Wiring
(Superseded to 591392)

Note: (6 Pin, #1 Side Regulator. Without EFM. Without Oil Pressure Switch.) Used Before Code Date 12042300

$35.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 399916

Wire/Connector-Alternator

$12.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 799100

Bracket-Support

$14.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 791680

SCREW

Note: (Fan Retainer)

$3.99

$

In Stock, Qty 6

0

949

Briggs & Stratton 799357

GUARD, Debris Screen

$45.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 791236

FAN, Flywheel

$35.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 798750

Retainer-Fan

$8.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1372

Briggs & Stratton 799101

Stud

Note: (Rotating Screen)

$

$

Not available

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0
