44L977-0001-G5 - Briggs & Stratton Vertical Engine Flywheel, Ignition, Electric Starter, Alternator Parts Diagram

Vertical Engine

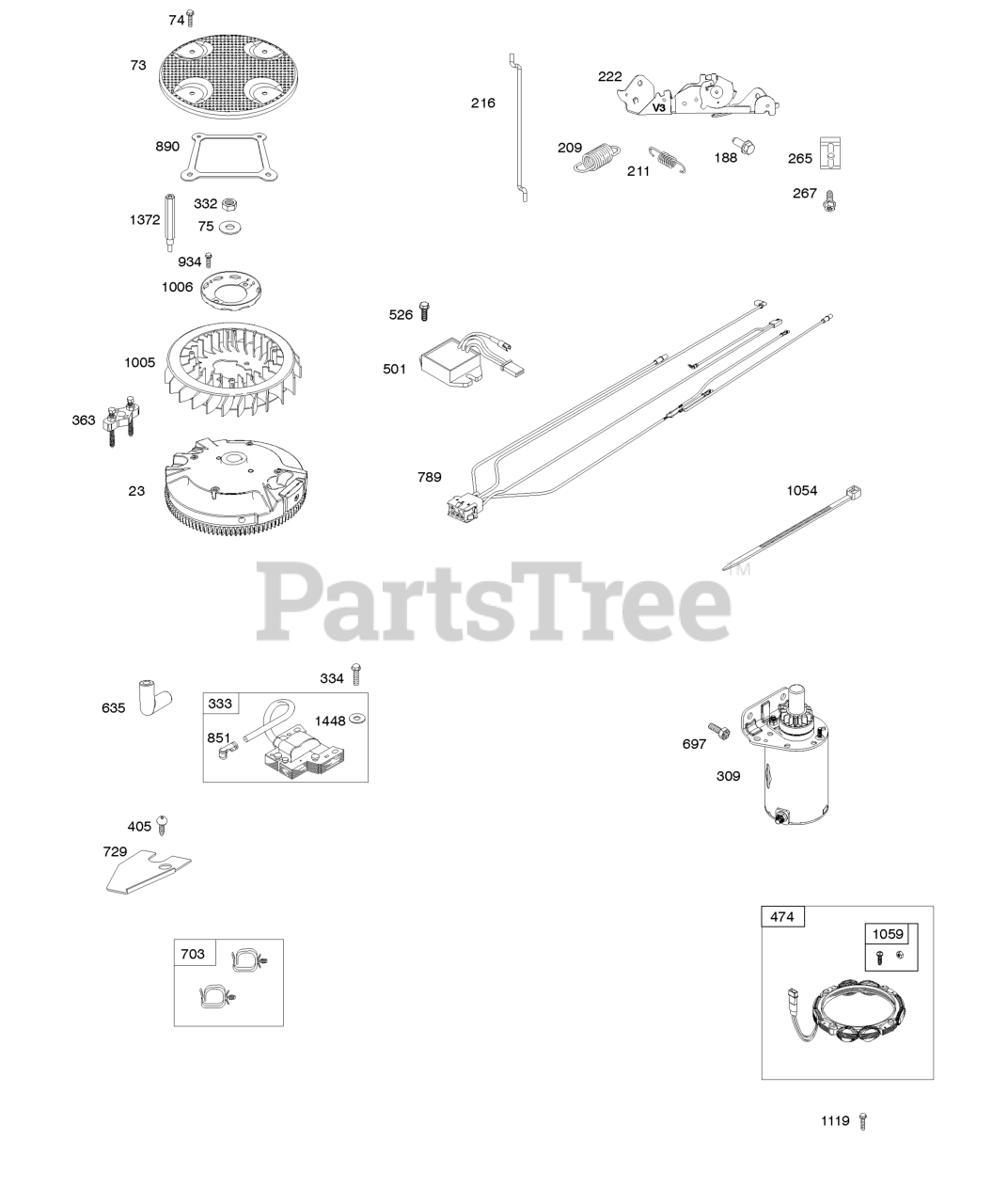

Flywheel, Ignition, Electric Starter, Alternator Parts Diagram

  • Title

23

Briggs & Stratton 799090

Flywheel

$

$

Not available

73

Briggs & Stratton 799098

Screen-Rotating

$

$

Not available

74

Briggs & Stratton 799099

Screw

Note: (Rotating Screen)

$

$

Not available

75

Briggs & Stratton 691056

WASHER

Note: (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799176

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 796879

LINK, Choke

$7.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 798916

BRACKET, Control

$39.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 590476

MOTOR, Starter

$177.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 691059

NUT

Note: (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 799651

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 697820

SCREW

Note: (Back Plate)

$4.49

$

In Stock, only 3 left!

0

474

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 845907

REGULATOR

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 691108

SCREW

Note: (Regulator)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 591909

SCREW

Note: (Drive Cap)

$2.99

$

In Stock, Qty 10

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 797454

CLIP, Wire
(Superseded to 593826)

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 797492

HARNESS, Wiring

$45.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

890

Briggs & Stratton 799100

Bracket-Support

$14.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 592604

Screw

Note: (Fan Retainer)

$4.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 791236

FAN, Flywheel

$35.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 798750

Retainer-Fan

$8.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1372

Briggs & Stratton 799101

Stud

Note: (Rotating Screen)

$

$

Not available

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0
