44C777-0009-B5 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

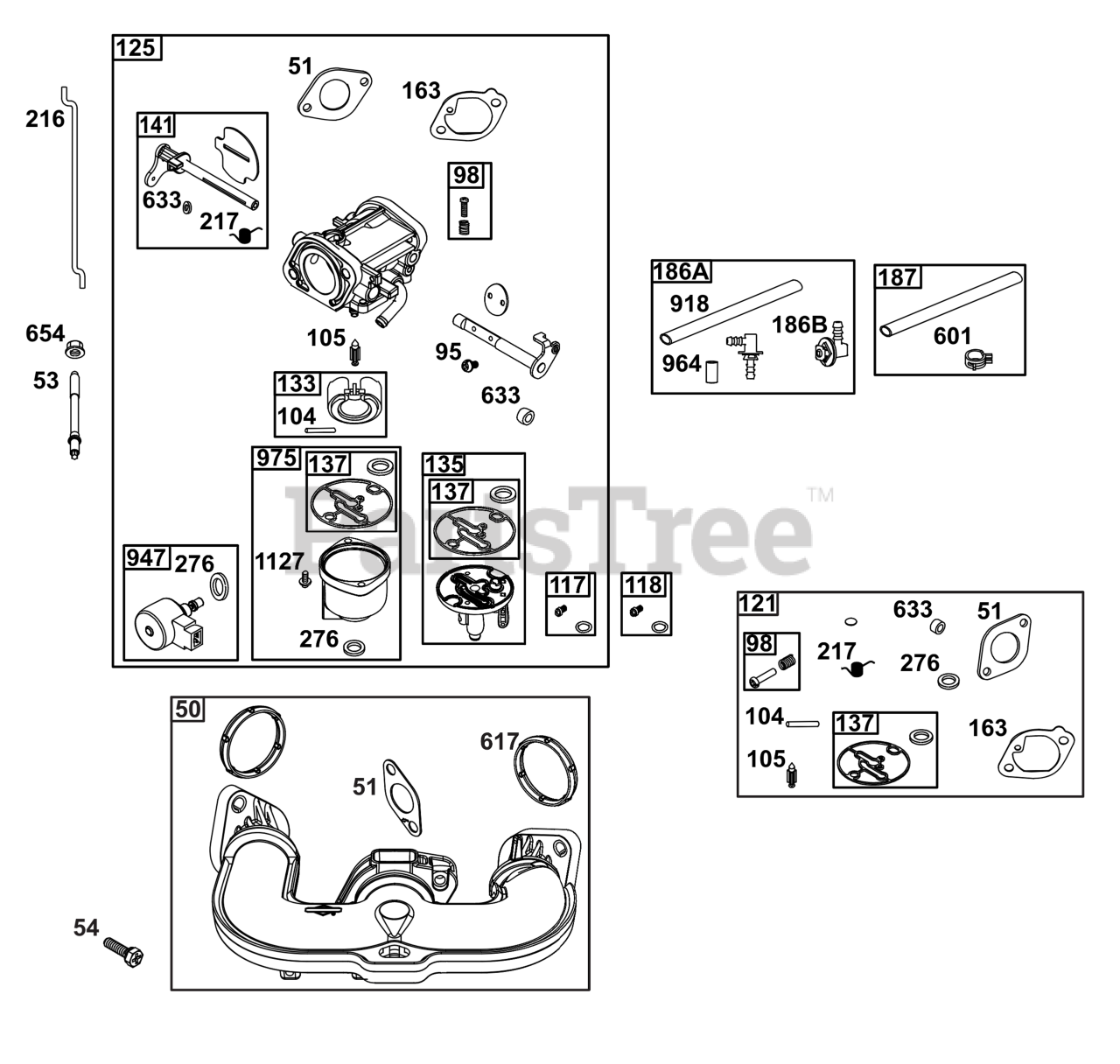

Carburetor Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

54

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, Qty 17

0

117

Briggs & Stratton 842082

JET, Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842081

JET, Main

Note: (High Altitude)

$18.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594212

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$52.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 596102

CARBURETOR

$268.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 591701

TUBE, Fuel Transfer

$38.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 594211

KIT, Choke Shaft

$34.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 594203

GASKET, Intake

$4.49

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 799158

CONNECTOR, Hose

$10.99

$

In Stock, Qty 15

0

186B

CONNECTOR, Hose

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

187

LINE, Fuel

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

216

Briggs & Stratton 796879

LINK, Choke

$7.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

601

CLAMP, Hose

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

918

HOSE, Vacuum

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

947

Briggs & Stratton JUMPTO947

SOLENOID, Fuel

Note: (Part information located in Fuel Supply Group.)

$

$

Currently unavailable

964

CAP, Connector

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

Briggs & Stratton 591699

BOWL, Float

$64.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl To Carburetor Body)

$4.49

$

In Stock, Qty 20+

0
