446 s - Shindaiwa Chainsaw (EPA Version) Crankcase Parts Diagram

Chainsaw (EPA Version)

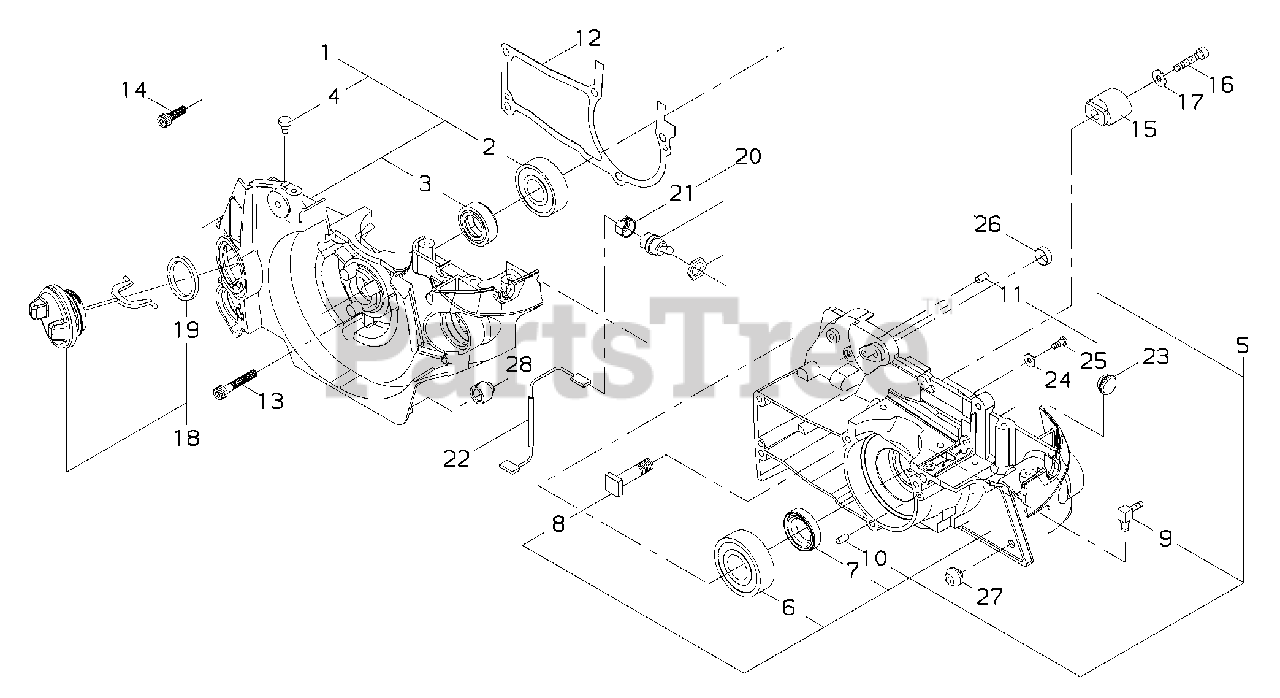

Crankcase Parts Diagram

  • Title

1

Echo 39312-21010

CRANKCASE ASSY - LEFT
(Superseded to P021026960)

Note: Includes ITEMS 1-4

$265.99

$

Usually ships in 2-4 days

0

2

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

3

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 1 left!

0

4

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 39312-21020

CRANKCASE ASSY - RIGHT
(Superseded to P021036511)

Note: Includes ITEMS 5-11

$67.99

$

Usually ships in 2-4 days

0

6

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

7

Echo 22182-21551

SEAL, OIL
(Superseded to V508000060)

$4.99

$

Usually ships in 2-4 days

0

8

Echo 22160-21520

STUD, GUIDE BAR
(Superseded to V225000150)

$2.99

$

In Stock, only 2 left!

0

9

Echo 39010-11020

PULSE JOINT
(Superseded to 43723914730)

$7.99

$

Usually ships in 2-4 days

0

10

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

11

Echo 12492-40110

PIN - LOCATING
(Superseded to V629000000)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 39311-21320

GASKET, CRANKCASE
(Superseded to V102000160)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 22169-21910

BOLT - 5X35
(Superseded to V203001450)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 01020-05180

SCREW - 5X18
(Superseded to 90010505018)

$1.49

$

In Stock, only 2 left!

0

15

Echo 22160-52511

CATCHER, CHAIN
(Superseded to C310000080)

$2.49

$

In Stock, only 2 left!

0

16

Echo 22155-12190

BOLT - 5X25
(Superseded to V203001460)

$1.99

$

In Stock, only 3 left!

0

17

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 39311-21030

CAP ASSY
(Superseded to C020000040)

Note: Includes ITEMS 18-19

$9.49

$

In Stock, Qty 7

0

19

Echo 38010-32271

GASKET, CAP
(Superseded to V107000090)

$4.99

$

In Stock, only 2 left!

0

20

Echo 39311-21370

IGNITION SWITCH ASSY
(Superseded to P021034590)

Note: Includes ITEMS 20-21

$14.99

$

In Stock, only 1 left!

0

21

Echo 39311-21380

CAP

$

$

Not available

22

Echo 14352-01300

LEAD - IGNITION
(Superseded to V485002030)

$2.99

$

In Stock, only 1 left!

0

23

Echo 22160-22220

PLUG
(Superseded to V141000110)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 01613-04080

WASHER - 4
(Superseded to 90060300004)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 22173-56150

SCREW - 4X7
(Superseded to V252000470)

$0.99

$

In Stock, Qty 8

0

26

Echo 39311-21360

RING
(Superseded to V355000460)

$0.99

$

In Stock, only 1 left!

0

27

Echo 22182-21621

SUPPORT C
(Superseded to V420002770)

$3.99

$

Usually ships in 2-4 days

0

28

Echo 39311-33330

SUPPORT
(Superseded to V420002780)

$0.99

$

In Stock, Qty 10

0
