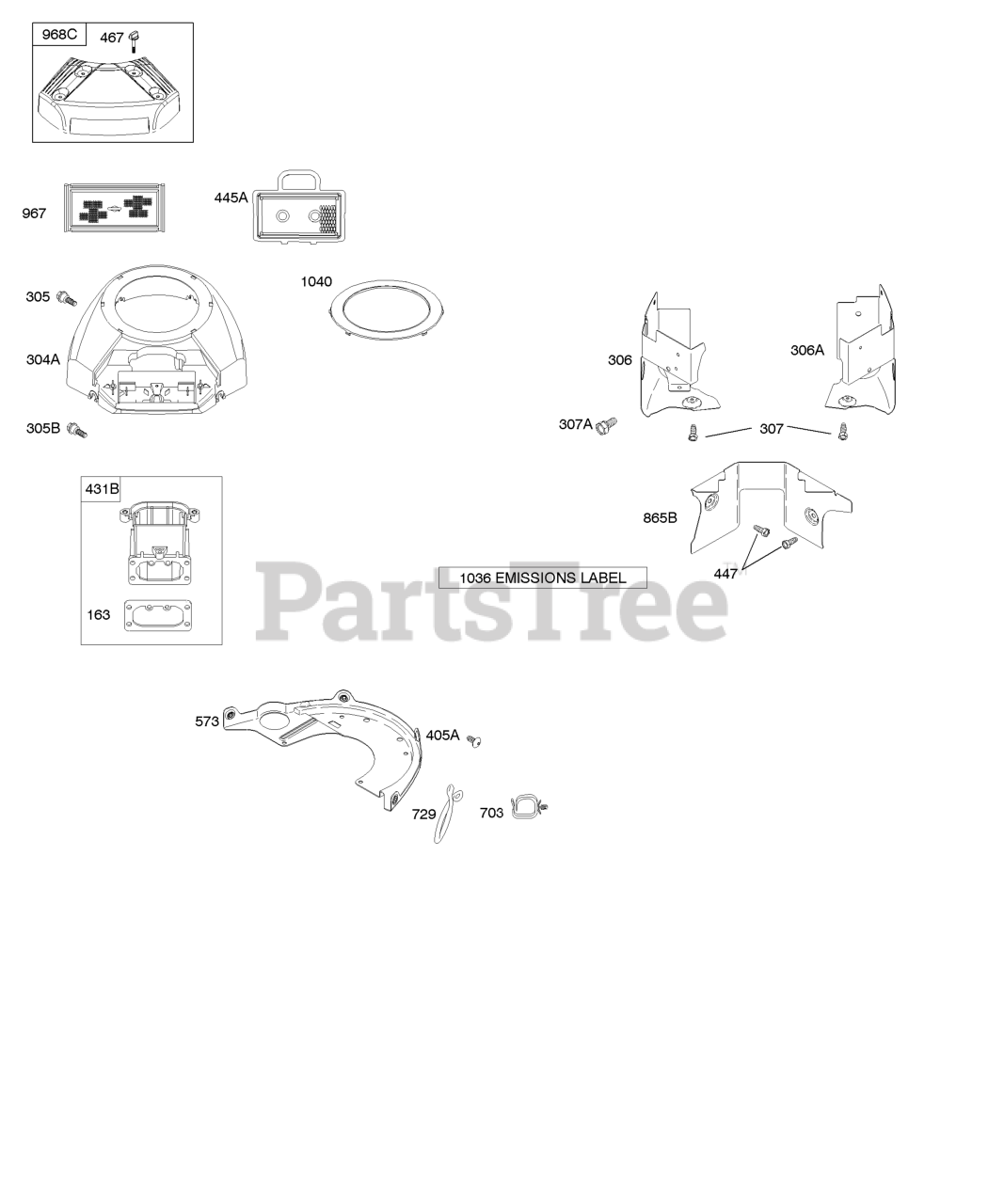

445977-1092-B1 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing Parts Diagram

  • Title

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 9

0

304A

Briggs & Stratton 797406

Housing-Blower
(Superseded to 799954)

Note: (Black)

$209.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw
(Superseded to 594618)

Note: (Blower Housing) (21/32" Long)

$3.99

$

In Stock, Qty 20+

0

305B

Briggs & Stratton 790690

SCREW

Note: (Blower Housing) (Blower Housing To Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 796852

SHIELD, Cylinder
(Superseded to 84002166)

Note: (Cylinder #1) Used After Code Date 09081100

$37.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 691012

Shield-Cylinder
(Superseded to 796852)

Note: (Cylinder #1) Used Before Code Date 09081200

$37.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 793205

Shield-Cylinder
(Superseded to 591666)

Note: (Cylinder #2)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

307A

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 697820

SCREW

Note: (Back Plate) (Mounting)

$4.49

$

In Stock, only 3 left!

0

431B

Briggs & Stratton 790816

Elbow-Intake
(Superseded to 798859)

$

$

Not available

445A

Briggs & Stratton 792101

Filter-Air Cleaner Cartridge

$21.99

$

In Stock, only 1 left!

0

447

Briggs & Stratton 691003

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 9

0

467

Briggs & Stratton 691008

Knob-Air Cleaner Cover

Note: (1 1/2" Long)

$13.99

$

In Stock, only 2 left!

0

573

Briggs & Stratton 790444

Plate-Back
(Superseded to 594902)

$59.99

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

Cover-Air Guide

Note: (Valley)

$27.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 273638S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 20+

0

968C

Briggs & Stratton 791242

Cover-Air Cleaner

$

$

Not available

1036

Label-Emissions

$

$

Not available

1040

Briggs & Stratton 791237

PLATE, Trim

$31.99

$

In Stock, only 2 left!

0
