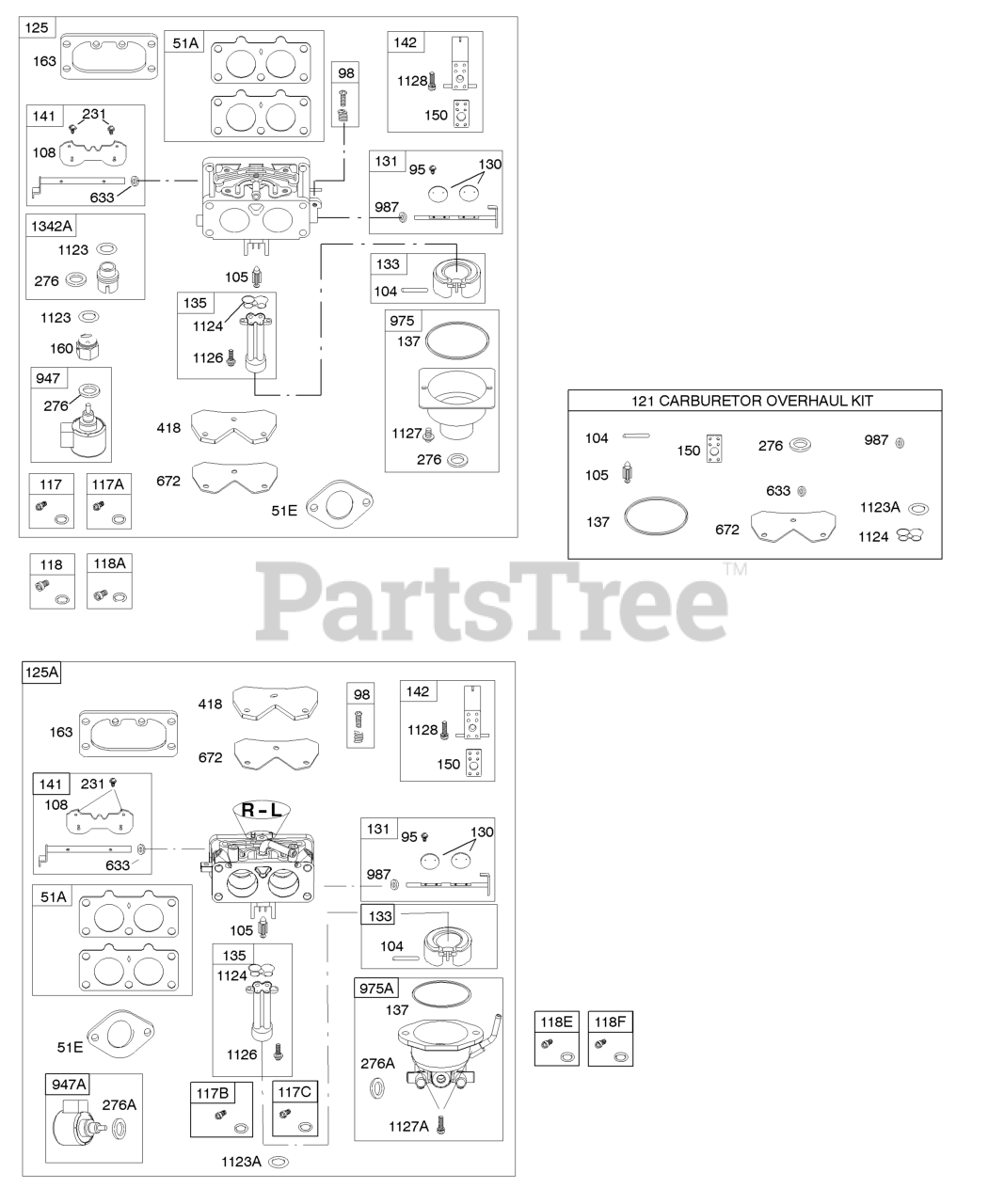

445777-0315-E1 - Briggs & Stratton Vertical Engine Carburetor, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Kit - Carburetor Overhaul Parts Diagram

  • Title

51A

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

$4.99

$

In Stock, Qty 8

0

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

Note: Used After Code Date 03102200

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

VALVE, Float Needle

Note: Used After Code Date 03102200

$15.99

$

In Stock, Qty 17

0

108

Briggs & Stratton 699723

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 699732

Jet-Main

Note: (Standard) (Left)(Nikki) Used After Code Date 03102200 Used Before Code Date 05101900

$17.99

$

In Stock, Qty 7

0

117A

Briggs & Stratton 699733

Jet-Main

Note: (Standard) (Right)(Nikki) Used After Code Date 03102200 Used Before Code Date 05101900

$17.99

$

In Stock, only 1 left!

0

117B

Briggs & Stratton 791501

Jet-Main

Note: (Standard) (Left)(Nikki) Used After Code Date 05101800

$17.99

$

In Stock, Qty 7

0

117C

Briggs & Stratton 791502

JET, Main

Note: (Standard) (Right)(Nikki) Used After Code Date 05101800

$18.99

$

In Stock, Qty 7

0

118

Briggs & Stratton 790890

Jet-Main

Note: (High Altitude) (Left)(Nikki) Used After Code Date 03102200 Used Before Code Date 05101900

$19.99

$

In Stock, only 1 left!

0

118A

Briggs & Stratton 699458

Jet-Main

Note: (High Altitude) (Right)(Nikki) Used After Code Date 03102200 Used Before Code Date 05101900

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 792455

Kit-Carb Overhaul
(Superseded to 797890)

Note: Used After Code Date 03102200

$95.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 699709

Carburetor
(Superseded to 791230)

Note: (Two Main Jets) Used After Code Date 03102200 Used Before Code Date 05101900

$205.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 791230

Carburetor

Note: (Two Main Jets) Used After Code Date 05101800

$205.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 690993

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499805

Kit-Throttle Shaft

$53.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

FLOAT, Carburetor

Note: Used After Code Date 03102200

$31.99

$

In Stock, only 1 left!

0

135

Briggs & Stratton 699729

TUBE, Fuel Transfer

Note: Used After Code Date 03102200

$36.99

$

In Stock, Qty 16

0

137

Briggs & Stratton 690994

GASKET, Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 699722

Kit-Choke Shaft
(Superseded to 796228)

$43.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: (Standard) Used After Code Date 03102200

$35.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

$5.99

$

In Stock, only 3 left!

0

160

Briggs & Stratton 699727

Retainer-Solenoid

Note: Used After Code Date 03102200 Used Before Code Date 05101900

$10.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 5

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690997

Washer-Sealing

$7.99

$

In Stock, Qty 6

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

418

Briggs & Stratton 690999

Plate-Carburetor Cover
(Superseded to 795912)

$14.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

In Stock, only 2 left!

0

672

Briggs & Stratton 690234

Gasket-Carburetor Plate

$12.99

$

In Stock, Qty 18

0

947

Briggs & Stratton 699728

Solenoid-Fuel

Note: Used After Code Date 03102200 Used Before Code Date 05101900

$185.99

$

In Stock, only 1 left!

0

947A

Briggs & Stratton 841546

Solenoid-Fuel

Note: Used After Code Date 05101800

$166.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 499810

Bowl-Float

Note: Used Before Code Date 05101900

$29.99

$

Usually ships in 2-12 days

0

975A

Briggs & Stratton 791232

Bowl-Float
(Superseded to 798778)

Note: Used After Code Date 05101800

$179.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

SEAL, Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1123

Briggs & Stratton 699725

Seal-O Ring

Note: (Solenoid Retainer) Used After Code Date 03102200 Used Before Code Date 05101900

$7.99

$

In Stock, only 2 left!

0

1123A

Briggs & Stratton 841653

SEAL, O-Ring

Note: (Solenoid Retainer) Used After Code Date 05101800

$14.99

$

In Stock, Qty 16

0

1124

Briggs & Stratton 690988

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$7.99

$

In Stock, Qty 20+

0

1126

Briggs & Stratton 690991

SCREW

Note: (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1127A

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body) Used After Code Date 05101800

$4.49

$

In Stock, Qty 20+

0

1128

Briggs & Stratton 690990

SCREW

Note: (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0

1342A

Briggs & Stratton 699731

Extension-Fuel Transfer Tube

Note: Used After Code Date 03102200 Used Before Code Date 05101900

$13.99

$

Usually ships in 2-12 days

0
