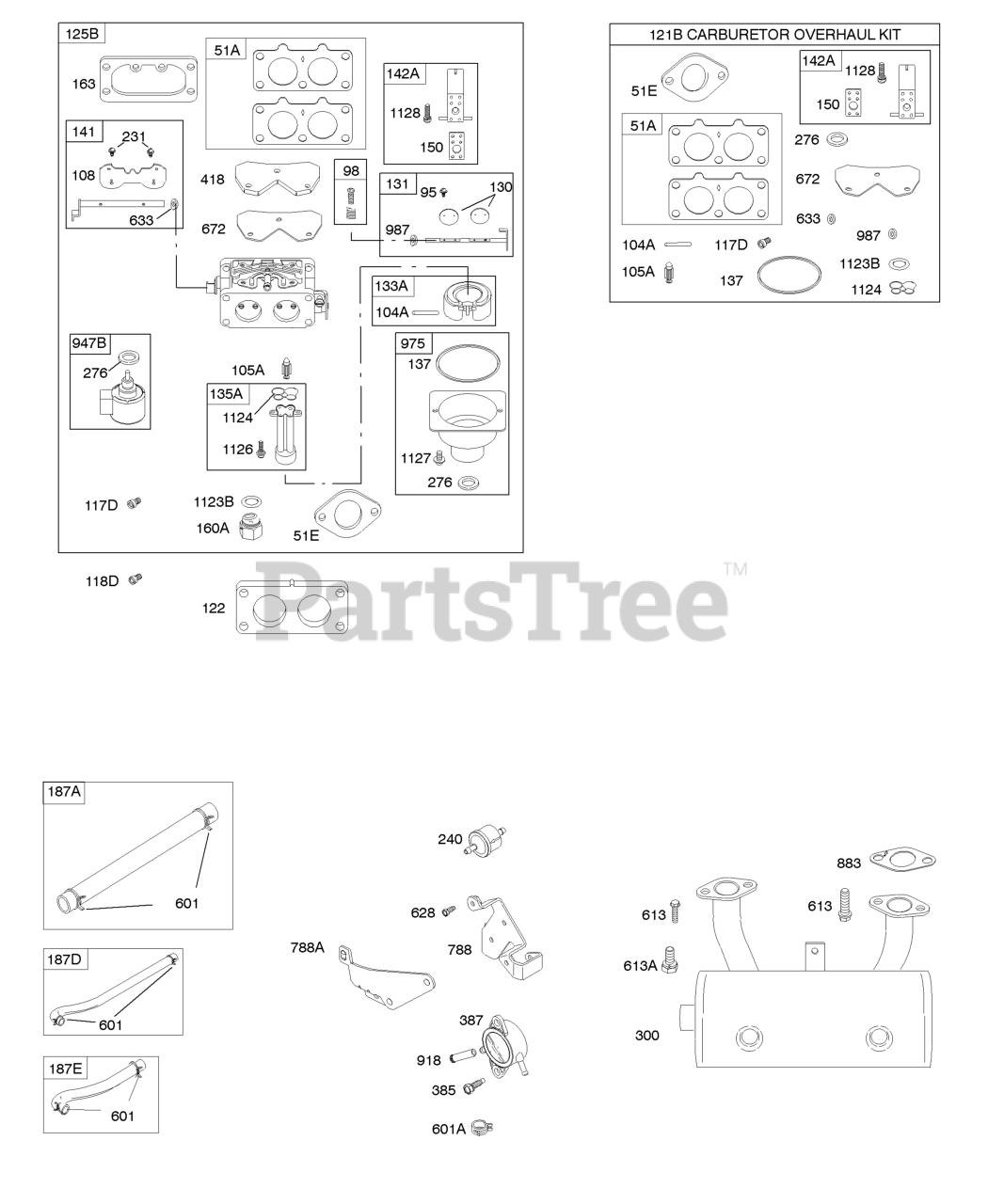

445777-0263-E1 - Briggs & Stratton Vertical Engine Carburetor, Exhaust System, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Exhaust System, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title

51A

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

$4.99

$

In Stock, Qty 11

0

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 690984

Pin-Float Hinge
(Superseded to 694918)

Note: Used Before Code Date 03102300

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 690985

Valve-Float Needle
(Superseded to 797410)

Note: Used Before Code Date 03102300

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 699723

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117D

Briggs & Stratton 690232

Jet-Main

Note: (Standard)

$24.99

$

In Stock, only 2 left!

0

118D

Briggs & Stratton 690989

Jet-Main

Note: (High Altitude) Used Before Code Date 03102300

$24.99

$

Usually ships in 2-12 days

0

121B

Briggs & Stratton 499811

Kit-Carb Overhaul
(Superseded to 797890)

Note: Used Before Code Date 03102300

$95.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690952

Spacer-Carburetor

Note: Used Before Code Date 00102000

$10.99

$

In Stock, only 1 left!

0

125B

Carburetor

Note: (Order Carburetor 791230) Used Before Code Date 03102300

$

$

Not available

130

Briggs & Stratton 690993

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499805

Kit-Throttle Shaft

$53.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 499806

Float-Carburetor
(Superseded to 699724)

Note: Used Before Code Date 03102300

$31.99

$

In Stock, only 2 left!

0

135A

Briggs & Stratton 499803

Tube-Fuel Transfer

Note: Used Before Code Date 03102300

$15.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 690994

GASKET, Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 699722

Kit-Choke Shaft
(Superseded to 796228)

$43.99

$

Usually ships in 2-12 days

0

142A

Briggs & Stratton 499808

Nozzle-Carburetor

Note: (Standard) Used Before Code Date 03102300

$39.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

$5.99

$

In Stock, only 2 left!

0

160A

Briggs & Stratton 690996

Retainer-Solenoid

Note: Used Before Code Date 03102300

$29.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 15

0

187A

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

187E

Briggs & Stratton 791801

Line-Fuel
(Superseded to 791744)

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 690997

Washer-Sealing

$7.99

$

In Stock, Qty 6

0

385

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

418

Briggs & Stratton 690999

Plate-Carburetor Cover
(Superseded to 795912)

$14.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

628

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

In Stock, only 1 left!

0

672

Briggs & Stratton 690234

Gasket-Carburetor Plate

$12.99

$

In Stock, Qty 20+

0

788

Briggs & Stratton 793145

Bracket-Fuel Pump

Note: Used After Code Date 06072700

$20.99

$

Usually ships in 2-12 days

0

788A

Briggs & Stratton 691039

Bracket-Fuel Pump

Note: Used Before Code Date 06072800

$24.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

918

Briggs & Stratton 694000

Hose-Vacuum

Note: Used Before Code Date 06072800

$4.99

$

In Stock, Qty 20+

0

918

Briggs & Stratton 793147

Hose-Vacuum

Note: Used After Code Date 06072700

$7.99

$

In Stock, Qty 19

0

947B

Briggs & Stratton 499809

Solenoid-Fuel
(Superseded to 791230)

Note: Used Before Code Date 03102300

$205.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 499810

Bowl-Float

Note: Used Before Code Date 05101900

$29.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

SEAL, Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1123B

Briggs & Stratton 690987

Seal-O Ring

Note: (Solenoid Retainer) Used Before Code Date 03102300

$9.49

$

In Stock, only 2 left!

0

1124

Briggs & Stratton 690988

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$7.99

$

In Stock, Qty 20+

0

1126

Briggs & Stratton 690991

SCREW

Note: (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1128

Briggs & Stratton 690990

SCREW

Note: (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0
