44520 (2613) - Toro Debris Blower (SN: 099000001 - 099999999) (1999) WHEEL MOUNT ASSEMBLY Parts Diagram

Debris Blower

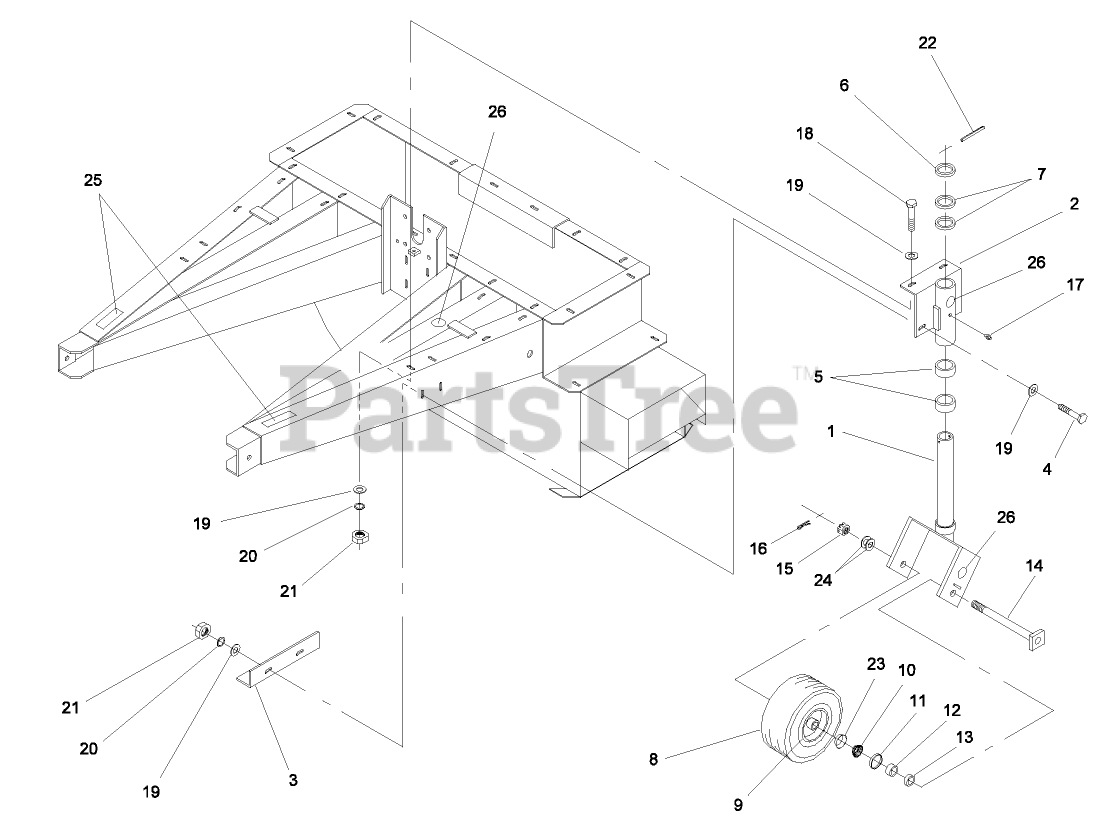

WHEEL MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 61-005-0051

WHEEL YOKE WA

$

$

Currently unavailable

2

Toro 61-005-0041

WHEEL PIVOT ASY R

$

$

Currently unavailable

3

Toro 61-004-0501

BACKING PLATE

$

$

Currently unavailable

4

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 61-004-0491

BOTTOM YOKE SPACER

$

$

Currently unavailable

6

Toro 01-168-3014

BUSHING

$

$

Currently unavailable

7

Toro 01-168-3010

MACHINERY BUSHING

$

$

Not available

8

Toro 01-269-0250

TIRE ONLY

$

$

Currently unavailable

9

Toro 01-269-0260

WHEEL ONLY

$

$

Currently unavailable

10

Toro 254-78

BEARING-CONE

$13.99

$

In Stock, Qty 17

0

11

Toro 01-405-0320

Seal
(Superseded to 1-633580)

$9.49

$

In Stock, Qty 8

0

12

Toro 01-269-0060

SPACER-AXLE

$

$

Not available

13

Toro 61-004-0951

WHEEL SPACER

$

$

Currently unavailable

14

Toro 61-005-0151

YOKE AXLE ASSY

$

$

Currently unavailable

15

Toro 01-190-1210

NUT-SLOTTED

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

17

Toro 01-215-0050

ZERK
(Superseded to 302-63)

$2.99

$

In Stock, Qty 19

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

21

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

23

Toro 01-103-0130

Bearing Race
(Superseded to 254-79)

$7.49

$

In Stock, Qty 12

0

24

Toro 01-168-1214

MACHINERY BUSHING

$

$

Not available

25

Toro 75-5190

DECAL- NO RIDERS
(Superseded to 93-6689)

$13.99

$

Usually ships in 3-6 days

0

26

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0
