445 e - Husqvarna Chainsaw (2011-07) FUEL TANK Parts Diagram

Chainsaw

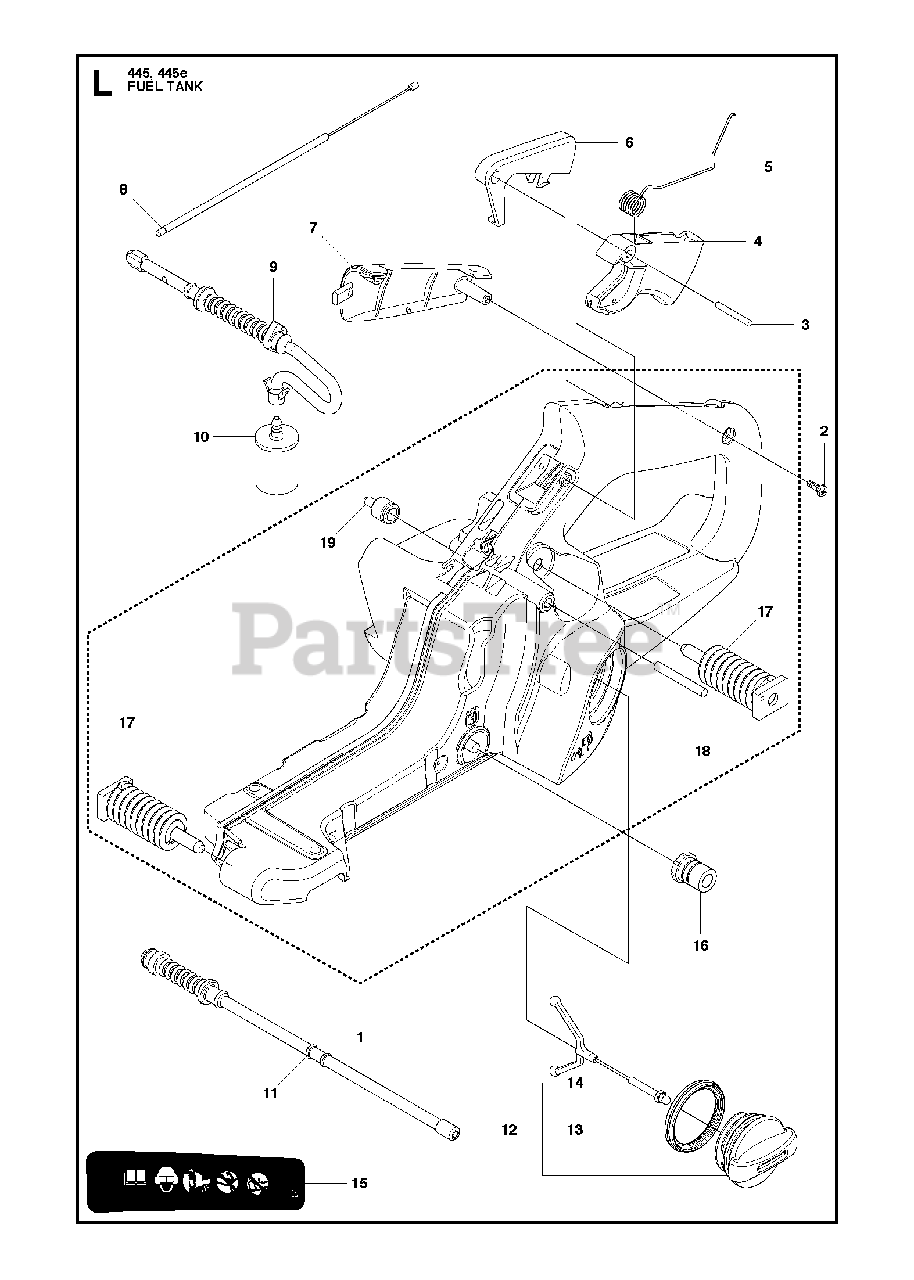

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 525862101

ASSY FUEL TANK
(Superseded to 537437906)

$40.99

$

In Stock, only 2 left!

0

2

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 14

0

3

Husqvarna 720182520

PIN

$2.99

$

In Stock, Qty 10

0

4

Husqvarna 544099701

THROTTLE TRIGGER

$6.99

$

In Stock, only 3 left!

0

5

Husqvarna 544099901

SPRING

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 544099801

THROTTLE LOCKOUT

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 504122201

HANDLE INSERT
(Superseded to 531246501)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 504098801

THROTTLE CABLE ASSY

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544128601

FUEL HOSE

$

$

Not available

10

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

11

Husqvarna 544129701

RP RETURN HOSE
(Superseded to 577535101)

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544111201

TANK CAP ASSY
(Superseded to 544111203)

$6.99

$

In Stock, Qty 19

0

13

Husqvarna 537215001

SEALING

Note: . 12

$8.99

$

In Stock, only 2 left!

0

14

Husqvarna 503578901

TANK LOCK

Note: . 12

$9.99

$

In Stock, Qty 15

0

15

Husqvarna 544375001

LABEL

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 544101201

ANTI VIBRATIONS ELEMENT

Note: . 1

$14.99

$

In Stock, only 2 left!

0

18

Husqvarna 721126339

GROOVED PIN

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 1

$17.99

$

In Stock, Qty 6

0
