445 e - Husqvarna Chainsaw (2007-09) Air Filter/Intake/Carb Parts Diagram

Chainsaw

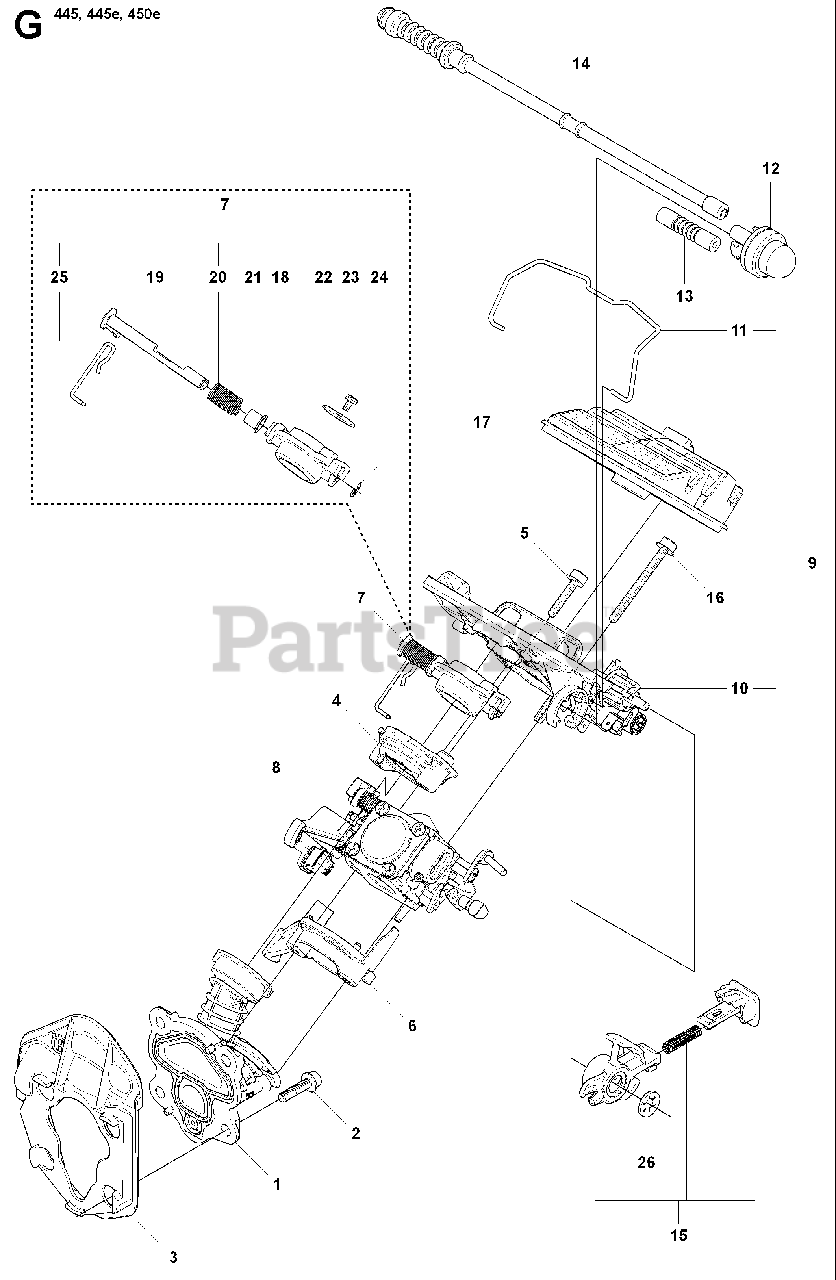

Air Filter/Intake/Carb Parts Diagram

  • Title

1

Husqvarna 544082301

INLET PIPE ASSY

$43.99

$

In Stock, only 1 left!

0

2

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 544083801

INTERMEDIATE WALL

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 544084001

FLANGE

$4.99

$

In Stock, only 3 left!

0

5

Husqvarna 503210725

SCREW

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 544084101

FLANGE

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544148201

THROTTLE

$31.99

$

In Stock, only 1 left!

0

8

Husqvarna 544147801

%CARBURETOR
(Superseded to 505453601)

$

$

Not available

9

Husqvarna 544080501

%FILTER HOLDER ASSY
(Superseded to 505514701)

$13.99

$

In Stock, only 2 left!

0

10

Husqvarna 501981401

$

$

Currently unavailable

11

Husqvarna 544231401

SHACKLE

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503936601

AIR PURGE BUBBLE

Note: Air purge

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537425801

HOSE
(Superseded to 581756140)

Note: Sugslang

$5.99

$

In Stock, Qty 5

0

14

Husqvarna 544129701

RP RETURN HOSE
(Superseded to 577535101)

Note: Returslang

$18.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544359902

CONTROL

$12.99

$

In Stock, only 4 left!

0

16

Husqvarna 503210750

SCREW

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 544080801

AIR FILTER - NYLON (80)

Note: LS PA 80

$17.99

$

In Stock, only 2 left!

0

17

Husqvarna 544080802

AIR FILTER - NYLON (44)

Note: LS PA 44

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544080803

AIR FILTER - FELT

Note: Felt

$13.99

$

Usually ships in 3-10 days

0

18

Husqvarna 502080701

$

$

Not available

19

Husqvarna 502081001

SHAFT ASSY

$17.99

$

In Stock, only 3 left!

0

20

Husqvarna 502081101

SPRING

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 502080801

COLLAR

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 502081201

VALVE

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537385201

CLIP

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 502080901

ROD

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 735583000

LOCK WASHER

$4.99

$

Usually ships in 3-10 days

0
