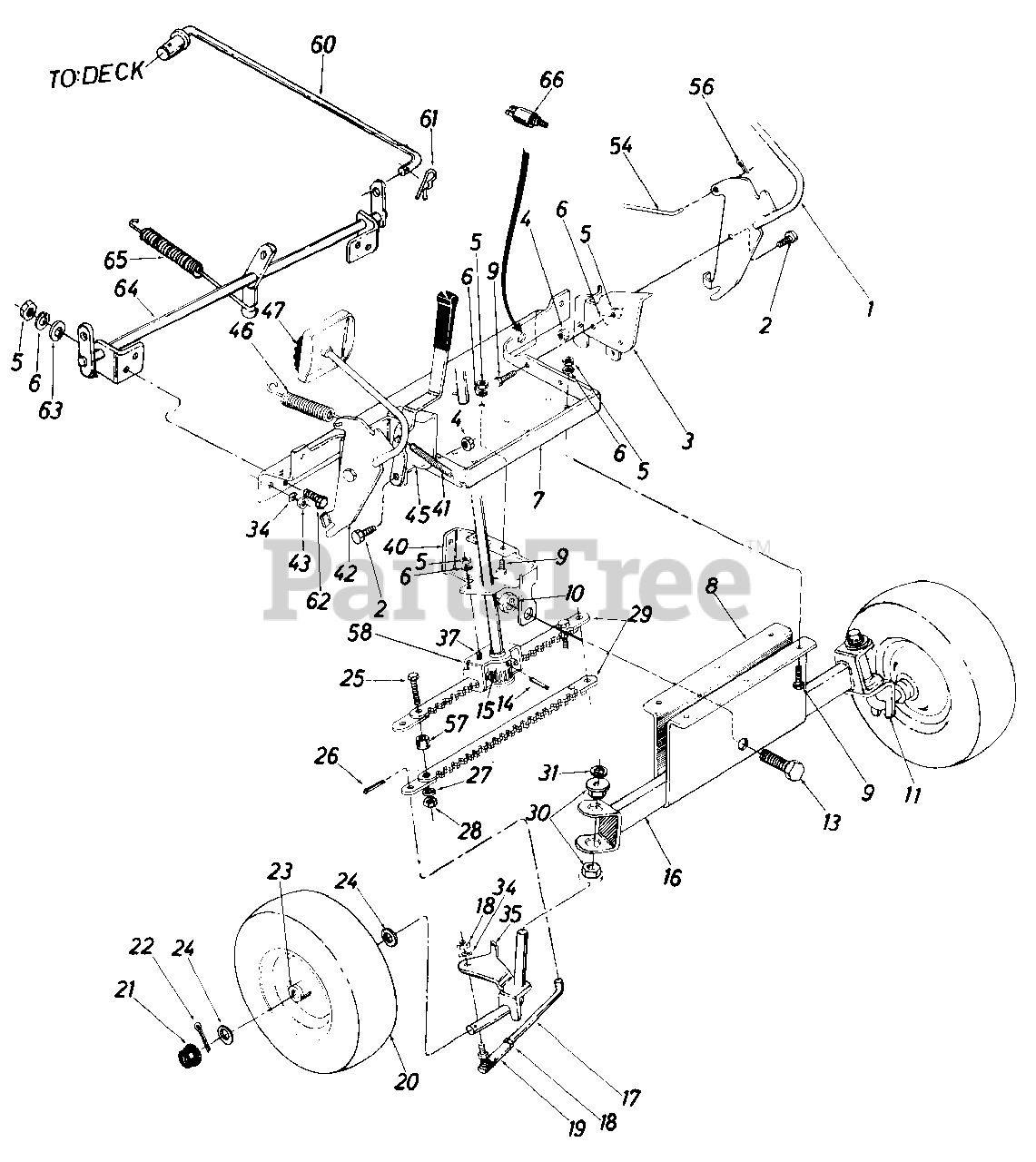

445 (445134) - Cub Cadet Rear-Engine Riding Mower (1984) Steering Linkage Parts Diagram

Rear-Engine Riding Mower

Steering Linkage Parts Diagram

  • Title
1

Cub Cadet 12004

Foot Pedal Ass'y.

$

$

Currently unavailable

2

Cub Cadet 738-0147

Shld. Scr. .500" Dia. x .170

$

$

Not available

3

Cub Cadet 12009

L.H. Brake Pivot Brkt.

$

$

Currently unavailable

4

Cub Cadet 712-0375

Hex Center L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0119

Spring L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 12003

Front Frame

$

$

Currently unavailable

8

Cub Cadet 12439

Front Pivot Brkt. Ass'y.

$

$

Currently unavailable

9

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

10

Cub Cadet 712-0923

Hex Center L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 14455

Front Axle Ass'y. L.H.

$

$

Not available

13

Cub Cadet 710-0622

Hex Scr. 5/8-18 x 1.31 Lg.

$

$

Currently unavailable

14

Cub Cadet 715-0134

Spring Pin 3/16 Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

15

Cub Cadet 748-0203

Spur Gear 12 Tooth

$

$

Not available

16

Cub Cadet 12440

Pivot Bar Ass'y.

$

$

Currently unavailable

17

$

$

Not available

18

Cub Cadet 732-0711

Hex Jam Nut 3/8-24 Thd.

$

$

Not available

19

Cub Cadet 723-0156

Ball Joint
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

20

Cub Cadet 734-1184

Front Wheel Ass'y. - Comp.
(Superseded to 634-0147)

$

$

Not available

Cub Cadet 734-1185

Tire Only
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

$

$

Not available

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-0484

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0470

Cotter Pin 1/8" x 1-1/4" Lg.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 741-0313

Flange Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0156

Flat Wash. .625 I.D.

$4.49

$

In Stock, Qty 12

0

25

Cub Cadet 710-0428

Hex Scr. 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet 714-0507

Cotter Pin 3/32 Dia. x .75 Lg.

$4.49

$

In Stock, Qty 12

0

27

Cub Cadet 736-0329

Spring L-Wash. 1/4 Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

28

Cub Cadet 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

29

Cub Cadet 11048

Steering Rack

Note: (2 needed)

$

$

Not available

30

Cub Cadet 748-0227

Flange Bearing
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

31

Cub Cadet 726-0159

Push Nut .625 Shaft
(Superseded to 926-0159B)

$

$

Not available

34

Cub Cadet 736-0217

Spring L-Wash. 3/8 Scr.

$4.49

$

In Stock, Qty 8

0

35

Cub Cadet 14454

Front Axle Ass'y. R.H.

$

$

Not available

37

Cub Cadet 710-0323

Cross Recess Truss Hd. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

40

Cub Cadet 12445

Steering Box Support

$

$

Currently unavailable

41

Cub Cadet 732-0264

Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 12004

Foot Pedal Ass'y.

$

$

Currently unavailable

43

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 12010

R.H. Pivot Brkt.

$

$

Currently unavailable

46

Cub Cadet 732-0260

Brake Tension Spring
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

47

Cub Cadet 12378

Pad - Vinyl-Brake

$

$

Not available

54

Cub Cadet 747-0119

Clutch Rod

$

$

Currently unavailable

56

Cub Cadet 714-0507

Cotterpin 3/32 Dia. x .75 Lg.

$4.49

$

In Stock, Qty 12

0

57

$

$

Currently unavailable

58

Cub Cadet 11074

Steering Housing

$

$

Not available

?59

Cub Cadet 12379

Clutch Pedal Pad

Note: (Not Shown)

$

$

Currently unavailable

60

Cub Cadet 711-0751

Stabilizer Rod

$

$

Not available

61

Cub Cadet 714-0104

Inter. Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

64

Cub Cadet 15660

Stabilizer Shaft Ass'y.

$

$

Currently unavailable

65

$

$

Not available

66

Cub Cadet 725-0277

Safety Switch (Clutch)

$

$

Not available
