445 (445134) - Cub Cadet Rear-Engine Riding Mower (1984) Rear & Front Cover, Seat, Steering Wheel Parts Diagram

Rear-Engine Riding Mower

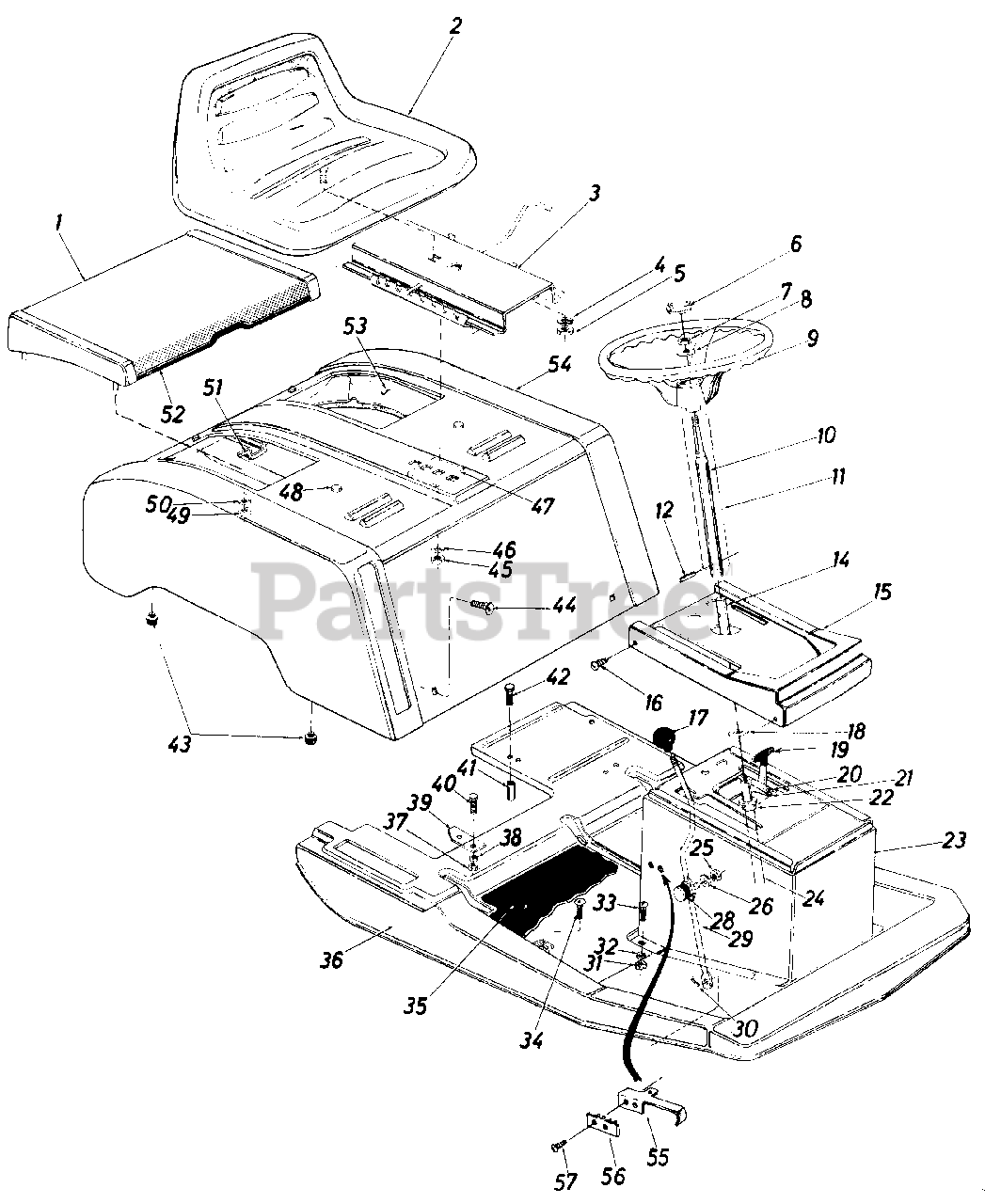

Rear & Front Cover, Seat, Steering Wheel Parts Diagram

  • Title
1

Cub Cadet 12069

Air Intake Screen

$

$

Currently unavailable

$

$

Not available

3

Cub Cadet 12400

Seat Adjuster Comp.

$

$

Currently unavailable

4

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

8

Cub Cadet 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 731-0219

Steering Wheel

$38.99

$

In Stock, only 1 left!

0

10

Cub Cadet 750-0213

Adapter and Tube Ass'y.

$

$

Currently unavailable

11

Cub Cadet 750-0205

Steering Tube Spacer

$

$

Currently unavailable

12

Cub Cadet 715-0114

Spring Pin 1/4 Dia. x 1.50" Lg.

$9.49

$

In Stock, only 3 left!

0

14

Cub Cadet 738-0187

Steering Shaft

$

$

Currently unavailable

15

Cub Cadet 731-0217

Console Center

$

$

Currently unavailable

16

Cub Cadet 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

18

Cub Cadet 736-0156

Fl-Wash..625 I.D. x 1.102 O.D.

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 746-0226

Throttle Control - Comp.

$

$

Currently unavailable

20

Cub Cadet 710-0351

Truss Mach. Scr. #10 x .50 Lg.

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0526

Speed Nut #10

$

$

Not available

22

Cub Cadet 748-0227

Hex Flange Bearing
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

23

Cub Cadet 12040

Center Console Ass'y.

$

$

Currently unavailable

24

Cub Cadet 738-0187

Steering Shaft

$

$

Currently unavailable

25

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0159

Fl-Wash. .344 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 735-0126

Rubber Wash. .33 I.D. x .87 O.D.
(Superseded to 735-0126A)

$

$

Not available

29

Cub Cadet 12063

Shift Lever

$

$

Currently unavailable

30

Cub Cadet 714-0507

Cotterpin 3/32 Dia. x .75 Lg.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0242

Belleville Washer. .345 I.D. x .885 O.D.

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0451

Carr. Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0451

Carr. Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 723-0297

Floor Mat

$

$

Currently unavailable

36

Cub Cadet 12021

Front Cover

Note: Color Code - 499

$

$

Currently unavailable

37

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

Cub Cadet 12109

Transmission Brkt.

$

$

Currently unavailable

40

Cub Cadet 710-0597

Hex Scr. 1/4-20 x 1.0" Lg.

$3.99

$

In Stock, Qty 14

0

41

Cub Cadet 750-0208

Spacer Tube

$

$

Currently unavailable

42

Cub Cadet 710-0190

Hex Scr. 5/16-18 x 4" Lg.

$7.99

$

Usually ships in 3-6 days

0

43

$

$

Not available

44

Cub Cadet 710-0451

Carr. Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0921

L-Wash. 1/2 I.D.

$4.49

$

In Stock, Qty 6

0

47

Cub Cadet 12049

Seat Mtg. Plate

$

$

Currently unavailable

48

Cub Cadet 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

Cub Cadet 721-0130

Air Duct Seal

$

$

Currently unavailable

52

Cub Cadet 731-0511

Extruded "U" Channel

$3.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 12048

Air Intake Duct

$

$

Currently unavailable

54

Cub Cadet 12032

Rear Cover Ass'y

Note: Color Code - 499

$

$

Currently unavailable

55

Cub Cadet 725-0759

Spring Switch (Reverse)
(Superseded to 753-0579)

$

$

Not available

56

Cub Cadet 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

57

Cub Cadet 710-0227

Hex Wash. Hd. Tap Scr. #8 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0
