445 (445134) - Cub Cadet Rear-Engine Riding Mower (1984) Differential Assembly Parts Diagram

Rear-Engine Riding Mower

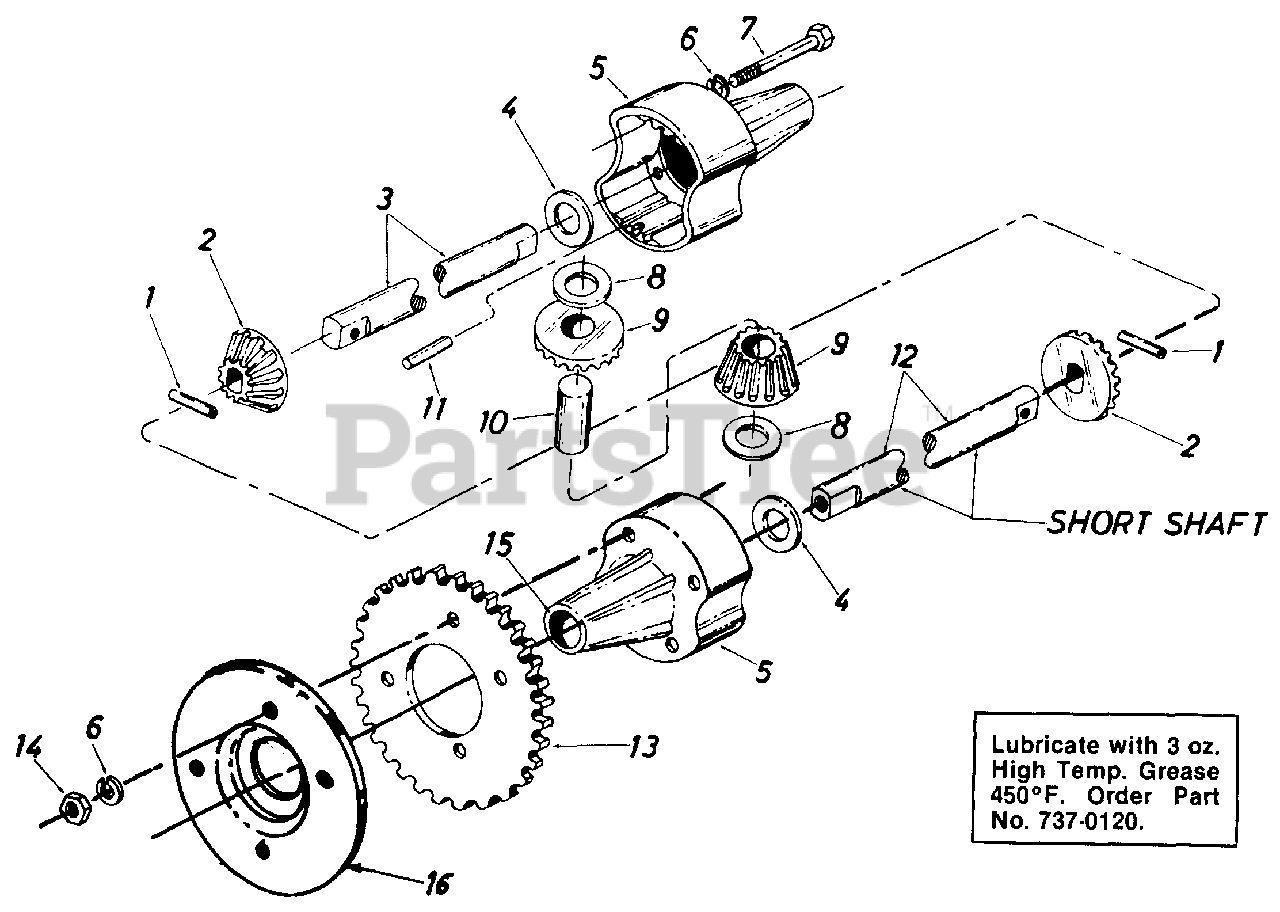

Differential Assembly Parts Diagram

  • Title

Cub Cadet 717-0321

Differential Assembly

$

$

Currently unavailable

1

Cub Cadet 715-0247

Spring Pin Spiral 3/16" Dia. x 1.00" Lg.
(Superseded to 915-0247)

$

$

Not available

2

Cub Cadet 748-0156

Gear - Double "D" Hole
(Superseded to 948-0185)

$

$

Not available

3

Cub Cadet 738-0298

Shaft - Long - 19.81" Lg.

$

$

Not available

4

Cub Cadet 736-0188

Fl-Wash. .760 I.D. x 1.49 O.D.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 719-0150

Housing Half

$86.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0363

Hex Bolt 5/16-24 x 4.00" Lg.

$

$

Not available

8

Cub Cadet 736-0187

Fl-Wash. .640 I.D. x .24 O.D.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 748-0158

Gear - Round Hole
(Superseded to 948-0158)

$

$

Not available

10

Cub Cadet 711-0276

Drive Pin

$

$

Not available

11

Cub Cadet 715-0145

Dowel Pin 3/16" Dia. x .62" Lg.

$

$

Not available

12

Cub Cadet 738-0299

Shaft - Short - 8.52" Lg.

$

$

Not available

13

Cub Cadet 713-0162

Sprocket - 48 Teeth

$

$

Not available

14

Cub Cadet 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 3 left!

0

15

Cub Cadet 748-0169

Flange Bearing
(Superseded to 948-0169)

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 10286

Brake Disc

$

$

Currently unavailable

Cub Cadet 737-0120

Plastilube #0 14 oz
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
