445 (445133) - Cub Cadet Rear-Engine Riding Mower (1983) Deck, Side Rail And Chute Cover Assemblies Parts Diagram

Rear-Engine Riding Mower

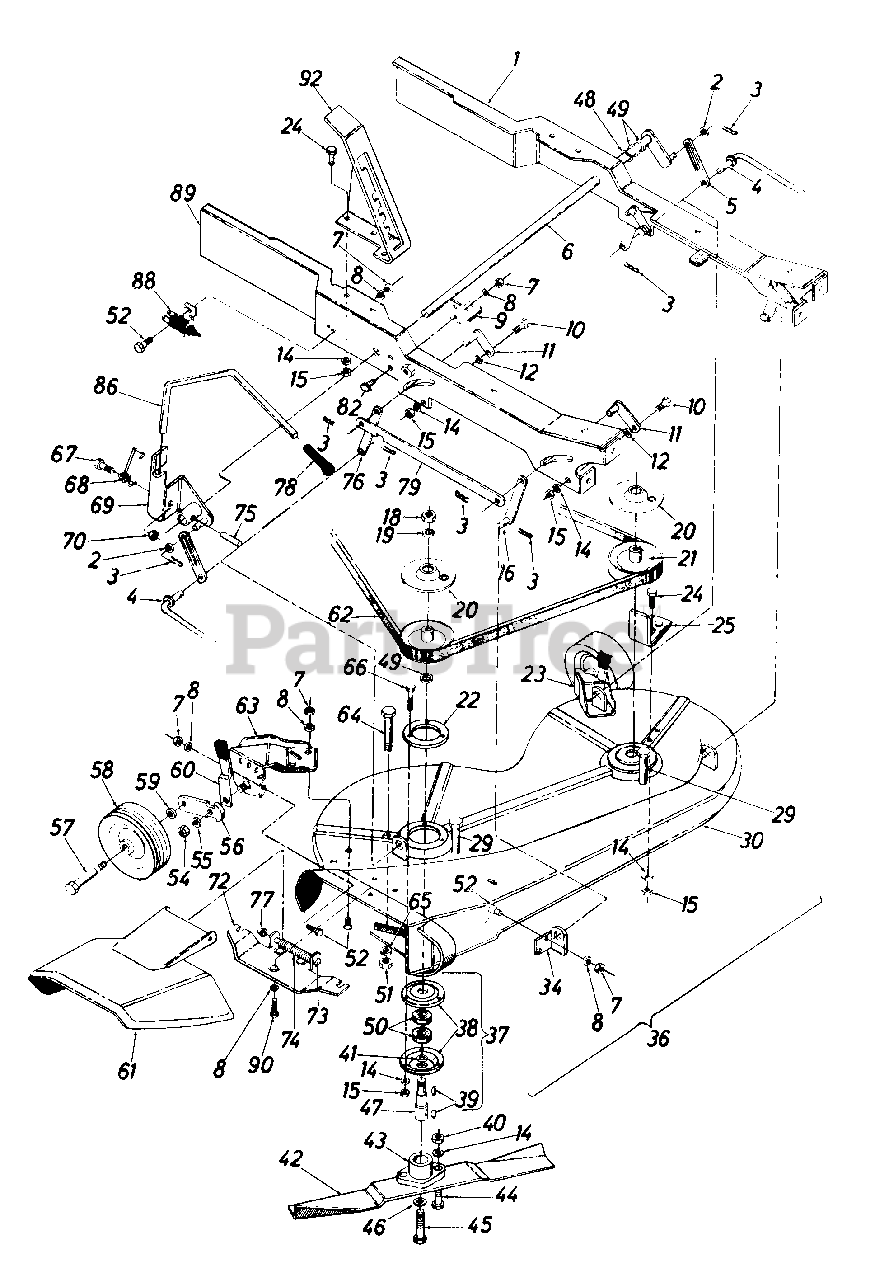

Deck, Side Rail And Chute Cover Assemblies Parts Diagram

  • Title
1

Cub Cadet 12011

Side Rail Ass'y. - L.H.

$

$

Currently unavailable

2

Cub Cadet 736-0192

Flat Washer .531 I.D. x .930 O.D. x .090

$4.49

$

In Stock, Qty 18

0

3

Cub Cadet 714-0104

Internal Cotter Pin for 3/8" Dia.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0751

Stabilizer Rod

Note: Code N

$

$

Not available

5

Cub Cadet 09737

Slotted Link

$

$

Currently unavailable

6

Cub Cadet 12015

Lift Shaft Ass'y.

$

$

Currently unavailable

7

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0329

Spring Lock Washer 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 761-0150

Blade Brake Ass'y.

$

$

Not available

10

Cub Cadet 738-0140

Shld. Scr. .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

11

Cub Cadet 09721

Pivot Link Ass'y.

$

$

Not available

12

Cub Cadet 736-0264

Flat Washer .344 I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0119

Spring Lock Washer 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 12068

Deck Link Ass'y.

$

$

Currently unavailable

18

Cub Cadet 712-0261

Hex Jam L-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

19

Cub Cadet 736-0158

Spring Lock Washer 5/8" Scr.

$4.49

$

In Stock, Qty 11

0

20

Cub Cadet 11530

Brake Disc Ass'y.

$

$

Not available

21

Cub Cadet 756-0251

Deck Pulley

$59.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

23

Cub Cadet 11237

Wheel Bracket Ass'y. - L.H.

$

$

Not available

24

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

25

Cub Cadet 10426

Belt Keeper Ass'y.

$

$

Not available

29

Cub Cadet 738-0129

Shld. Scr. .498" Dia. x 2.00"

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 12028

Deck Ass'y.

$

$

Currently unavailable

34

Cub Cadet 12334

Deck Bracket

$

$

Currently unavailable

36

Cub Cadet 12361

34 Inch Deck Ass'y. - Comp.

$

$

Currently unavailable

37

Cub Cadet 12036

Blade Spindle Ass'y. - Comp.

$

$

Currently unavailable

38

Cub Cadet 08253

Bearing Cup
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

39

Cub Cadet 714-0365

#6 Hi-Pro-Key 5/32 x 5/8"

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

41

Cub Cadet 736-0287

Fl-Wash. .793 I.D. x 1.24 O.D.

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 742-0120

17 Inch Blade

$

$

Not available

43

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

44

Cub Cadet 710-0888

Hex Scr. 5/16-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

46

Cub Cadet 736-0217

Spring Lock Washer 3/8" Scr.

$4.49

$

In Stock, Qty 8

0

47

Cub Cadet 711-0597

Blade Spindle

$

$

Not available

48

Cub Cadet 736-0174

Wave Washer .62" I.D.

$6.99

$

In Stock, Qty 12

0

49

Cub Cadet 736-0162

Flat Washer .635 I.D. x .930

$4.49

$

In Stock, Qty 14

0

50

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

54

Cub Cadet 712-0116

Hex Inserted Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

55

Cub Cadet 736-0219

Belleville Washer .40" I.D. x 1.13 O.D. x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 10937

Wheel Pivot Bar

$

$

Not available

57

Cub Cadet 738-0119

Shld. Scr. 5/8" Dia. x 1.75"

$

$

Not available

58

Cub Cadet 734-0973

5" Wheel Ass'y.

$12.99

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0105

Belleville Washer .400 I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 14083

Spring Lever Ass'y. w/knob
(Superseded to 14082)

$

$

Not available

61

Cub Cadet 11633

Chute Cover Ass'y. - Comp.

$

$

Currently unavailable

62

Cub Cadet 754-0178

"V"-Belt 21/32 x 82" Lg.
(Superseded to 954-0178)

$

$

Not available

63

Cub Cadet 11236

Wheel Bracket Ass'y. - R.H.

$

$

Not available

64

Cub Cadet 738-0213

Shld. Scr. .498" Dia. x 1.450" Lg.

$7.99

$

In Stock, only 2 left!

0

65

Cub Cadet 736-0169

Spring Lock Washer 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0322

Hex Sems Scr. 5/16-18 x 1.00"

$

$

Not available

67

Cub Cadet 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 10

0

68

Cub Cadet 732-0231

Torsion Spring

$

$

Currently unavailable

69

Cub Cadet 12017

Handle Bracket Ass'y.

$

$

Currently unavailable

70

Cub Cadet 712-0107

Hex Center Lock Nut 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

72

Cub Cadet 11396

Adapter Ass'y.

$

$

Not available

73

Cub Cadet 711-0571

Hinge Pin

$

$

Not available

74

Cub Cadet 732-0261

Torsion Spring

$

$

Not available

75

Cub Cadet 715-0107

Spring Pin 5/16" Dia. x 1.38"

$

$

Not available

76

Cub Cadet 10317

Deck Link

$

$

Not available

77

Cub Cadet 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

$

$

Not available

79

Cub Cadet 09735

Connecting Rod

$

$

Not available

82

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 12061

Lift Handle

$

$

Currently unavailable

88

Cub Cadet 725-0842

Safety Switch (Lift)

$

$

Not available

89

Cub Cadet 12012

Side Rail Ass'y. - R.H.

$

$

Currently unavailable

90

Cub Cadet 710-0195

Hex Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

92

Cub Cadet 12050

Index Bracket

$

$

Currently unavailable
