445 (445132) - Cub Cadet Rear-Engine Riding Mower (1982) Brake, Chain Idler, Belt Guard and Rear Wheel Assemblies Parts Diagram

Rear-Engine Riding Mower

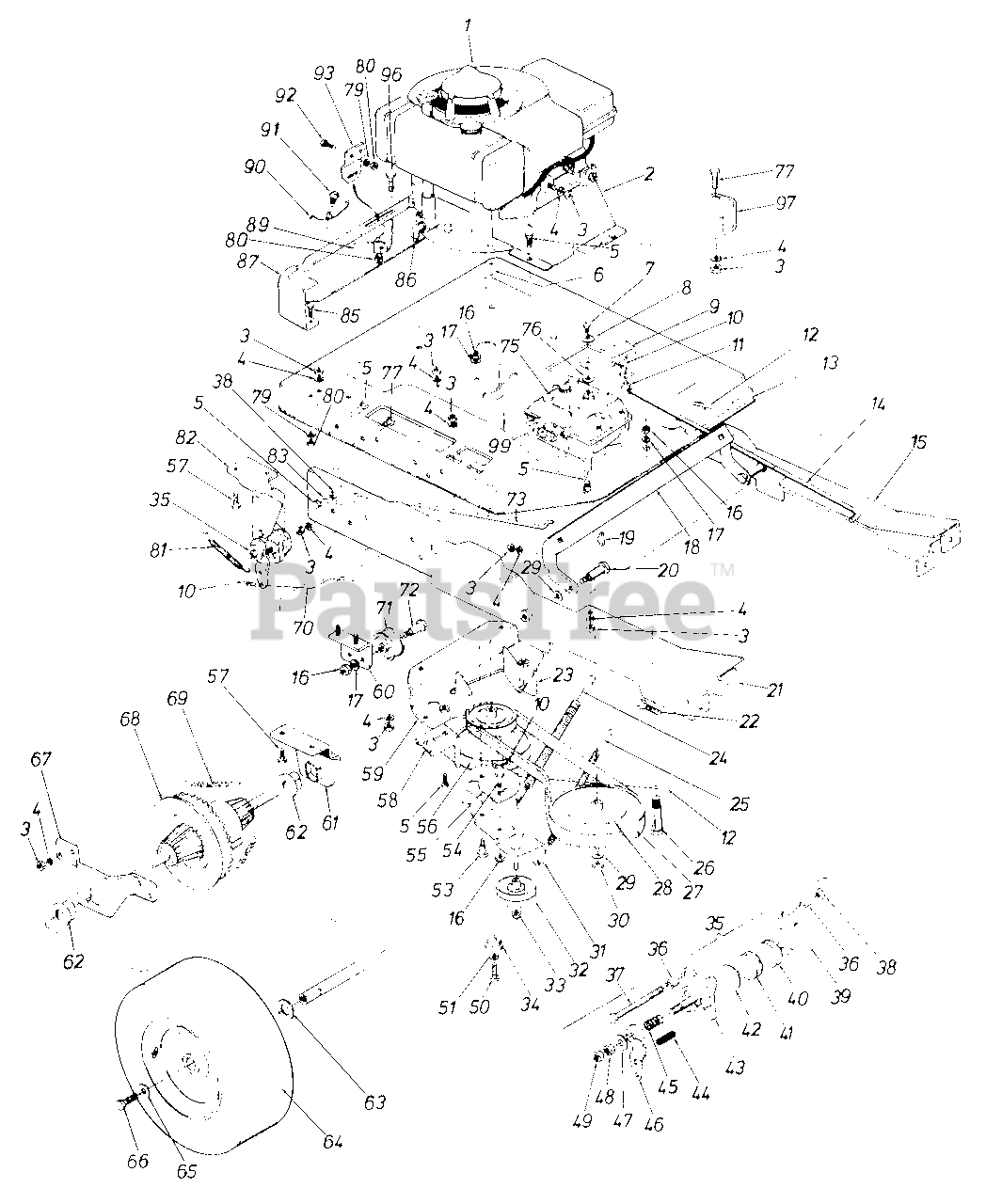

Brake, Chain Idler, Belt Guard and Rear Wheel Assemblies Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 12025

Hot Air Duct

$

$

Currently unavailable

3

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0119

L-Wash. 5/16 Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

6

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8 Dia.

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0170

Hex Scr. 5/16-24 x .50 Lg.

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0242

Belleville Wash. .345 I.D.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 12064

Shift Brkt.

$

$

Currently unavailable

10

Cub Cadet 714-0507

Cotterpin 3/32 x .75

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 711-0392

Adjustment Ferrule

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 747-0119

Clutch Rod

$

$

Currently unavailable

13

Cub Cadet 12022

Engine Mtg. Plate

$

$

Currently unavailable

14

Cub Cadet 747-0118

Shift Rod

$

$

Currently unavailable

15

Cub Cadet 12011

Slide Rail L.H.

$

$

Currently unavailable

16

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

17

Cub Cadet 736-0105

Spring L-Wash. 3/8 Scr.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 12034

Hinge

$

$

Currently unavailable

19

Cub Cadet 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

20

Cub Cadet 738-0214

Shld. Scr. .625 Dia. x 1.5" Lg.

$

$

Currently unavailable

21

Cub Cadet 12012

Side Rail Ass'y. R.H.

$

$

Currently unavailable

22

Cub Cadet 710-0216

Hex Scr. 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 14

0

23

Cub Cadet 10426

Belt Keeper

$

$

Not available

24

Cub Cadet 732-0185

Ext. Spring
(Superseded to 732-0185A)

$

$

Not available

25

Cub Cadet 732-0185

Tension Spring
(Superseded to 732-0185A)

$

$

Not available

26

Cub Cadet 738-0119

Shld. Scr. .62 x 1.75

$

$

Not available

27

Cub Cadet 754-0200

V-Belt 1/2 x 48

$

$

Not available

28

Cub Cadet 756-0174

Transmission Pulley

$

$

Not available

29

Cub Cadet 736-0921

Spring L-Wash. 1/2 Scr.

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 712-0922

Hex Jam Nut 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet 12055

Idler Brkt. Ass'y.

$

$

Currently unavailable

32

Cub Cadet 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

33

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24"

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 711-0572

Step Washer

$

$

Not available

35

Cub Cadet 761-0151

Brake Ass'y. - Comp.

$

$

Not available

36

Cub Cadet HH-11-03527

Bushing .442 Dia. x .375 Lg.

$

$

Not available

37

Cub Cadet 710-0395

Hex Scr. 5/16-18 x 2.25 Lg.

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

39

Cub Cadet HH-12-04338

Casting Carrier

$

$

Not available

40

Cub Cadet HH-15-0374

Friction Pad 1.110 Dia. x .245 Thick

$

$

Currently unavailable

41

Cub Cadet HH-15-03078

Friction Pad 1.110 Dia. x .430 Thick

$

$

Currently unavailable

42

Cub Cadet HH-03-03033

Back Up Washer

$

$

Not available

43

Cub Cadet HH-12-03357

Casting Cam

$

$

Currently unavailable

44

Cub Cadet HH-05-03034

Push Pin

$

$

Not available

45

Cub Cadet HH-06-03031

Spring

$

$

Not available

46

Cub Cadet HH-18-03001

Cam Lever

$

$

Currently unavailable

47

Cub Cadet HH-03-03032

Washer
(Superseded to 736-3089)

$

$

Not available

48

Cub Cadet 712-0134

Hex Top L-Nut
(Superseded to 912-0237)

$

$

Not available

49

Cub Cadet 712-0237

Hex Centerlock Nut

$4.99

$

In Stock, only 4 left!

0

50

Cub Cadet 710-0539

Hex Scr. 3/8-24 x 1.75 Lg. H.T.

$4.99

$

In Stock, Qty 11

0

51

Cub Cadet 736-0217

Spring L-Wash. 3/8 Scr.

$4.49

$

In Stock, Qty 6

0

53

Cub Cadet 738-0143

Shld. Scr. .500 Dia. x .340

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 738-0147

Shld. Scr. .500 Dia. x .170

$

$

Not available

55

Cub Cadet 12030

Idle Pivot Brkt.

$

$

Currently unavailable

56

Cub Cadet 756-0200

Two Step Engine Pulley

$

$

Not available

57

UNKNOWN

$

$

Not available

58

Cub Cadet 12038

Belt Keeper

$

$

Currently unavailable

59

Cub Cadet 12023

Belt Guard Ass'y.

$

$

Currently unavailable

60

Cub Cadet 12019

Chain Idler Ass'y.

$

$

Currently unavailable

61

Cub Cadet 12053

Bearing Support

$

$

Not available

62

Cub Cadet 741-0199

Flange Bearing - Plastic
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0134

Flat Washer .812 I.D.

$4.49

$

In Stock, Qty 10

0

64

Cub Cadet 734-0524

Rear Wheel Ass'y. - Comp.

$

$

Not available

Cub Cadet 734-0427

Tire Only 15" x 6"
(Superseded to 734-1731-0901)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0521

Rim Only

$

$

Not available

Cub Cadet 734-0255

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0627

Hex Scr. w/Lock 5/16-24 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 12051

Bearing Brkt.

$

$

Currently unavailable

68

Cub Cadet 717-0321

Differential Ass'y. - Comp.

Note: (See separate drawing)

$

$

Currently unavailable

69

Cub Cadet 713-0174

#420 Chain 1/2 x 71 Links

$

$

Not available

Cub Cadet 713-0154

#420 Master Link
(Superseded to 913-0154)

$

$

Not available

70

Cub Cadet 747-0117

Brake Rod

$

$

Not available

71

Cub Cadet 756-0192

Flat Idler

$

$

Not available

72

Cub Cadet 738-0145

Shld. Scr. .500 x .48 Lg.

$6.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 747-0114

Rear Cover Prop

$

$

Currently unavailable

75

Cub Cadet 717-0233

Transmission 4 Speed - Peerless

$

$

Currently unavailable

76

Cub Cadet 717-0234

Hardened Washer

$

$

Not available

77

Cub Cadet 710-0322

Hex Sems Scr. 5/16-18 x 1 Lg.

$

$

Not available

79

Cub Cadet 736-0329

L-Wash. 1/4 Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

80

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

81

Cub Cadet 732-0157

Brake Return Spring

$14.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 12060

Brake Hanger Brkt.

$

$

Currently unavailable

83

Cub Cadet 736-0159

Flat Wash. .344 I.D.

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 710-0289

Hex Scr. 1/4-20 x .50 Thd.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

86

Cub Cadet 737-0125

90° Elbow Male to Female 3/8" Thd.

$

$

Not available

87

Cub Cadet 12026

Rear Panel

$

$

Currently unavailable

89

Cub Cadet 12371

Hook Brkt.

$

$

Currently unavailable

Cub Cadet 11249

Knob

$

$

Currently unavailable

90

Cub Cadet 732-0301

Spring

$

$

Not available

91

Cub Cadet 738-0137

Shld. Scr.

$

$

Not available

92

Cub Cadet 710-0134

Carr. Bolt 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 12370

Latch Brkt.

$

$

Currently unavailable

96

Cub Cadet 710-0442

Hex Scr. 5/16-18 x 1 1/2 Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

97

Cub Cadet 732-0286

Belt Guide

$

$

Currently unavailable

99

Cub Cadet 713-0208

Sprocket

$

$

Not available

Cub Cadet 716-0114

Retaining Ring
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0
