445 (445132) - Cub Cadet Rear-Engine Riding Mower (1982) Battery and Safety Switch Parts Diagram

Rear-Engine Riding Mower

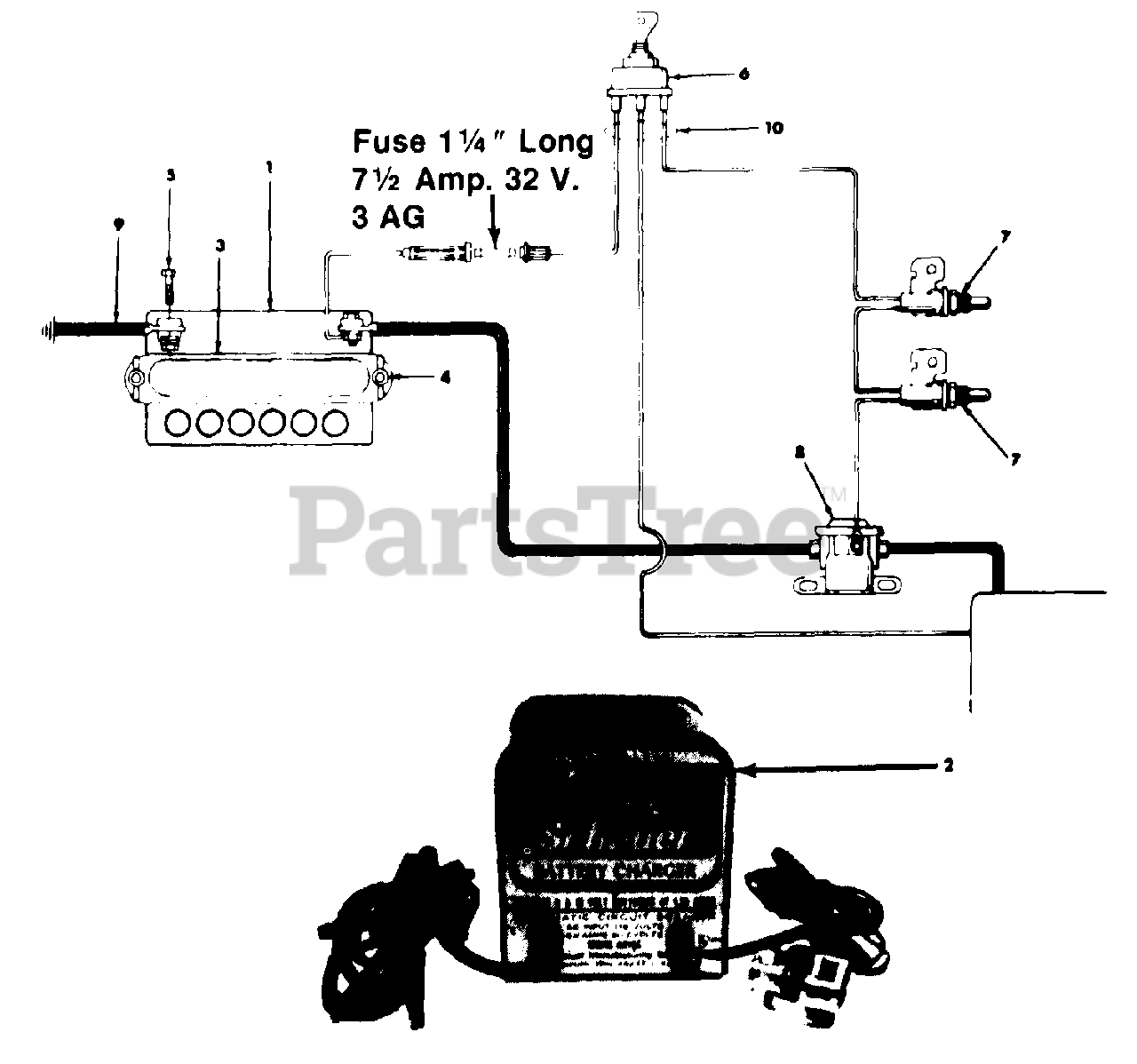

Battery and Safety Switch Parts Diagram

  • Title

1

Cub Cadet 725-0453

Battery

$

$

Not available

2

Cub Cadet 725-0507

Charger

$

$

Currently unavailable

3

Cub Cadet 12614

Battery Hold Down

$

$

Not available

4

Cub Cadet 711-0222

Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0113

Wing Nuts
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0258

Hex bolt 1/4-20 x 5/8 Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 725-0267

Key Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

Cub Cadet 725-0201

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

7

Cub Cadet 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0277

Safety Switch

$

$

Not available

8

Cub Cadet 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

9

Cub Cadet 725-0297

Ground Wire

$

$

Not available

10

Cub Cadet 725-0382

Wire Harness

$

$

Not available
