445 (190-445-100) - Cub Cadet Triple Rear Bagger Cover Assembly Parts Diagram

Triple Rear Bagger

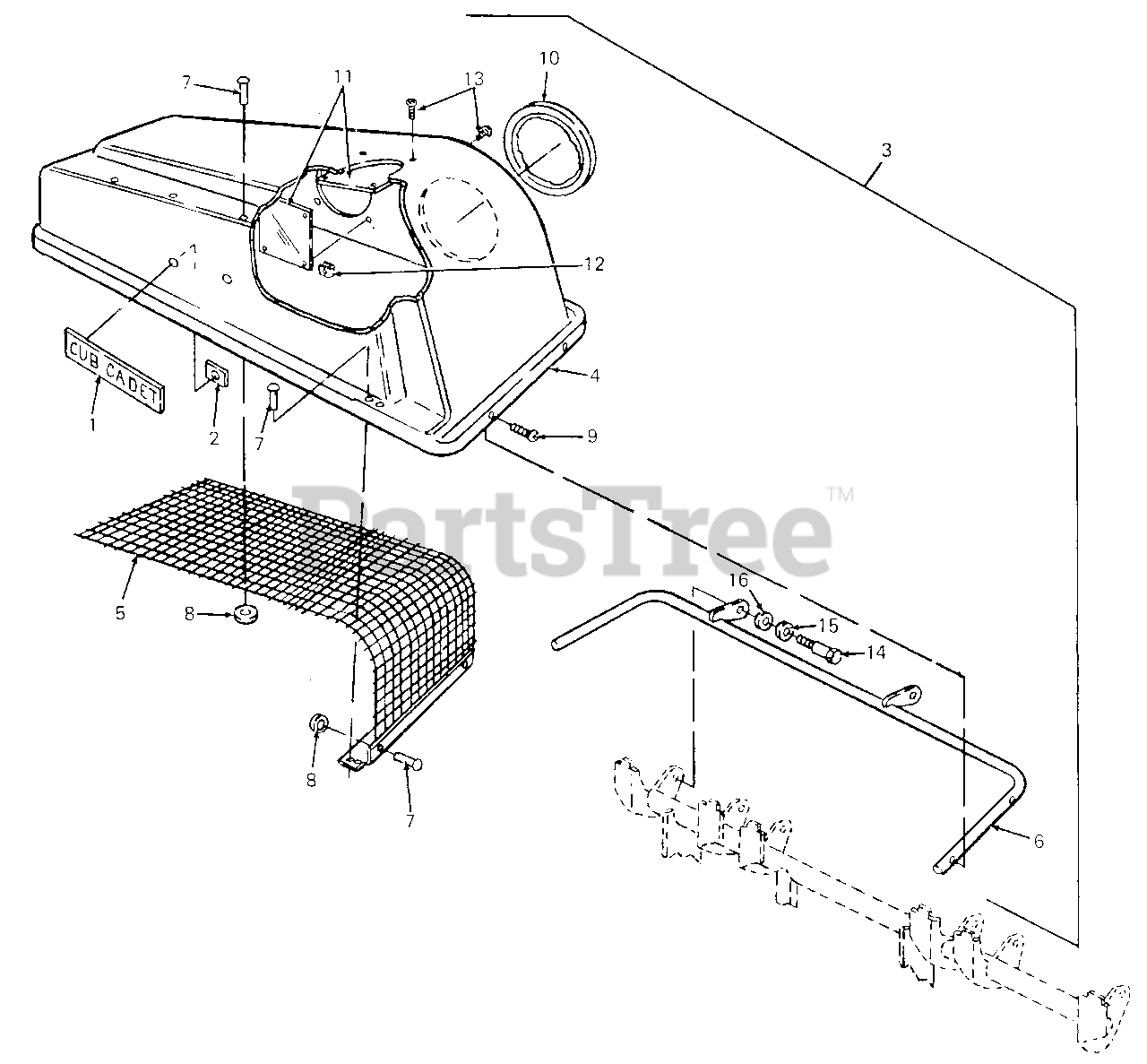

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-on Speed

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 17312

Cover Assy, Grass Catcher

Note: (Includes Ref No. 4, 5, 6, 7 [Qty 20], 8 [Qty 16], 9 [Qty 9], 10, 11 [Qty 2

$

$

Not available

4

Order Grass Catcher Cover Assy 17312

$

$

Not available

5

Order Grass Catcher Cover Assy 17312

$

$

Not available

6

Cub Cadet 749-0747

Bracket Assy, Catcher Cover Hinge
(Superseded to 749-0747-0637)

Variations

Cub Cadet 749-0747-0637

HINGE BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 X .62 X .063

$5.49

$

In Stock, Qty 12

0

9

Cub Cadet 710-1005

Screw, Hex Wash. Hd. Tapp, 1/4 X .50 Lg
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 723-0413

Seal, Tube, 8.1 ID

$30.99

$

In Stock, only 2 left!

0

11

Cub Cadet 731-0824

Plate, Plastic, 1/8 Thk X 5.62 Sq

$

$

Not available

12

Cub Cadet 726-0244

Nut, U-Type Speed
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0351

Screw, Truss Mach., #10 X .50 Lg

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-0380

Screw, Shld

$7.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0108

Washer, Flat, .510 X .75 X .033

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0255

Washer, Bell, .515 X 1.14

$4.99

$

In Stock, only 3 left!

0
