44460 - Toro 60" ProLine Walk-Behind Mower, Floating Deck (SN: 413000000 - 999999999) Operator Control Assembly Parts Diagram

60" ProLine Walk-Behind Mower, Floating Deck

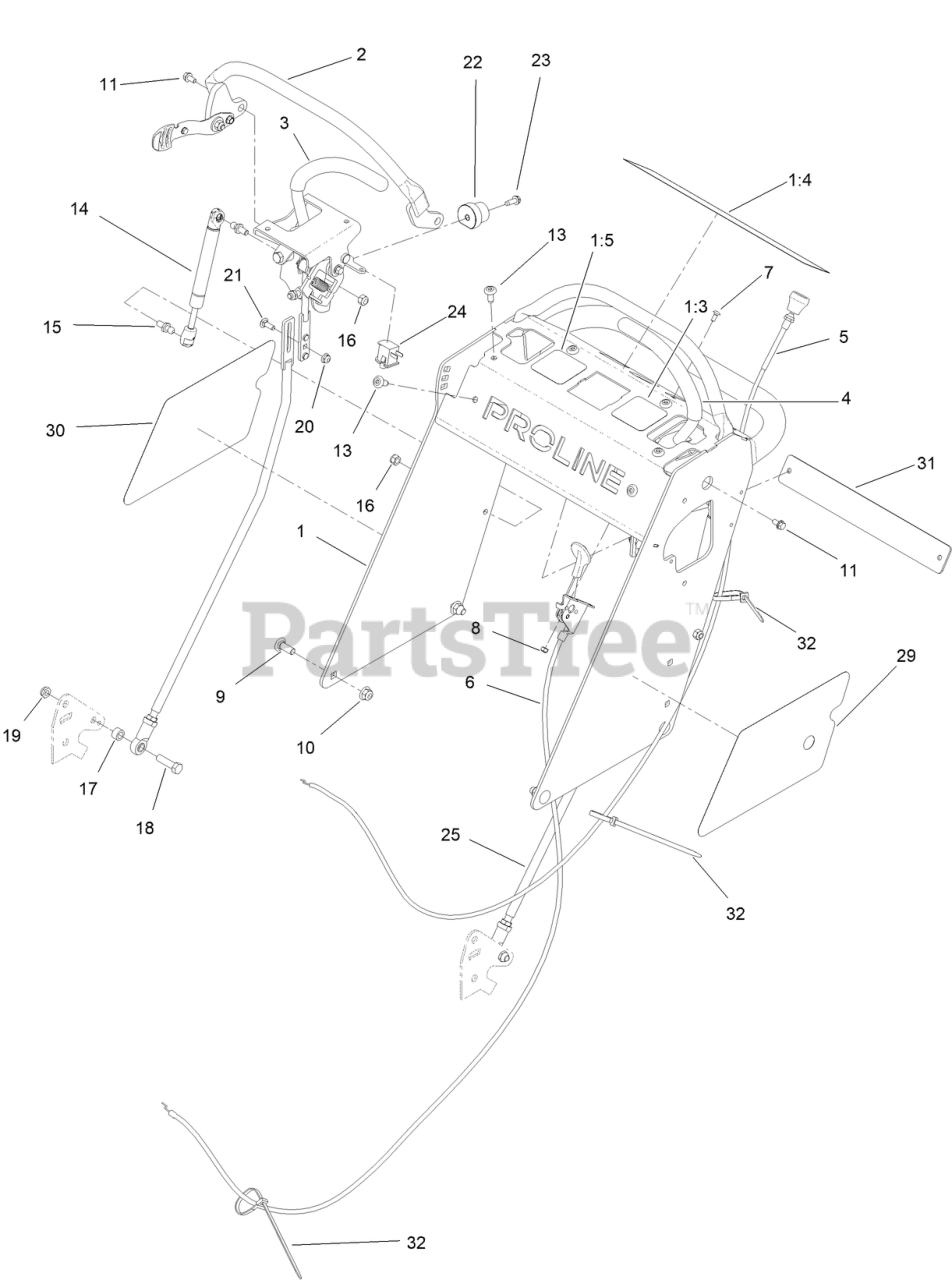

Operator Control Assembly Parts Diagram

  • Title
1

Toro 139-2850

TOWER ASM

$513.99

$

Usually ships in 3-6 days

0

1:3

Toro 138-8816

DECAL-OPC CONTROL, LEFT

$7.49

$

Usually ships in 3-6 days

0

1:4

Toro 138-8818

DECAL-WARNING, CONTROL

$12.99

$

Usually ships in 3-6 days

0

1:5

Toro 139-2874

DECAL-OPC CONTROL, RIGHT

$7.49

$

Usually ships in 3-6 days

0

2

Toro 139-1475

REFERENCE BAR ASSEMBLY

$

$

Currently unavailable

3

Toro 139-1532

CONTROL HANDLE ASM, RH

$297.99

$

Usually ships in 3-6 days

0

4

Toro 139-1487

CONTROL HANDLE ASM, LH

$297.99

$

Usually ships in 3-6 days

0

5

Toro 126-2107

CABLE, CHOKE

$44.99

$

In Stock, only 3 left!

0

6

Toro 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, only 2 left!

0

7

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

13

$1.49

$

In Stock, Qty 6

0

14

Toro 139-1523

DAMPER

$50.99

$

Usually ships in 3-6 days

0

15

Toro 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 121-2608

SPACER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

19

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

22

$7.99

$

Usually ships in 3-6 days

0

23

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

25

Toro 139-2913

CONTROL ROD ASM

$39.99

$

Usually ships in 3-6 days

0

29

Toro 140-4255

DECAL-PROLINE HDX, LH

$19.99

$

Usually ships in 3-6 days

0

30

Toro 140-4256

DECAL-PROLINE HDX, RH

$19.99

$

Usually ships in 3-6 days

0

31

Toro 140-4251-03

PLATE-COVER

$13.99

$

Usually ships in 3-6 days

0

32

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
