44454 - Toro 54" ProLine Walk-Behind Mower, Floating Deck (SN: 408000000 - 409999999) Electrical Harness Assembly Parts Diagram

54" ProLine Walk-Behind Mower, Floating Deck

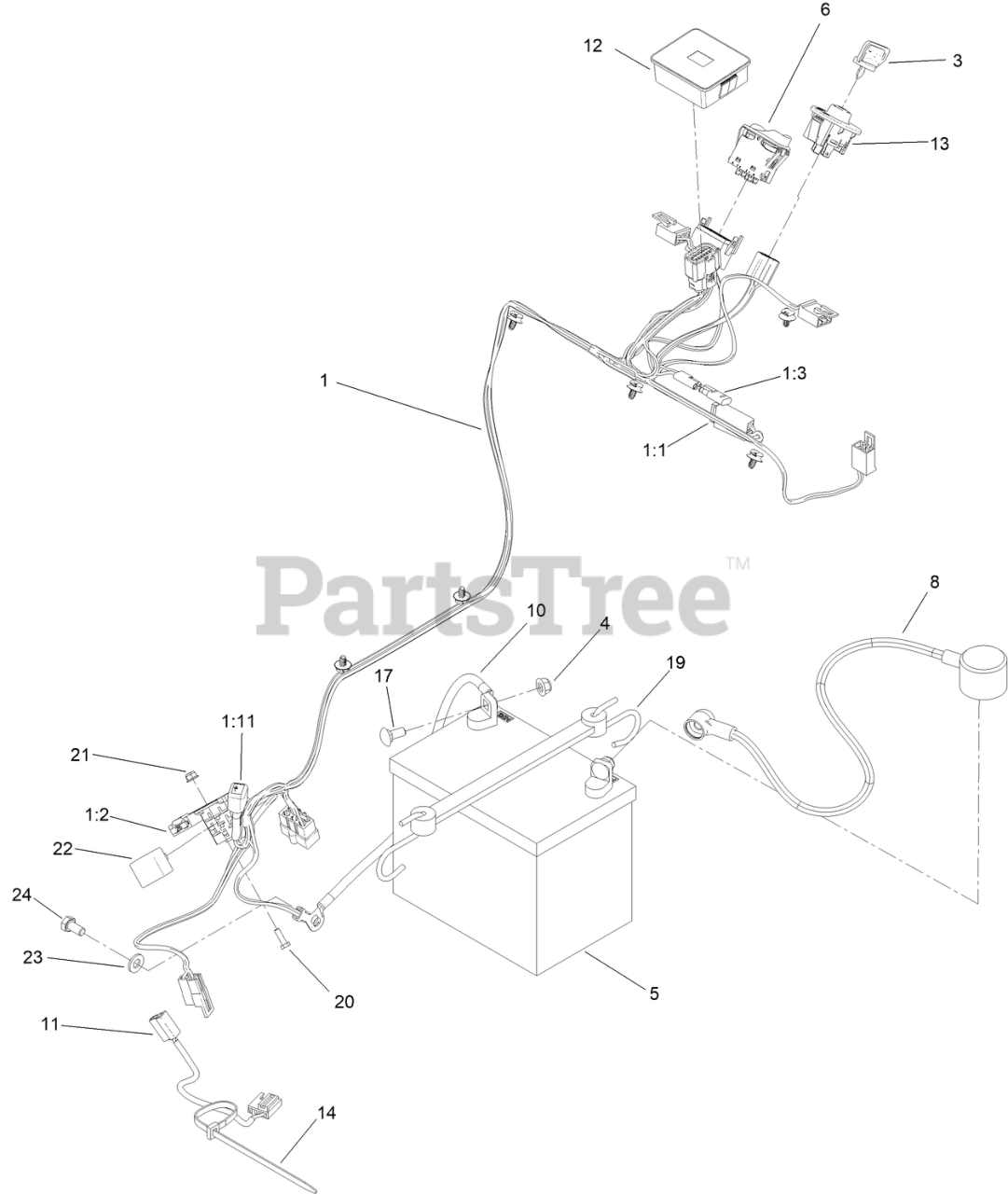

Electrical Harness Assembly Parts Diagram

  • Title

1

Toro 138-6892

HARNESS-WIRE, WASP

$300.99

$

Usually ships in 3-6 days

0

1:1

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

1:3

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

1:11

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 105-1692

BATTERY

$

$

Not available

6

Toro 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$35.99

$

In Stock, Qty 10

0

8

Toro 139-6350

CABLE-BATTERY, POS ASM
(Superseded to 115-3864)

$30.99

$

In Stock, only 1 left!

0

10

Toro 139-6358

CABLE-BATTERY, NEG ASM

$10.99

$

Usually ships in 3-6 days

0

11

Toro 126-0624

HARNESS-CLUTCH PIGTAIL

$13.99

$

Usually ships in 3-6 days

0

12

Toro 139-5561

MODULE, HOUR METER

$99.99

$

Usually ships in 3-6 days

0

13

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

20

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

21

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

22

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

23

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

24

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
