44444 - Gravely 72" Deck for Pro-Master 400 Mower GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

72" Deck for Pro-Master 400 Mower

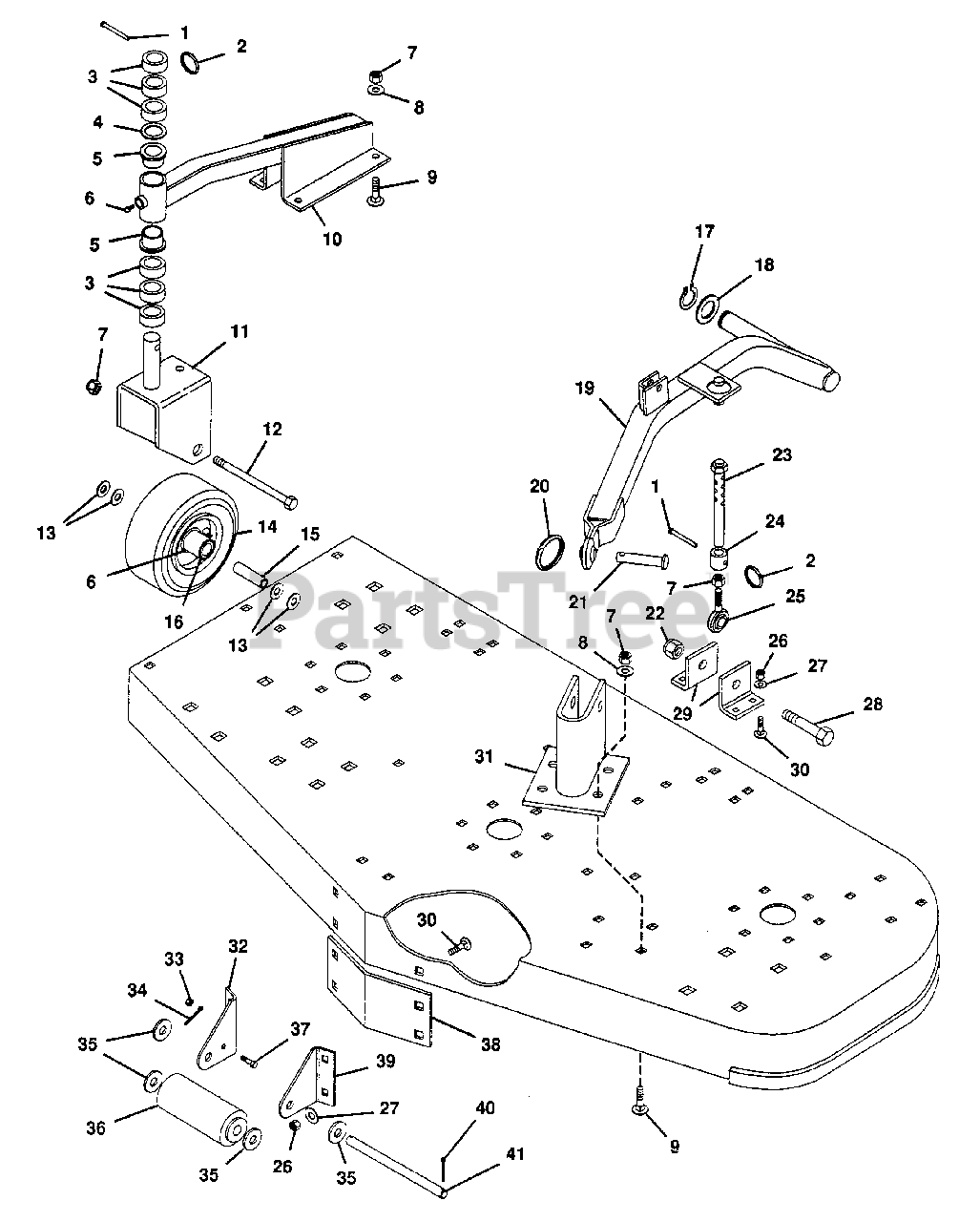

GAUGE WHEELS, ROLLERS AND HEIGHT ADJUSTMENT Parts Diagram

  • Title
1

Gravely 047197

Pin, Clevis .31x2.25
(Superseded to 06810900)

$

$

Not available

2

Gravely 051303

Ring, Split 1.25
(Superseded to 05718100)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 045138

Bush., St. 1.07x1.75x.50 Stl.
(Superseded to 05519553)

$17.99

$

In Stock, only 3 left!

0

4

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 018355

Bush., Flg. 1.03x1.75x.750 Ny.
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

6

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

7

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 120917

Bolt, 1/2-13x1.50 Rd Hd Sq Nk
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

10

Gravely 050974

Weldment, Caster Wheel Support
(Superseded to 09002000)

$113.99

$

Usually ships in 4-12 days

0

11

Gravely 050972

Weldment, Caster Fork
(Superseded to 09058200)

$187.99

$

Usually ships in 4-12 days

0

12

Gravely 445608

Bolt, Hex 1/2-13x5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

14

Gravely 052586

Wheel, Gauge
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

15

Gravely 011950

Bush., St. .506x.748x3.34 Stl.
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 011193

Bearing, Ball
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

17

Gravely 046333

Ring, Retaining
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 018954

Bearing, Thrust Race
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

19

Gravely 044796

Weldment, Mower Arm L.H.
(Superseded to 08956000)

$

$

Not available

19

Gravely 044795

Weldment, Mower Arm R.H.
(Superseded to 08955900)

$

$

Not available

20

Gravely 051313

Ring, Split 2.25
(Superseded to 05718000)

$

$

Not available

21

Gravely 047198

Pin, Clevis .87x2.40
(Superseded to 06815200)

$

$

Not available

22

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

23

Gravely 045139

Weldment, Height Adjustment
(Superseded to 08964100)

$341.99

$

Usually ships in 4-12 days

0

24

Gravely 045141

Bush., St. .765x1.25x.910 Stl.
(Superseded to 08964300)

$

$

Not available

25

Gravely 035543

Rod, End
(Superseded to 08920953)

$62.99

$

Usually ships in 4-12 days

0

26

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 271777

Bolt, Hex 3/4-10x3.5
(Superseded to 05971500)

$

$

Not available

29

Gravely 044904

Bracket, Deck Support Rear
(Superseded to 08958300)

$

$

Not available

30

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

31

Gravely 044790

Wldmnt, Mwr Mounting Arm Brckt
(Superseded to 08955600)

$

$

Not available

32

Gravely 044902

Bracket, Roller R.H.
(Superseded to 08958100)

$

$

Not available

33

Gravely 419454

Nut, Hex 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

34

Gravely 103422

Pin, Cotter .250x2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

37

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 047006

Plate, Deck Reinforcement
(Superseded to 08980100)

$

$

Not available

39

Gravely 044903

Bracket, Roller L.H.
(Superseded to 08958200)

$45.99

$

Usually ships in 4-12 days

0

40

Gravely 179128

Pin, Cotter .25x1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

41

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0
