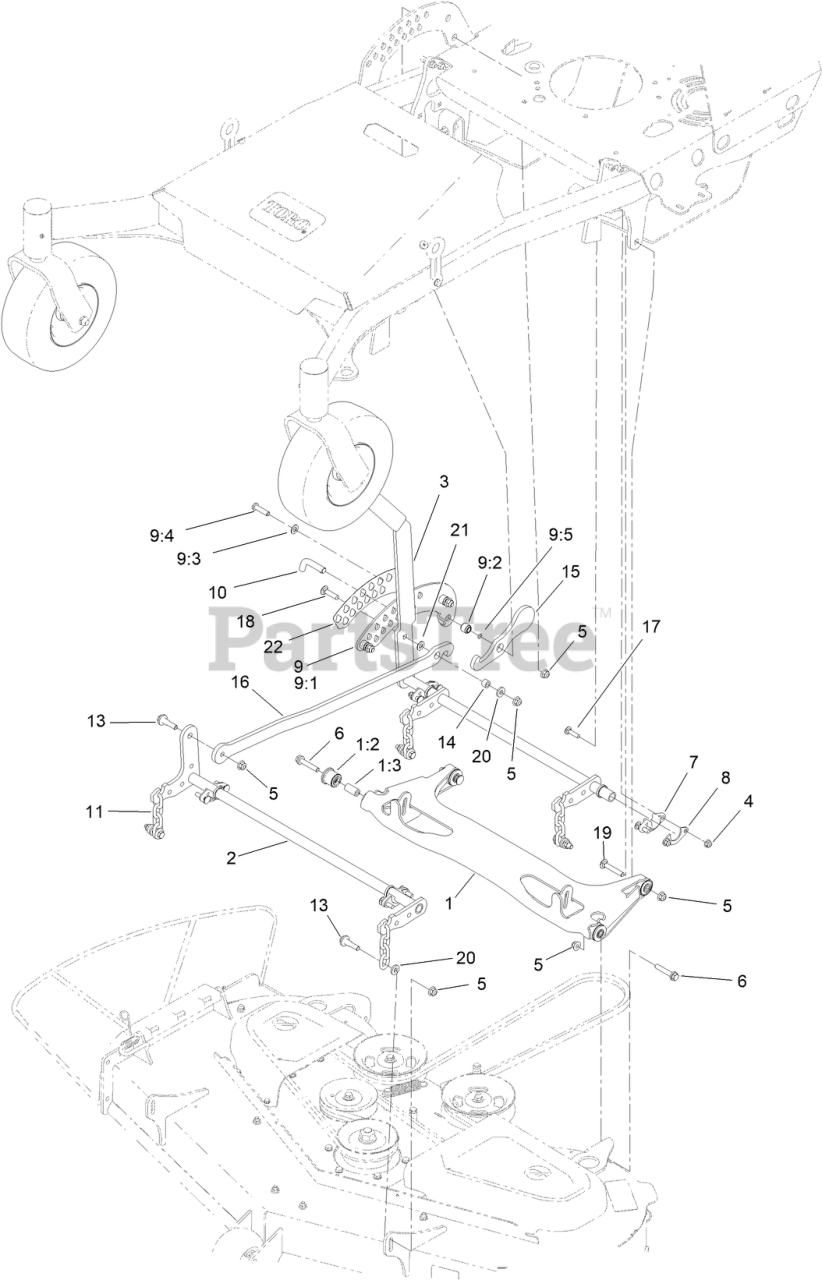

44427 - Toro 54" ProLine Walk-Behind Mower, Floating Deck (SN: 410300000 - 412999999) Deck Lift Assembly Parts Diagram

54" ProLine Walk-Behind Mower, Floating Deck

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 138-5858

DECK STRUT ASM

$246.99

$

Usually ships in 3-6 days

0

1:2

Toro 126-8360

BUSHING-RUBBER, SUSPENSION

$2.99

$

In Stock, Qty 8

0

1:3

Toro 108-6544

SPACER

$12.99

$

In Stock, Qty 8

0

2

Toro 138-5861

PIVOT ASM-FRONT

$72.99

$

Usually ships in 3-6 days

0

3

Toro 138-6869

PIVOT ASM

$116.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

7

Toro 139-5872

BEARING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

8

Toro 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 3 left!

0

9

Toro 138-6890

HOC STANDOFF ASM

$51.99

$

Usually ships in 3-6 days

0

9:1

Toro 138-1009

PLATE - HOC

$

$

Currently unavailable

9:2

Toro 138-7201

SPACER-DOUBLE STEP

$2.99

$

Usually ships in 3-6 days

0

9:3

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

9:4

Toro 95-3857

SCREW-HSBH

$4.49

$

Usually ships in 3-6 days

0

9:5

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

10

Toro 138-7203

PIN-HOC

$4.49

$

Usually ships in 3-6 days

0

11

Toro 138-7205

CHAIN-DECKLIFT, 4-LINK

$7.99

$

Usually ships in 3-6 days

0

13

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

14

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 8

0

15

Toro 138-5860

LEVER-LOCK

$19.99

$

Usually ships in 3-6 days

0

16

Toro 138-5863-03

LINK - HOC

$65.99

$

Usually ships in 3-6 days

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 15

0

20

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0

21

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

22

Toro 138-8821

DECAL-HOC

$11.99

$

Usually ships in 3-6 days

0
