44423 - Toro 48" ProLine Walk-Behind Mower, Floating Deck (SN: 406500000 - 409999999) Fuel System Assembly Parts Diagram

48" ProLine Walk-Behind Mower, Floating Deck

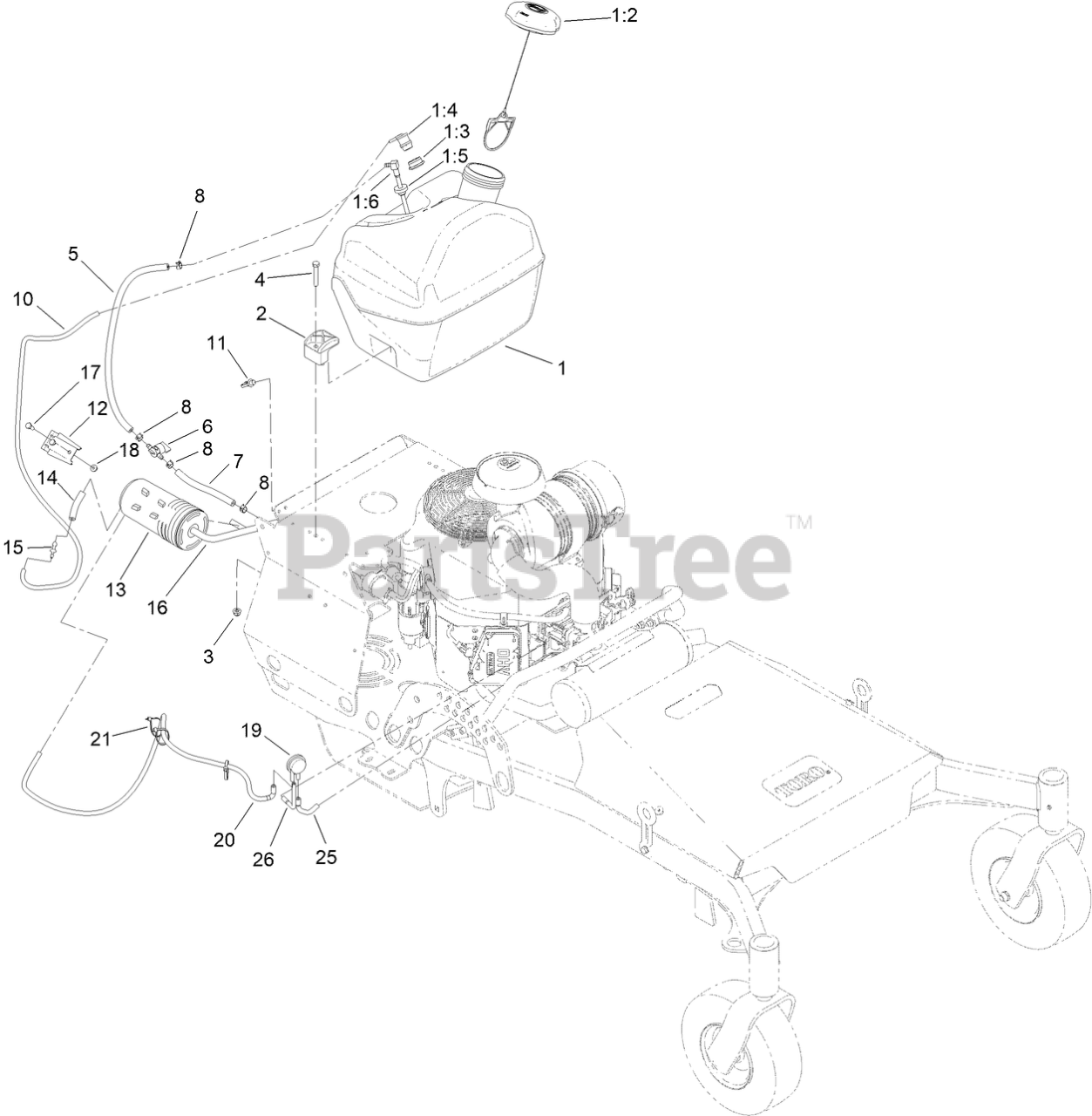

Fuel System Assembly Parts Diagram

  • Title
1

Toro 140-4343

FUEL TANK ASM, 5 GAL

$279.99

$

In Stock, only 1 left!

0

1:2

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

1:3

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

1:6

Toro 109-9364

See Supercession: 116-2459
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

$14.99

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Toro 114-4428

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

6

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

8

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Toro 126-1679

HOSE, EMISSIONS

$14.99

$

Usually ships in 3-6 days

0

11

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

12

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

13

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

14

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

15

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

16

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

20

Toro 135-3417

HOSE,VENT,FORMED

$14.99

$

Usually ships in 3-6 days

0

21

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

25

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

26

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0
