44410 - Toro 36" ProLine Walk-Behind Mower, Floating Deck (SN: 410300000 - 412899999) Engine Assembly Parts Diagram

36" ProLine Walk-Behind Mower, Floating Deck

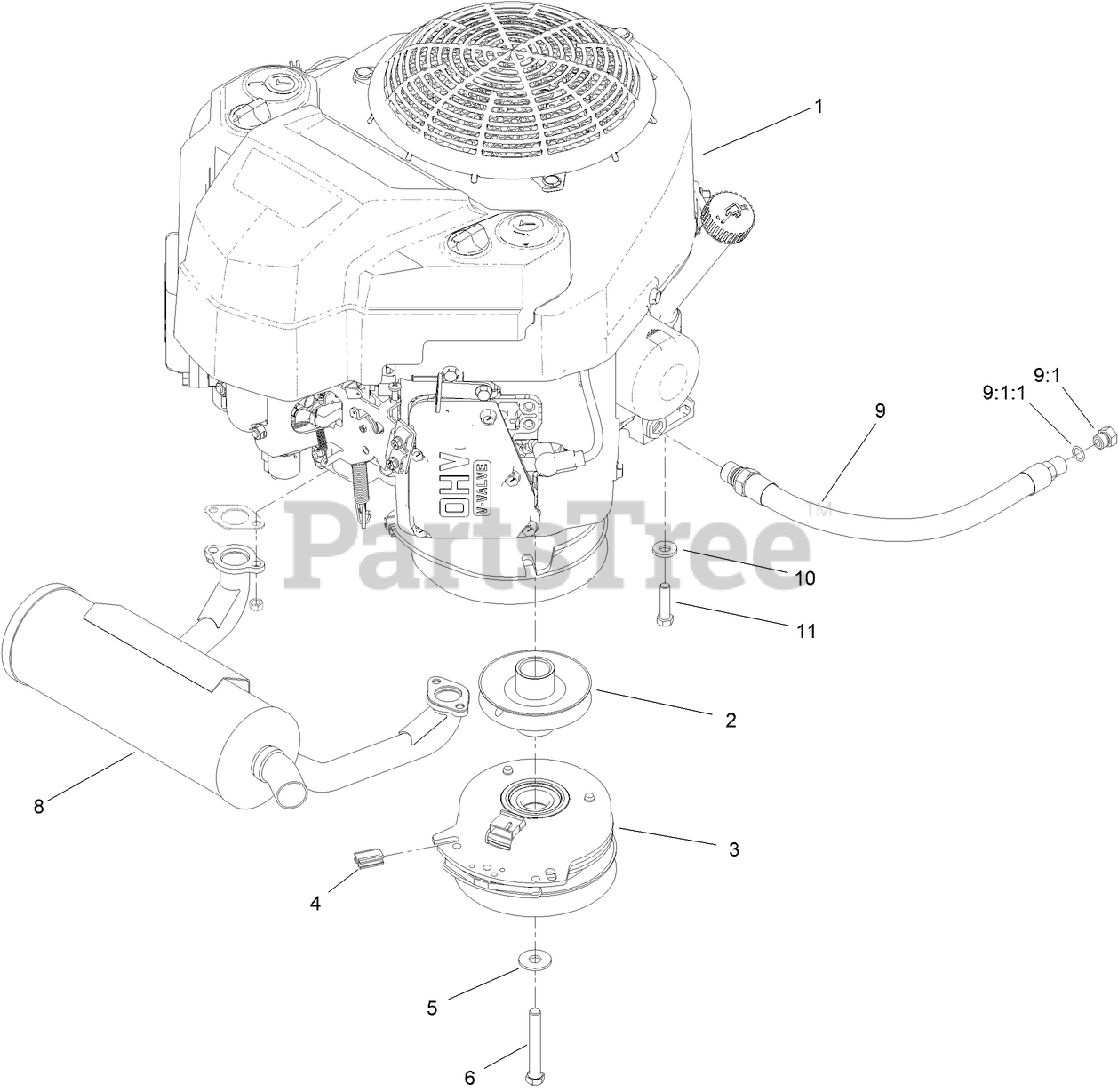

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FS481V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FS481V

Note: Obtain parts from www.kawpower.com

$

$

Not available

2

Toro 139-2879

PULLEY

$34.99

$

Usually ships in 3-6 days

0

3

Toro 127-3408

CLUTCH-PTO

$347.99

$

In Stock, only 4 left!

0

4

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 8

0

5

Toro 94-2701

WASHER-HARDENED

$1.99

$

Usually ships in 3-6 days

0

6

Toro 126-7198

SCREW-HH W/LOCTITE

$17.99

$

In Stock, only 1 left!

0

8

Toro 116-3735

MUFFLER-HORIZONTAL

$210.99

$

Usually ships in 3-6 days

0

9

Toro 116-5052

Asm-Oil Drain Hose W/Plug

$52.99

$

In Stock, only 1 left!

0

9:1

Toro 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.49

$

In Stock, only 1 left!

0

9:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
