44410 - Toro 36" ProLine Walk-Behind Mower, Floating Deck (SN: 407700000 - 408786150) LH Transmission Assembly No. 140-7712 Parts Diagram

36" ProLine Walk-Behind Mower, Floating Deck

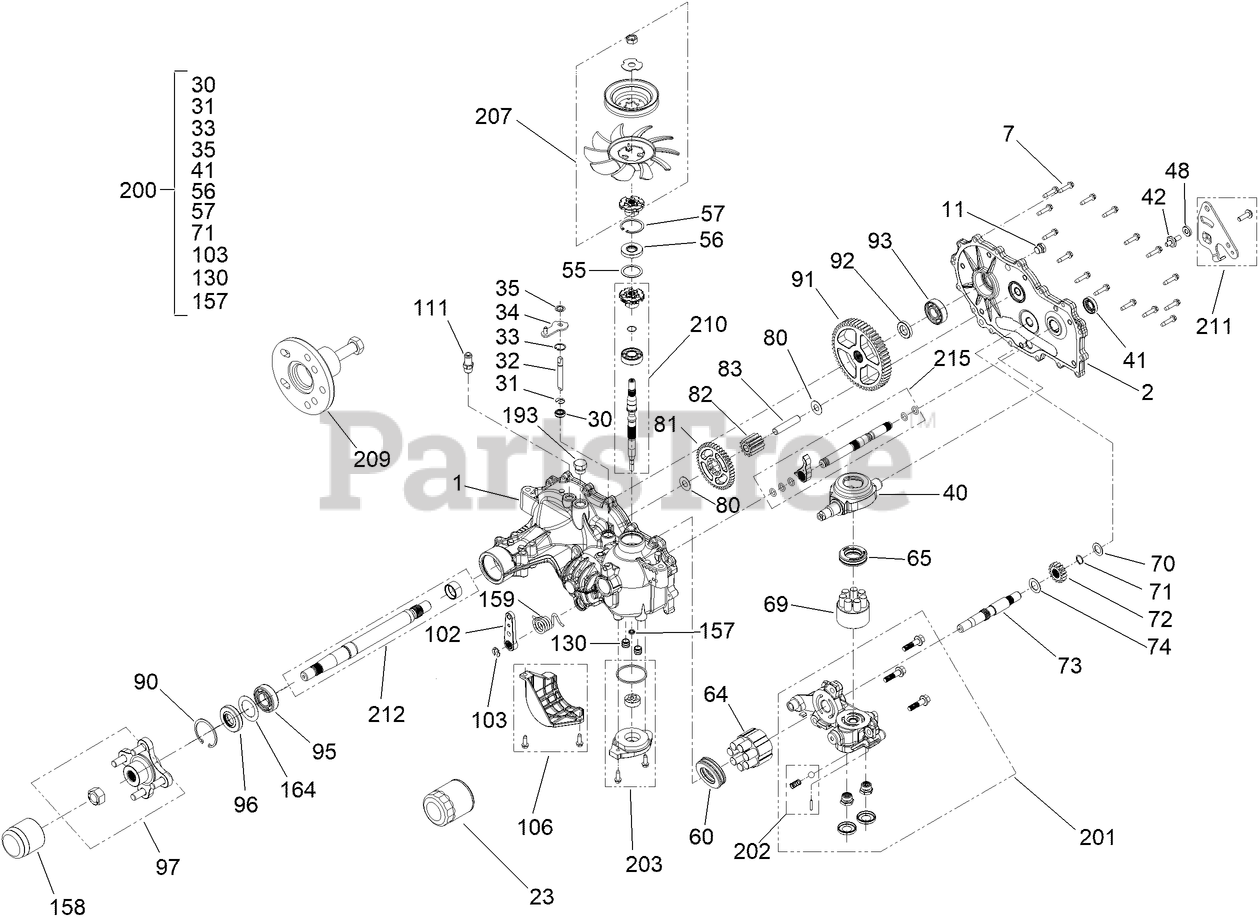

LH Transmission Assembly No. 140-7712 Parts Diagram

  • Title

1

Toro 140-9493

KIT, MAIN HOUSING RH, CHARGE

$429.99

$

Usually ships in 3-6 days

0

2

Toro 140-9494

KIT, SIDE COVER RH, CONTROL

$113.99

$

Usually ships in 3-6 days

0

7

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 135-1140

See Supercession: 353-508
(Superseded to 353-508)

$8.49

$

In Stock, Qty 5

0

13

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$28.99

$

In Stock, Qty 20+

0

30

Toro 139-7497

SEAL-LIP

$7.49

$

Usually ships in 3-6 days

0

31

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

32

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

33

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

41

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

42

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

48

Toro 139-4073

SPACER

$11.99

$

Usually ships in 3-6 days

0

55

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

56

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

57

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

60

Toro 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

64

Toro 139-4074

CYLINDER BLOCK ASM KIT

$274.99

$

Usually ships in 3-6 days

0

65

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

69

Toro 110-8561

PUMP BLOCK ASM

$383.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

71

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

72

Toro 121-5749

GEAR-16T

$13.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$178.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Toro 119-5541

WASHER

$

$

Not available

81

Toro 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

82

Toro 114-1693

GEAR-11T

$30.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

90

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

91

Toro 114-1694

GEAR-54T

$147.99

$

In Stock, only 2 left!

0

92

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Toro 135-1361

BEARING-BALL

$42.99

$

Usually ships in 3-6 days

0

95

Toro 130-8477

BEARING-BALL

$25.99

$

Usually ships in 3-6 days

0

96

Toro 104-2144

SEAL

$49.99

$

In Stock, only 1 left!

0

97

Toro 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 2 left!

0

102

Toro 125-0021

HANDLE-BRAKE

$15.99

$

In Stock, only 1 left!

0

103

Toro 131-0906

RING-RETAINING, EXT

$6.49

$

Usually ships in 3-6 days

0

106

Toro 139-7499

FILTER GUARD KIT

$36.99

$

Usually ships in 3-6 days

0

111

Toro 109-3278

ADAPTER-STRAIGHT

$131.99

$

Usually ships in 3-6 days

0

130

Toro 126-3251

TUBE-CHARGE
(Superseded to 114-8455)

$13.99

$

Usually ships in 3-6 days

0

157

Toro 126-1930

GEROTOR SEAL KIT

$26.99

$

Usually ships in 3-6 days

0

158

Toro 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

159

Toro 126-2290

SPRING, TORSION CCW

$24.99

$

Usually ships in 3-6 days

0

164

Toro 121-5745

SPACER

$10.99

$

Usually ships in 3-6 days

0

193

Toro 140-8343

PLUG

$9.49

$

Usually ships in 3-6 days

0

200

Toro 140-8351

SEAL KIT

$94.99

$

In Stock, Qty 6

0

201

Toro 114-8463

RH CENTER SECTION KIT

$478.99

$

Usually ships in 3-6 days

0

202

Toro 114-8464

CHARGE RELIEF KIT

$23.99

$

Usually ships in 3-6 days

0

203

Toro 114-8465

CHARGE KIT

$122.99

$

In Stock, only 1 left!

0

207

Toro 135-7348

FAN AND PULLEY KIT

$99.99

$

Usually ships in 3-6 days

0

209

Toro 130-8482

HUB PULLER KIT

$422.99

$

Usually ships in 3-6 days

0

210

Toro 139-7502

INPUT SHAFT KIT

$132.99

$

Usually ships in 3-6 days

0

211

Toro 139-4094

KIT, CONTROL ARM

$42.99

$

Usually ships in 3-6 days

0

212

Toro 114-8470

AXLE SHAFT KIT

$278.99

$

Usually ships in 3-6 days

0

215

Toro 140-9497

KIT, OUTBOARD, RH ROT A / LH ROT B

$118.99

$

Usually ships in 3-6 days

0
