44409 - Toro 36" ProLine Walk-Behind Mower, Floating Deck (SN: 406610921 - 407699999) Hood Assembly Parts Diagram

36" ProLine Walk-Behind Mower, Floating Deck

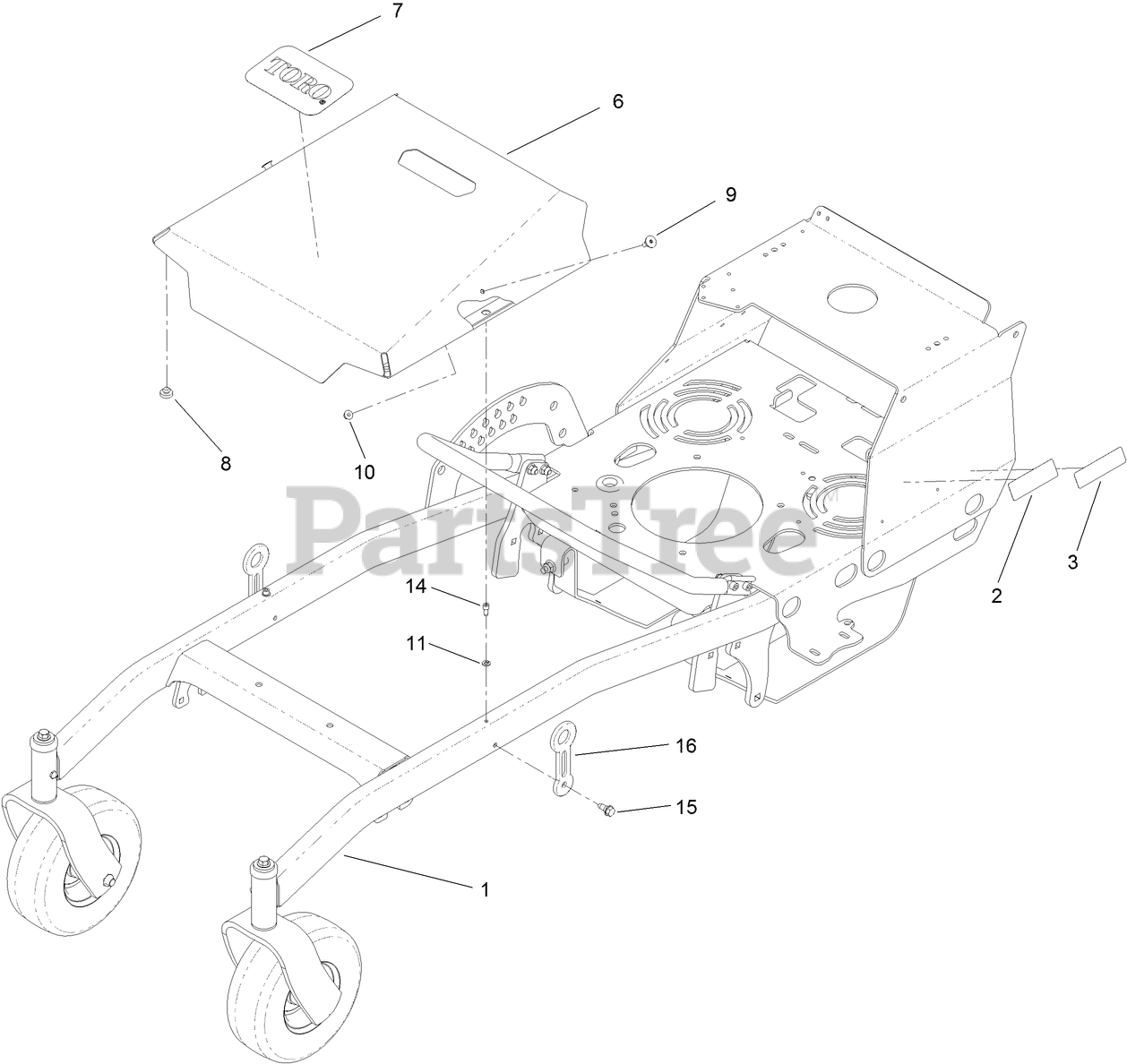

Hood Assembly Parts Diagram

  • Title

1

FRAME ASSEMBLY

Note: Not serviced separately

$

$

Not available

2

Toro 140-0172

DECAL-EMISSIONS, CARB 2020

$

$

Currently unavailable

3

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

6

Toro 140-4332-03

COVER-DECK

$117.99

$

Usually ships in 3-6 days

0

7

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0

8

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

9

Toro 125-1122

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

15

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Toro ST47182

LATCH-RUBBER

$11.99

$

In Stock, only 3 left!

0
