444 (590-444-100) - Cub Cadet Auxiliary Valve Kit att Auxiliary Valve Kit - Connections Parts Diagram

Auxiliary Valve Kit

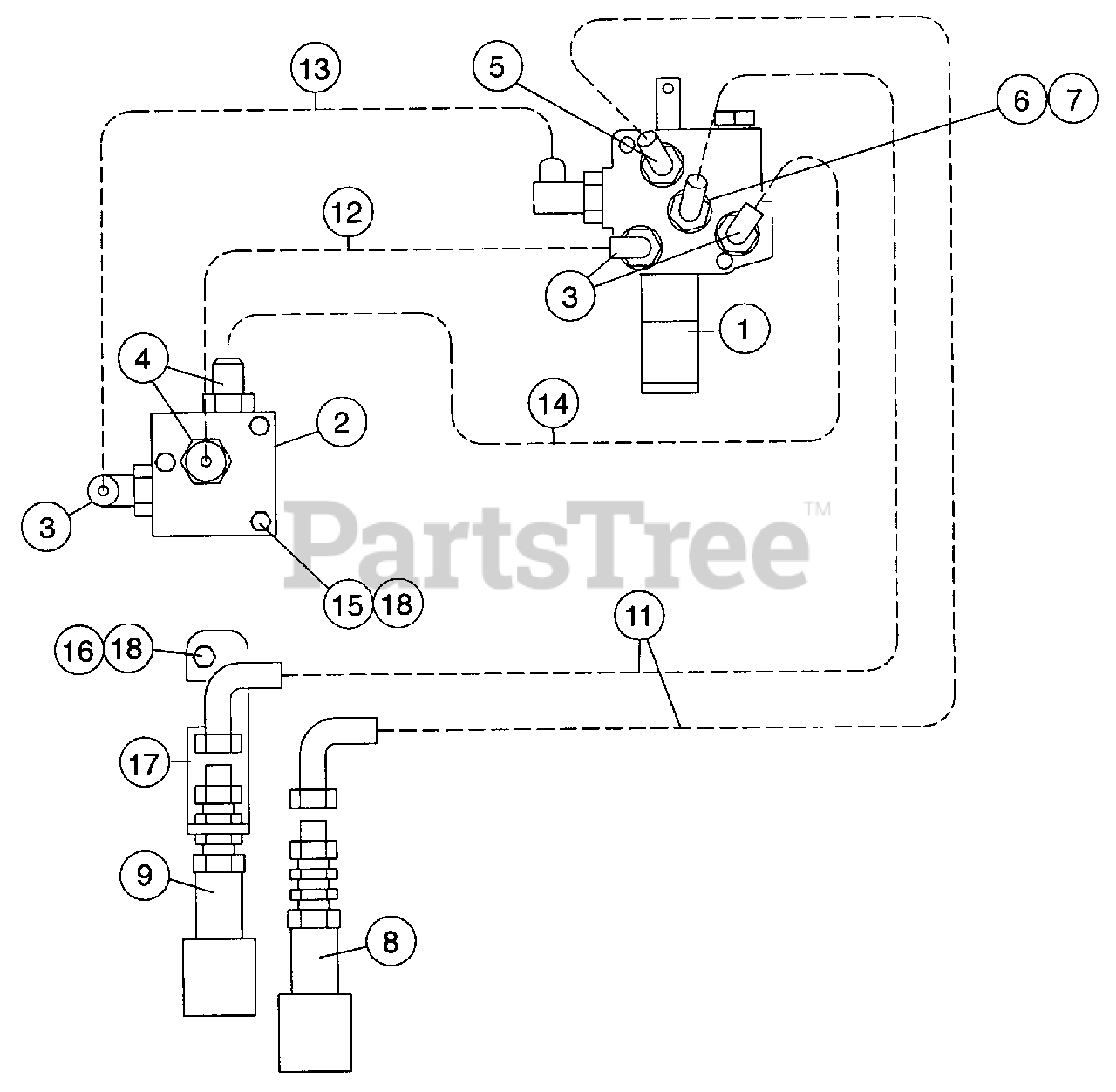

Auxiliary Valve Kit - Connections Parts Diagram

  • Title

1

Cub Cadet WM-VV-218

Valve
(Superseded to WM-VV-218P)

$

$

Not available

2

Cub Cadet WM-16-741

Manifold block

$

$

Not available

3

Cub Cadet WM-108-2-511

90° Adapt 3/4 SAE 9/16 JIC

$

$

Not available

4

Cub Cadet WM-108-2-510

STR Adapt 3/4 SAE 9/16 JIC

$

$

Not available

5

Cub Cadet WM-108-2-513

45° Adapt 9/16 SAE JIC

$

$

Not available

6

Cub Cadet WM-108-2-512

45° Adapt 9/16 JIC

$

$

Not available

7

Cub Cadet WM-108-2-443

STR Adapt 9/16 SAE JIC

$

$

Not available

8

Cub Cadet WM-108-2-509

Bulkhead 1/2 NPT 9/16 JIC

$

$

Not available

9

Cub Cadet WM-108-2-199

Quick disconnect F
(Superseded to WM-31-6007)

$153.99

$

Usually ships in 3-6 days

0

?10

Cub Cadet WM-108-2-505

Quick disconnect M
(Superseded to WM-31-6007)

Note: Not Shown

$153.99

$

Usually ships in 3-6 days

0

11

Cub Cadet WM-108-3-594

Hose 1/4 x 58

$

$

Not available

12

Cub Cadet WM-108-3-596

Hose 1/4 x 34

$

$

Not available

13

Cub Cadet WM-108-3-597

Hose 1/4 x 36

$

$

Not available

14

Cub Cadet WM-108-3-595

Hose 1/4 x 21

$

$

Not available

15

Cub Cadet WM-21-414

Bolt M8 - 1.25 x 50mm

$

$

Not available

16

Cub Cadet WM-21-606

Bolt M8 - 1.25 x 12mm

$

$

Not available

17

Cub Cadet WM-108-6-240

Quick disconnect bracket

$

$

Not available

18

Cub Cadet WM-21-174

Lockwasher
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?19

Cub Cadet WM-21-279

Quick disconnect plug

$

$

Not available
