444 (190-444-100) - Cub Cadet 46" Mower Bagger Adapter 46" Mower Bagger Adapter Parts Diagram

46" Mower Bagger Adapter

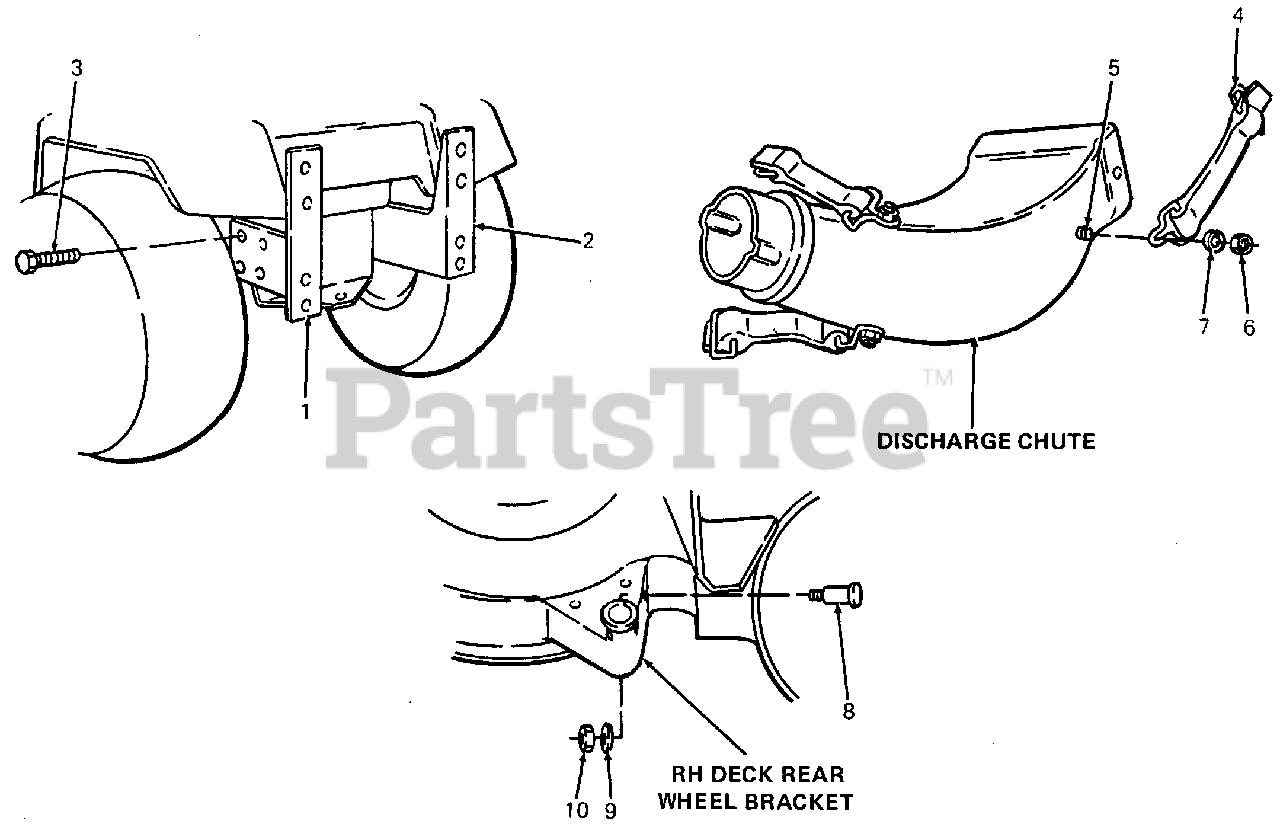

46" Mower Bagger Adapter Parts Diagram

  • Title
1

Cub Cadet 703-1400

Bracket, LH - Bagger Support

$

$

Not available

2

Cub Cadet 703-1401

Bracket, RH - Bagger Support

$

$

Not available

3

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 723-3052

Strap Assy, Retainer

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 736-0175

Washer, Spring, .265 ID X .562 OD
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 738-0455

Screw, Shoulder
(Superseded to 938-0455)

$

$

Not available

9

Cub Cadet 736-0213

Washer, Bell

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0
