44346 - Gravely 32" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

32" Deck for Pro-Walk Mower

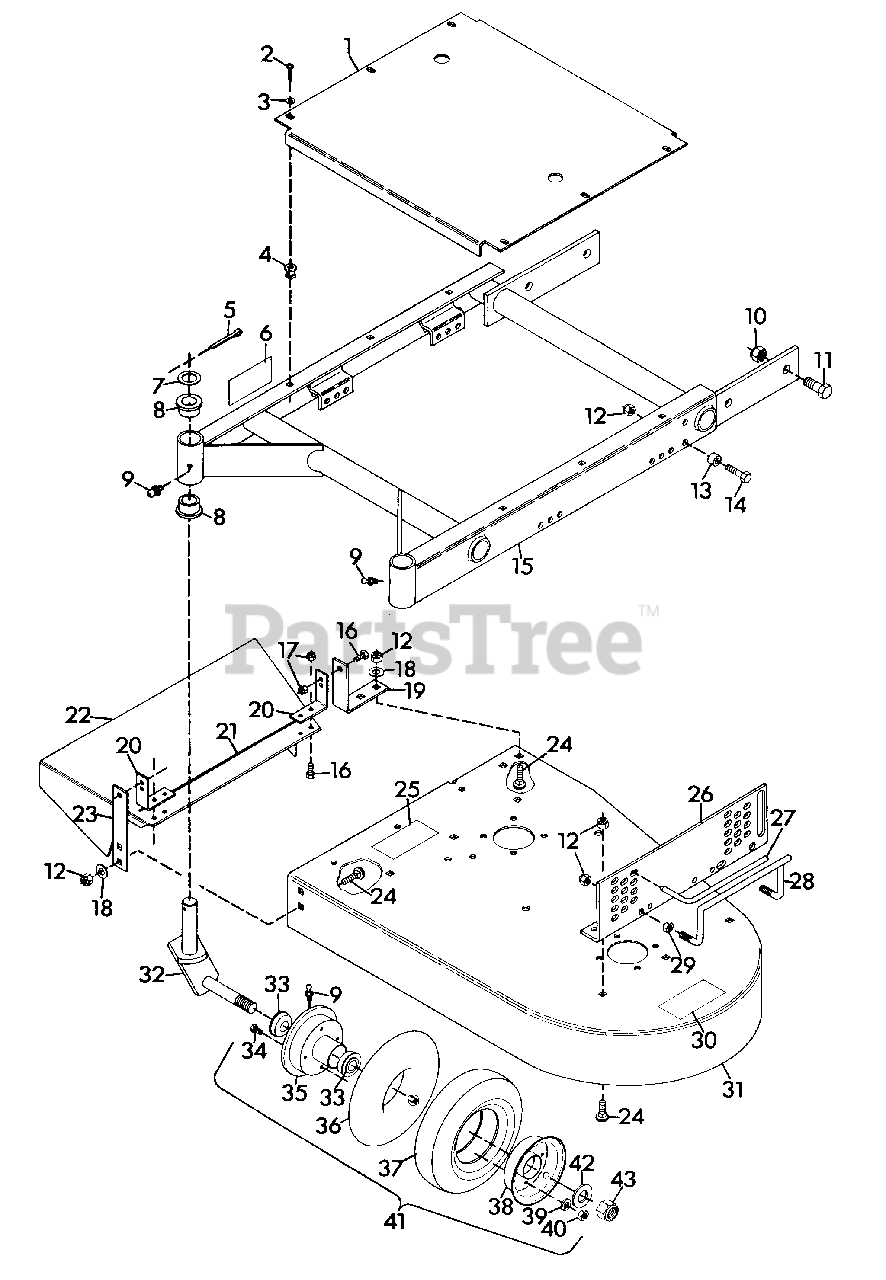

MOWER FRAME Parts Diagram

  • Title
1

Gravely 044489

COVER, BELT
(Superseded to 08826300)

$

$

Not available

2

Gravely 167260

SCREW, TAPPING 1/4-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

3

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 103409

PIN, COTTER .187X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

6

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

8

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

9

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

10

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 271547

BOLT, HEX 5/8-11X1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 021076

BUSHING .391X.622X.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

14

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

15

Gravely 044431

WELDMENT, FRAME
(Superseded to 21268200)

$

$

Not available

16

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 044434

BRACKET
(Superseded to 08825500)

$

$

Not available

20

Gravely 038951

BRACKET
(Superseded to 08809800)

$

$

Not available

21

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

22

Gravely 038952

CHUTE, DISCHARGE
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

23

Gravely 038949

BRACKET
(Superseded to 08809600)

$22.99

$

In Stock, only 1 left!

0

24

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

25

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 044481

BRACKET, MOWER SIDE SUPPORT L.H.
(Superseded to 08950500)

$

$

Not available

NS

Gravely 044480

BRACKET, MOWER SIDE SUPPORT R.H.
(Superseded to 08950400)

$

$

Not available

27

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

28

Gravely 044507

HANDLE
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

29

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

31

Gravely 044430

WELDMENT, 32" PRO DECK
(Superseded to 08825400)

$176.99

$

Usually ships in 4-12 days

0

32

Gravely 044479

WELDMENT, CASTER FORK
(Superseded to 20809300)

$

$

Not available

33

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

34

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

35

Gravely 037825

WHEEL, HALF
(Superseded to 20637900)

$

$

Not available

36

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

37

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

38

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

39

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

40

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

41

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

42

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

NS

Gravely 044521

DECAL, PRO-32
(Superseded to 05212200)

$

$

Not available
