442 (190-442-100) - Cub Cadet 40" Rear PTO Tiller Gearbox Assembly Parts Diagram

40" Rear PTO Tiller

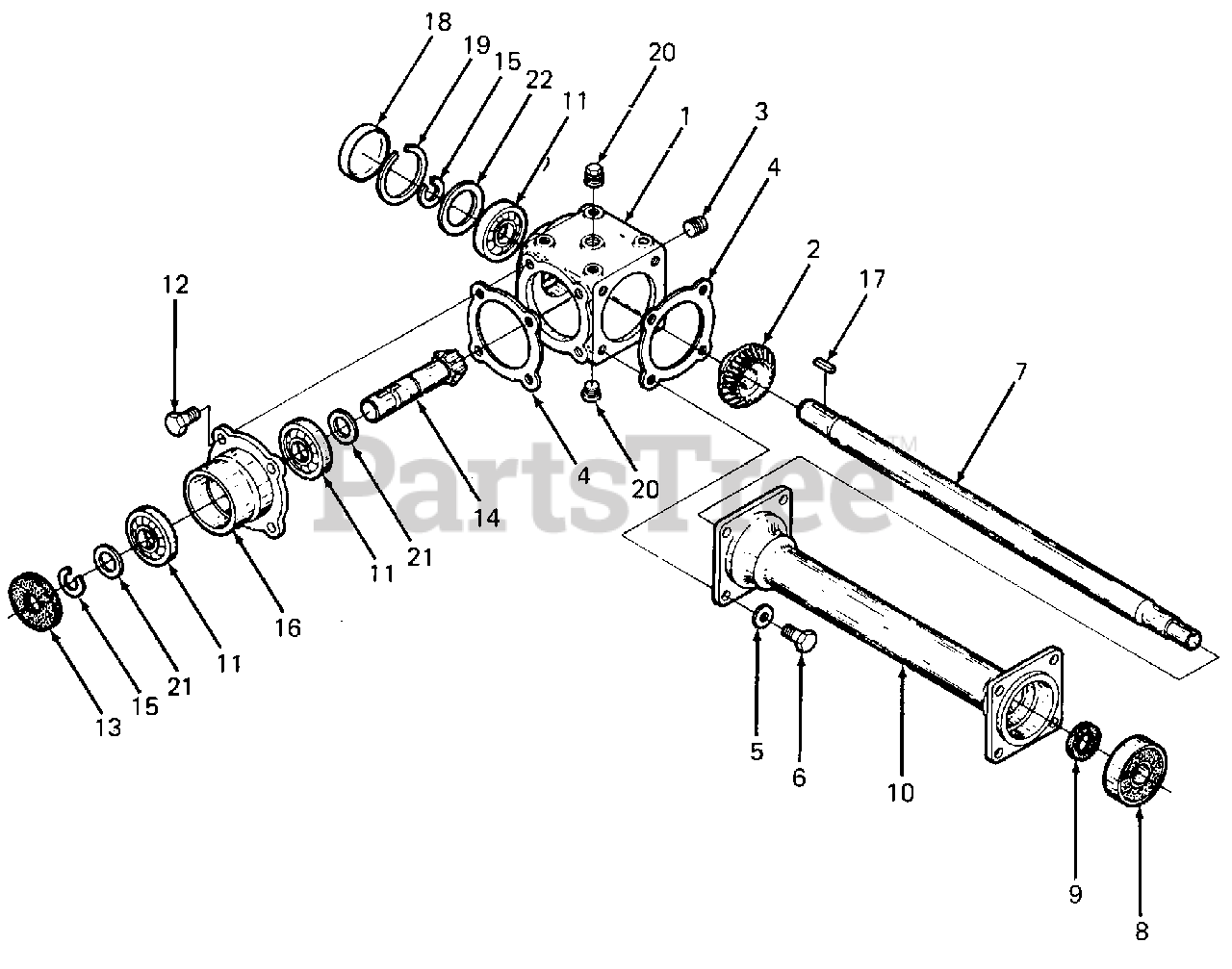

Gearbox Assembly Parts Diagram

  • Title

Cub Cadet BU-70606

Gearbox Assy

$

$

Currently unavailable

1

Cub Cadet BU-70616

Casing

$

$

Currently unavailable

2

Cub Cadet BU-70617

Crownwheel 25 Tooth

$

$

Not available

3

Cub Cadet BU-70292

Plug

$

$

Not available

4

Cub Cadet BU-70375

Gasket

$

$

Currently unavailable

5

Cub Cadet BU-70161

Washer

$

$

Currently unavailable

6

Cub Cadet BU-70618

Screw, Hex Cap, M10 X 20 mm Lg GR 8.8

$

$

Currently unavailable

7

Cub Cadet BU-70619

Shaft

$

$

Currently unavailable

8

Cub Cadet BU-70620

Bearing

$

$

Currently unavailable

9

Cub Cadet BU-70621

Seal, Oil, 30 mm X 47 mm X 7 mm

$

$

Not available

10

Cub Cadet BU-70622

Extension

$

$

Currently unavailable

11

Cub Cadet BU-70382

Bearing

$

$

Currently unavailable

12

Cub Cadet BU-70462

Screw, Hex Cap, M10 X 22 Lg GR 8.8

$

$

Currently unavailable

13

Cub Cadet BU-70380

Seal, Oil, 25 mm X 62 mm X 7 mm

$

$

Not available

14

Cub Cadet BU-70623

Pinion, 9 Tooth Bevel

$

$

Not available

15

Cub Cadet BU-70624

External Circlip

$

$

Currently unavailable

16

Cub Cadet BU-70625

Extension

$

$

Currently unavailable

17

Cub Cadet BU-70626

Key, Parallel, 8 mm X 7 mm X 25 mm

$

$

Not available

18

Cub Cadet BU-70267

Cap

$

$

Not available

19

Cub Cadet BU-70291

Internal Circlip

$

$

Not available

20

Cub Cadet BU-70627

Plug

$

$

Currently unavailable

21

Cub Cadet BU-70365

Shim, .3 mm Thick

$

$

Not available

Cub Cadet BU-70366

Shim, .4 mm Thick

$

$

Currently unavailable

Cub Cadet BU-70367

Shim, .5 mm Thick

$

$

Currently unavailable

Cub Cadet BU-70368

Shim, 1.0 mm Thick

$

$

Currently unavailable

22

Cub Cadet BU-70628

Shim, .3 mm Thick

$

$

Currently unavailable

Cub Cadet BU-70629

Shim, .4 mm Thick

$

$

Currently unavailable

Cub Cadet BU-70630

Shim, .5 mm Thick

$

$

Not available

Cub Cadet BU-70631

Shim, 1.0 mm Thick

$

$

Not available
