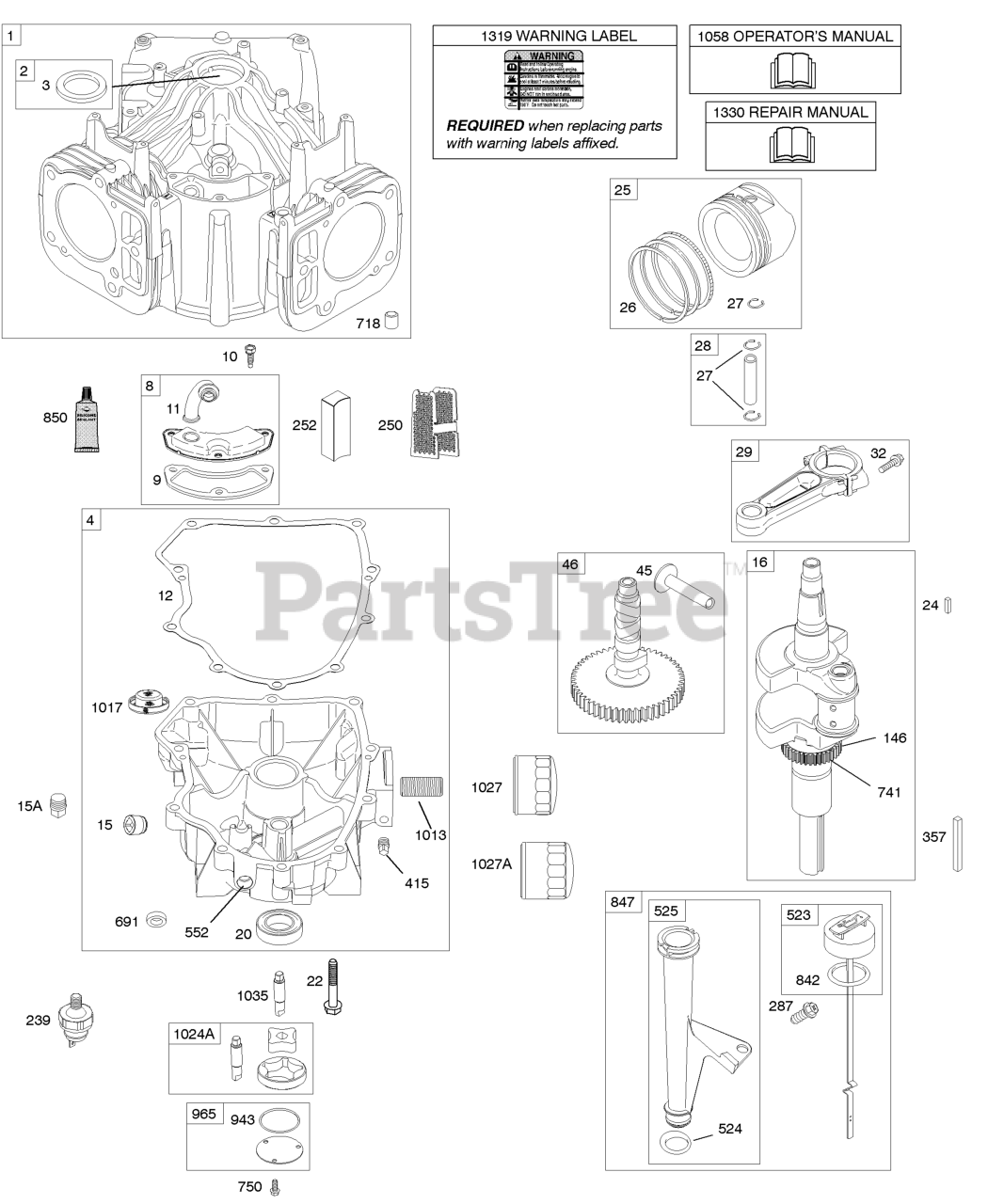

441777-0124-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Pistons, Rings, Connecting Rods Parts Diagram

Vertical Engine

Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Pistons, Rings, Connecting Rods Parts Diagram

  • Title

1

Briggs & Stratton 793564

Cylinder Assembly
(Superseded to 594970)

$398.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 499585

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

$278.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 792185

Breather Assembly

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

$14.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

$385.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 792023

PISTON ASSEMBLY

Note: (Standard)

$159.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 792072

Piston Assembly

Note: (.020 Oversize)

$172.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 694008

Ring Set

Note: (.020 Oversize) Used Before Code Date 05071900

$59.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792026

SET, Ring

Note: (Standard) Used After Code Date 05071800

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792073

Ring Set

Note: (.020 Oversize) Used After Code Date 05071800

$61.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 694004

Ring Set

Note: (Standard) Used Before Code Date 05071900

$

$

Not available

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 690229

Pin-Piston

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: (Standard)

$18.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 790562

CAMSHAFT
(Superseded to 797242)

$122.99

$

In Stock, Qty 16

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

250

Briggs & Stratton 690957

Retainer-Breather

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

$7.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 691108

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 696999

Screw

Note: (Oil Pump Cover)

$29.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$47.99

$

In Stock, only 2 left!

0

850

Briggs & Stratton 100100

Sealant-Liquid
(Superseded to 100106)

$14.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, Qty 9

0

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

$

$

Not available

1024A

Briggs & Stratton 794416

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932S

FILTER, Oil

$12.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 691042

Shaft-Pump
(Superseded to 794644)

Note: Used Before Code Date 07022600

$35.99

$

In Stock, only 1 left!

0

1058

Briggs & Stratton 278776TRI

Operator's Manual
(Superseded to 381258TRI)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 273521

Repair Manual

$34.99

$

In Stock, only 1 left!
