4417 (2690051) - Massey Ferguson 44" Rear-Engine Riding Mower, 17hp Frame Group Parts Diagram

44" Rear-Engine Riding Mower, 17hp

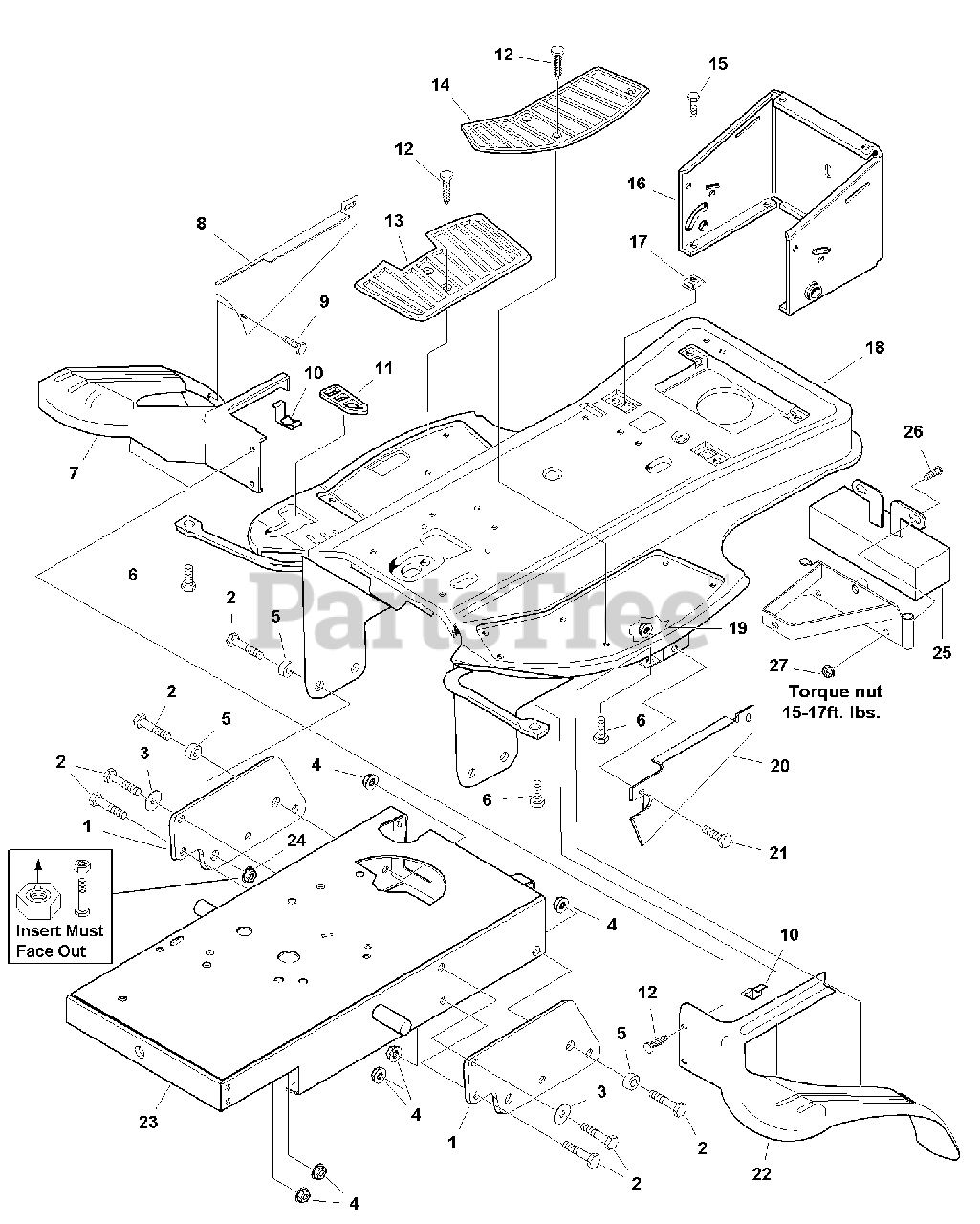

Frame Group Parts Diagram

  • Title

1

Simplicity 1722359ASM

PLATE, Pivot

$30.99

$

Usually ships in 2-12 days

0

2

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960071SM

WASHER, 3/8, Black

$8.49

$

In Stock, only 1 left!

0

4

Simplicity 1928352SM

NUT, Hex Flange Lock, Black
(Superseded to 703793)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

6

Simplicity 1931648SM

CAPSCREW, Hex Head, Flange Lock, 5/16-18 x 1/2, Black
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1723144SM

SHROUD, Wheel, RH

$113.99

$

Usually ships in 2-12 days

0

8

Simplicity 1723290ASM

SKIRT, Side, RH

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960001SM

CAPSCREW, Hex Washer Head, Plastite, # 10-14 x 5/8, Black
(Superseded to 703062)

$4.49

$

In Stock, Qty 8

0

10

Simplicity 1723691SM

CLIP, Shroud

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1715015SM

PLUG, Hole

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

13

Simplicity 1714418SM

PAD, Footrest, RH

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 1714417SM

PAD, Footrest, LH

$12.99

$

Usually ships in 2-12 days

0

15

Simplicity 1930591SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4, Black
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

16

Simplicity 1722453ASM

WRAPPER, Rear Frame

$75.99

$

Usually ships in 2-12 days

0

17

Simplicity 1935255SM

NUT, Speed, Lug, 5/16-18

$3.49

$

In Stock, only 3 left!

0

18

Simplicity 1722514ASM

FRAME ASSEMBLY, Rear

$535.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960294SM

NUT, Hex, Flange, 1/4-20, Black
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1723289ASM

SKIRT, Side, LH

$21.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8, Black
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1723145SM

SHROUD, Wheel, LH

$113.99

$

Usually ships in 2-12 days

0

23

Simplicity 1722494ASM

FRAME ASEMBLY, Transmission

$319.99

$

Usually ships in 2-12 days

0

24

Simplicity 2860681SM

NUT, Hex Lock Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

25

Simplicity 1723873ASM

WEIGHT & TAB ASSEMBLY, 75 lbs.

$427.99

$

Usually ships in 2-12 days

0

26

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

27

Simplicity 1927557SM

NUT, Hex, Flange Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0
