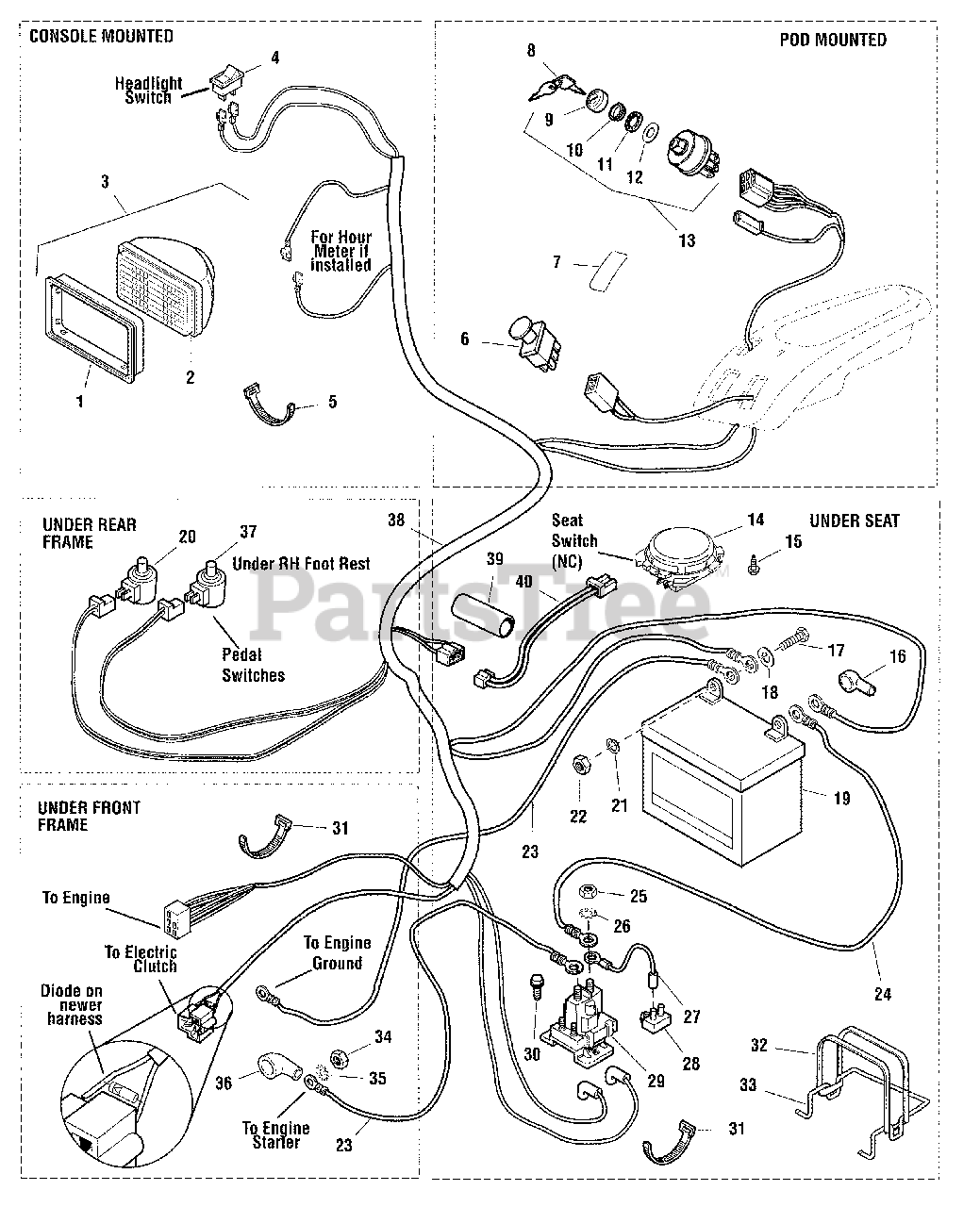

4417 (2690051) - Massey Ferguson 44" Rear-Engine Riding Mower, 17hp Electrical Group Parts Diagram

44" Rear-Engine Riding Mower, 17hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1719227SM

BEZEL, Headlight

$

$

Not available

2

Simplicity 1719230SM

HEADLIGHT HOUSING

$48.99

$

Usually ships in 2-12 days

0

3

Simplicity 1719230SM

HEADLIGHT ASSEMBLY (Includes Ref. Nos. 1 & 2)

$48.99

$

Usually ships in 2-12 days

0

4

Simplicity 1703799SM

SWITCH, Rocker, Headlight

$31.99

$

In Stock, only 1 left!

0

5

Simplicity 2832747SM

TIE, Self Locking, 3-5/8, Black

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1722887SM

SWITCH, PTO, Push/Pull, w/Symbols

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1717163SM

KEYS, Ignition

$8.99

$

In Stock, Qty 20+

0

9

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

10

Simplicity 1717549SM

NUT, Hex, 5/8-32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960547SM

LOCKWASHER, Intrnal Tooth, 5/8, Thin, Black

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 2101025SM

WASHER, 5/8, Thin, Black

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition (Includes Ref. Nos. 8, 9, 10, 11, & 13)

$32.99

$

In Stock, Qty 20+

0

14

Simplicity 1714771SM

SWITCH, Seat, Gray Switch, Gray Retainer

Note: (Lancer 17HP - SERIAL NO. 02000-02016, Lancer 17 HP Export - SERIAL NO. 02100-02394 & 4417 17HP - SERIAL NO. 02100-02394 Only)

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 1718981SM

SWITCH, Seat, Gray Switch, Black Retainer

$21.99

$

In Stock, only 1 left!

0

15

Simplicity 1960536SM

CAPSCREW, Hex Head Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 10

0

17

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

20

Simplicity 1720401SM

SWITCH, Push,Grey, Pedal Switch, (Domestic Only)

$14.99

$

In Stock, only 1 left!

0

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1703484SM

CABLE, # 6 x 42-1/2" Long, 2 Ring Terminals

$

$

Not available

24

Simplicity 1716549SM

CABLE, # 6 x 10" Long, 2 Ring Terminals
(Superseded to 1752685YP)

$11.99

$

In Stock, only 1 left!

0

25

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1665237SM

WIRE, 12GA, 6" Long Red

$11.99

$

In Stock, Qty 7

0

28

Simplicity 1665238SM

BREAKER, Circuit, 12Volt, 20Amps

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 1686981SM

SOLENOID, 4 Pole 12Volt
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

30

Simplicity 1927429SM

CAPSCREW, Hex Head Taptite, 14-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Simplicity 1701011SM

TIE, Self Locking, 7-5/16 Long, Black

$5.49

$

In Stock, only 2 left!

0

32

Simplicity 1665872SM

STRAP, Black Rubber

$11.99

$

In Stock, Qty 7

0

33

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

34

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

35

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 2122023SM

COVER, Terminal, Red

$5.99

$

In Stock, Qty 12

0

37

Simplicity 1720411SM

SWITCH, Push, Black, Pedal Switch

$14.99

$

In Stock, only 1 left!

0

38

Simplicity 1724903SM

HARNESS, Wiring

$128.99

$

In Stock, only 1 left!

0

39

Simplicity 1715014SM

SHRINK TUBE

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1715010SM

WIRE ASSEMBLY, 16GA, 16" Long, Black/Tan

$8.49

$

Usually ships in 2-12 days

0
