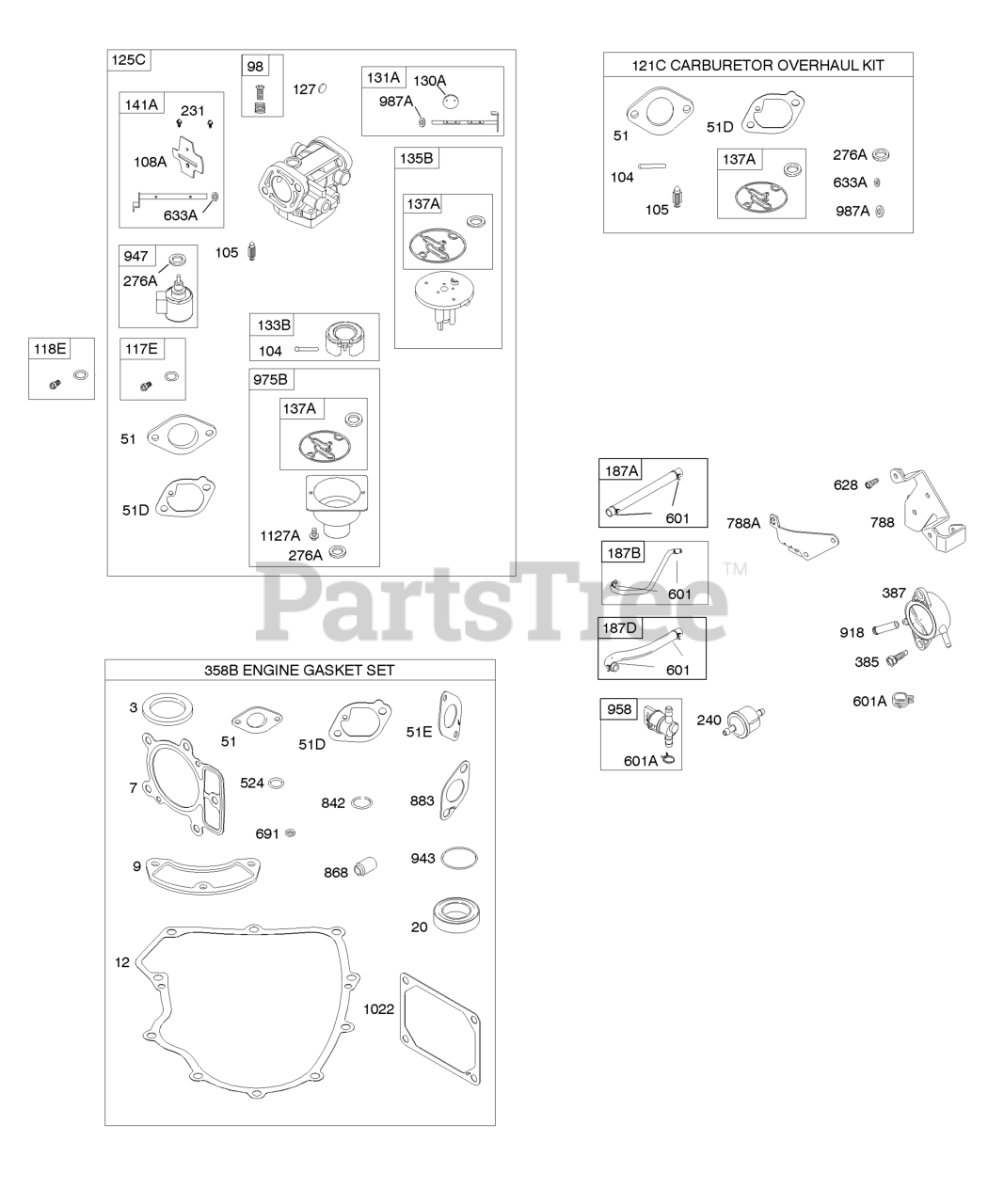

441677-0112-B1 - Briggs & Stratton Vertical Engine Carburetor, Gasket Set - Engine, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Gasket Set - Engine, Kit - Carburetor Overhaul Parts Diagram

  • Title

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

GASKET, Cylinder Head

$24.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 690937

Gasket-Breather

$8.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 699803

GASKET, Intake

$4.49

$

In Stock, only 1 left!

0

51D

Briggs & Stratton 699800

GASKET, Intake

$3.49

$

In Stock, only 3 left!

0

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108A

Briggs & Stratton 699808

VALVE, Choke

$8.49

$

Usually ships in 2-12 days

0

117E

Briggs & Stratton 791406

JET, Main

Note: (Standard)

$18.99

$

In Stock, only 1 left!

0

118E

Briggs & Stratton 699820

JET, Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121C

Briggs & Stratton 699814

KIT, Carburetor Overhaul

$59.99

$

In Stock, only 1 left!

0

125C

Briggs & Stratton 699807

Carburetor

$262.99

$

In Stock, only 2 left!

0

127

Briggs & Stratton 699810

PLUG, Welch

$5.49

$

In Stock, Qty 8

0

130A

Briggs & Stratton 699809

VALVE, Throttle

$11.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 699812

KIT, Throttle Shaft

$

$

Not available

133B

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135B

Briggs & Stratton 792022

Tube-Fuel Transfer

$49.99

$

In Stock, only 1 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141A

Briggs & Stratton 699811

Kit-Choke Shaft

$

$

Not available

187A

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 791872

Line-Fuel

Note: (Formed Hose)

$18.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

358B

Briggs & Stratton 699823

GASKET SET, Engine

$100.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

628

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump Bracket) Used Before Code Date 06081500

$3.49

$

In Stock, Qty 20+

0

633A

Briggs & Stratton 695414

Seal-Choke/Thr Shaft
(Superseded to 806131)

$5.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

788

Briggs & Stratton 691039

Bracket-Fuel Pump

Note: Used Before Code Date 06072800

$24.99

$

In Stock, only 1 left!

0

788A

Briggs & Stratton 793145

Bracket-Fuel Pump

Note: Used After Code Date 06072700

$20.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

918

Briggs & Stratton 694000

Hose-Vacuum

Note: Used Before Code Date 06072800

$4.99

$

In Stock, Qty 20+

0

918

Briggs & Stratton 793147

Hose-Vacuum

Note: Used After Code Date 06072700

$7.99

$

In Stock, Qty 18

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

947

Briggs & Stratton 699728

Solenoid-Fuel

$185.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

Note: (Plastic)

$8.49

$

In Stock, Qty 20+

0

975B

Briggs & Stratton 699502

BOWL, Float

$45.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1127A

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0
