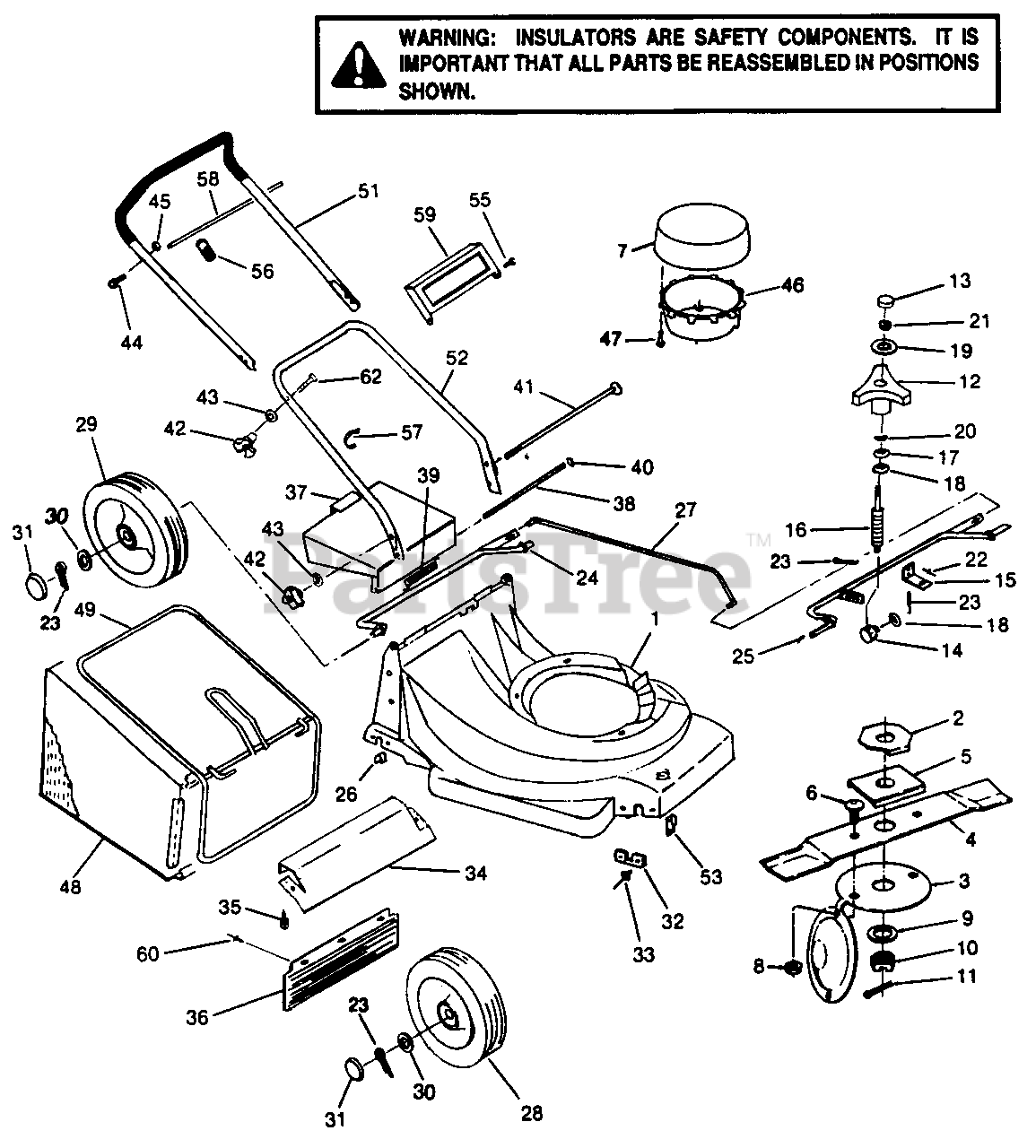

4416 (181-124K736) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Home Quarters) Parts Parts Diagram

Walk-Behind Mower, Electric

Parts Parts Diagram

  • Title

1

MTD 782-0005

Deck- 16" Molded

$

$

Not available

2

MTD 748-0343

Blade Adapter

$

$

Not available

3

MTD 731-1217

Blade Insulator

$

$

Not available

4

MTD 742-0566

Blade- 16" Electric

$

$

Currently unavailable

5

MTD 731-1218

Insulator - Adaptor

$

$

Not available

6

MTD 710-0451

Carriage Bolt 5/16-18 x 3/4"

$4.49

$

In Stock, Qty 20+

0

7

MTD 731-1214

Motor Cover Top

$

$

Not available

8

MTD 712-0437

Keps Nut 5/16-18

$

$

Not available

9

MTD 736-0462

Washer (Special Heat Treated)

$

$

Not available

10

MTD 712-0401

Slotted Hex Nut 1/2-20

$

$

Currently unavailable

11

MTD 714-0228

Cotter Pin 3/32 x 1" (Special- Stainless Steel)

$

$

Not available

12

MTD 720-0259

Knob - Height Adjust

$

$

Currently unavailable

13

MTD 720-0260

Plug - Height Adjust Knob

$

$

Not available

14

MTD 712-0408

Trunion - Height Adjust

$

$

Currently unavailable

15

MTD 782-0510

Bracket-Screw Brace

$

$

Currently unavailable

16

MTD 717-1730

Screw Shatt -Height Adjust

$

$

Not available

17

MTD 736-0467

Washer

Note: (Special)

$

$

Not available

18

MTD 736-0470

Washer
(Superseded to 936-0275)

Note: (Special)

$

$

Not available

19

MTD 736-0471

Washer

Note: (Special)

$

$

Not available

20

MTD 736-0472

Spring Washer

Note: (Special)

$

$

Currently unavailable

21

MTD 712-0409

Nut-Metric

Note: (Special)

$

$

Not available

22

MTD 728-0143

Blind Rivet
(Superseded to 928-0180)

$

$

Not available

23

MTD 714-0507

Cotter Pin 3/32 x 3/4"

$4.49

$

In Stock, Qty 12

0

24

MTD 611-0004

Rear Axle Assembly

$

$

Currently unavailable

25

MTD 611-0025

Front Axle Assembly

$

$

Not available

26

MTD 741-0583

Bushing - Axle

$

$

Currently unavailable

27

MTD 747-0792

Link Rod - Height Adjust

$

$

Currently unavailable

28

MTD 734-1516

Wheel - 7"

$

$

Not available

29

MTD 734-1516

Wheel - 7"

$

$

Not available

30

MTD 736-0185

Flatwasher 3/8"

$3.99

$

In Stock, Qty 20+

0

31

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

32

MTD 782-9009

Retainer- Axle

$

$

Not available

33

MTD 728-0176

Blind Rivet

$

$

Currently unavailable

34

MTD 720-0253

Support- Deck & Trail Shield

$

$

Currently unavailable

35

MTD 710-1200

Screw - M etric

Note: (Special)

$

$

Not available

36

MTD 731-1247

Trail Shield

$

$

Not available

37

MTD 731-1248

Chute Door

$

$

Not available

38

MTD 747-0793

Hinge Pin

$

$

Not available

39

MTD 732-0669

Spring - Chute Door

$

$

Currently unavailable

40

MTD 726-0310

Pushnut Retainer

$

$

Not available

41

MTD 747-0794

Pin - Lower H andle

$

$

Currently unavailable

42

MTD 720-0241

Knob - Handle
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

43

MTD 736-0486

Saddle Washer

$

$

Not available

44

MTD 710-1171

Screw #10-24 x 1 1/4" Slotted Rd. Head

$

$

Not available

45

MTD 712-0161

Nut #10-24 Locking

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-1215

Motor Cover Bottom

$

$

Currently unavailable

47

MTD 710-1128

Screw #10-16 x 3/4"

$

$

Not available

48

MTD 764-0276

Grass Bag

$

$

Not available

49

MTD 664-0101

Catcher Fram e Assembly

$

$

Not available

51

MTD 649-0152

Upper Handle w/ Foam Grip

Note: (Electric)

$

$

Not available

52

MTD 749-0846

Lower Handle

$

$

Not available

53

MTD 782-0508

Bracket- Axle Brace

$

$

Currently unavailable

55

MTD 710-1168

Screw #10-16 x 3/4" Sheet Metal
(Superseded to 710-1128)

$

$

Not available

56

MTD 725-1590

Cord Minder

$

$

Not available

57

MTD 726-0300

Plastic Tie

$

$

Currently unavailable

58

MTD 747-0795

Rod - Cord Control

$

$

Not available

59

MTD 720-0253

Trimplate

$

$

Currently unavailable

60

MTD 738-0225

Blind Rivet

$

$

Currently unavailable

62

MTD 710-1174

Saddle Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0
