44146 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

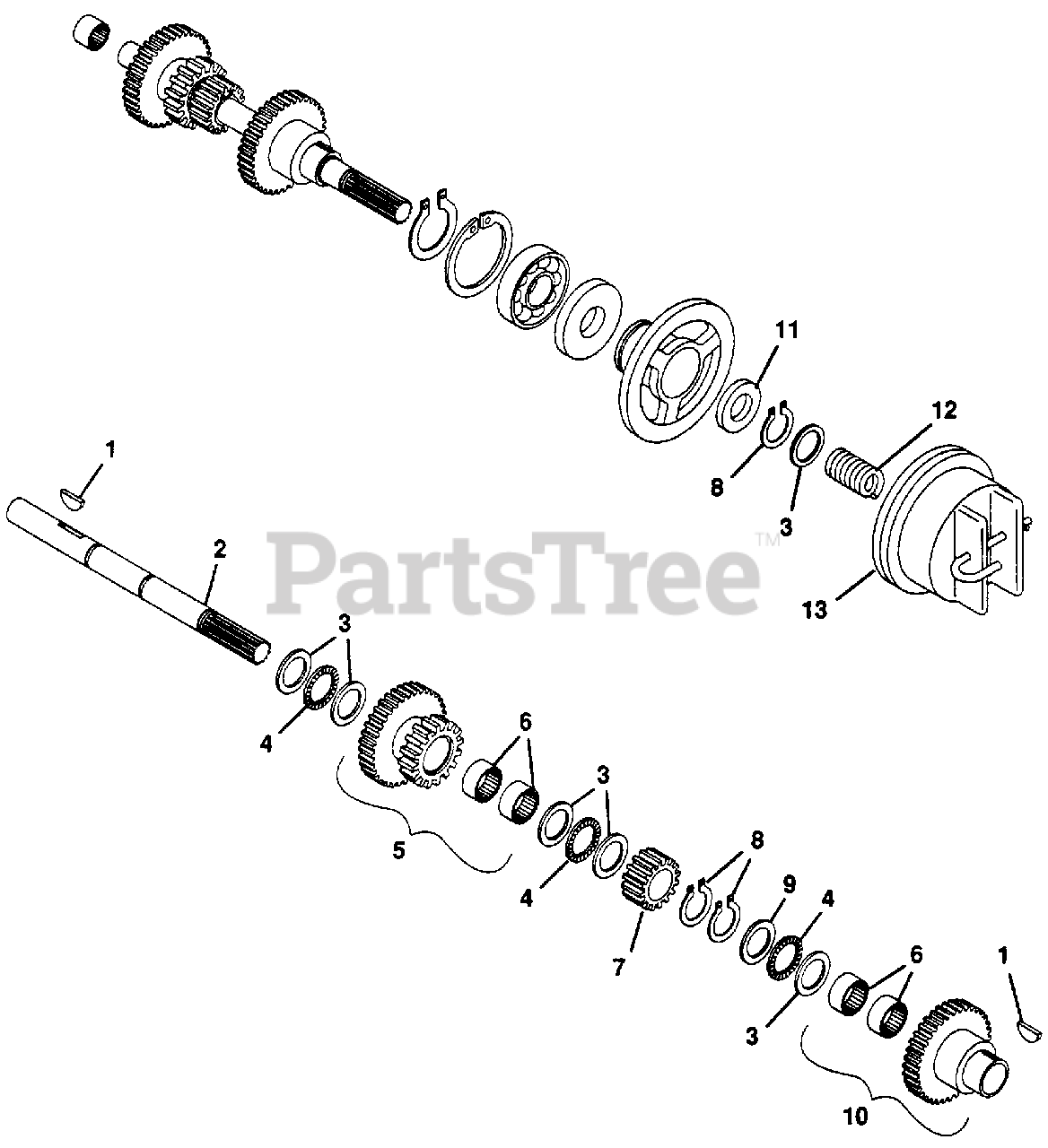

NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

  • Title

1

Gravely 431787

Key, Woodruff .188x.625 Hrd #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

2

Gravely 034730

Shaft, Splined Rev Clutch
(Superseded to 08736400)

$

$

Not available

3

Gravely 011223

Race, Brg Thrust .752x1.240x.030
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 006741

Brg,NeedleThrust .752x1.24x.078
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

5

Gravely 018020

Assembly, Idler Gear
(Superseded to 08705800)

$216.99

$

Usually ships in 4-12 days

0

5

Gravely 044085

Assembly, Idler Gear
(Superseded to 08948200)

$

$

Not available

6

Gravely 017949

Bearing, Needle .75x1x.50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 018003

Gear, 10 DP 16 Teeth x .750 Std.
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 011135

Ring, Retaining .750 Shaft
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

9

Gravely 006742

Race, .060 Bearing Thrust
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 017947

Assembly, Reverse Gear and Brg
(Superseded to 08703000)

$

$

Not available

11

Gravely 018035

Seal, Oil .750x1.625x.250
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 020444

Spring, Comp. 1.0x.80x36 lb/in
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

13

Number 11 - Fwd-Rev Clutch Asm.

$

$

Not available
