44146 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

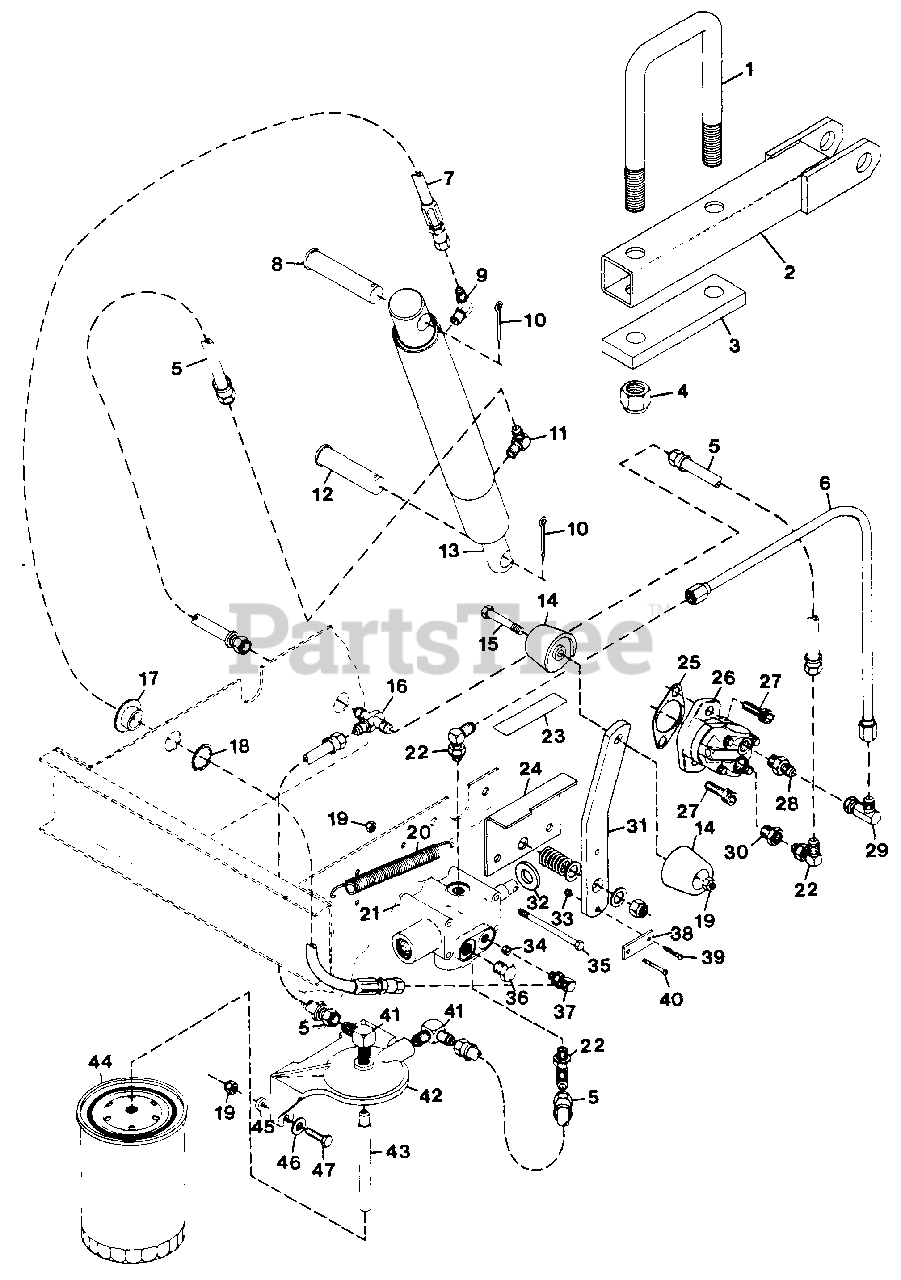

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 035516

U-Bolt
(Superseded to 09027700)

$

$

Not available

2

Gravely 038758

Arm, Lift
(Superseded to 08929000)

$

$

Not available

3

Gravely 035632

Plate, Axle
(Superseded to 08922600)

$

$

Not available

4

Gravely 272739

Nut, Lock 5/8-18
(Superseded to 06528000)

$

$

Not available

5

Gravely 038210

Hose, Hydraulic
(Superseded to 08927700)

$

$

Not available

6

Gravely 035552

Line, Hydraulic Pump to Valve
(Superseded to 08921300)

$

$

Not available

7

Gravely 035549

Hose, Hydraulic
(Superseded to 08921200)

$

$

Not available

8

Gravely 035525

Pin, Clevis
(Superseded to 06810600)

$

$

Not available

9

Gravely 018832

Adaptor, PH 2103-4-4
(Superseded to 08901300)

$

$

Not available

10

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 035645

Adaptor, Hydraulic
(Superseded to 07021900)

$

$

Not available

12

Gravely 035524

Pin, Clevis
(Superseded to 06810400)

$

$

Not available

13

Gravely 035453

Cylinder, Hydraulic
(Superseded to 08916251)

$

$

Not available

14

Gravely 041941

Knob, Control
(Superseded to 07527100)

$

$

Not available

15

Gravely 180034

Bolt, Hex 1/4-20x1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 021799

Adaptor, Tee
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

17

Gravely 010174

Bushing, Nylon .76x1x.6 Flange
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 020273

Ring, Rtng. Int. Tooth 1.000 Sft.
(Superseded to 05717300)

$

$

Not available

19

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 015255

Spring, Extension 5.5x.5x20 Rate
(Superseded to 08327500)

$

$

Not available

21

Gravely 018825

Valve, Hydraulic
(Superseded to 08901100)

$

$

Not available

22

Gravely 018828

Adaptor, 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 035654

Decal, Hydraulic Lift
(Superseded to 05209500)

$

$

Not available

24

Gravely 035606

Bracket, Lift
(Superseded to 08921500)

$

$

Not available

25

Gravely 018422

Gasket, Cover Plate
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

26

Gravely 018813

Pump, Hydraulic
(Superseded to 08900900)

$

$

Not available

27

Gravely 426370

Screw, Cap 3/8-16 HSKTHD
(Superseded to 05933300)

$

$

Not available

28

Gravely 023206

Adaptor, 0503-8-6
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

29

Gravely 018818

Adaptor, 3903-6-6
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

30

Gravely 035510

Bushing
(Superseded to 07015000)

$

$

Not available

31

Gravely 041924

Lever, Lift
(Superseded to 08938500)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 048587

Spacer
(Superseded to 08984500)

$

$

Not available

33

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 023485

Plate, Flow Restriction
(Superseded to 08904100)

$

$

Not available

35

Gravely 180050

Bolt, Hex 1/4-20x2.75
(Superseded to 05969900)

$

$

Not available

36

Gravely 021716

Plug, PH 05PO-4
(Superseded to 07021600)

$

$

Not available

37

Gravely 018826

Adaptor, 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

38

Gravely 035512

Strap, Valve
(Superseded to 08919500)

$

$

Not available

39

Gravely 120910

Screw, Mach. 10-24x.75 Rd Hd
(Superseded to 06112500)

$

$

Not available

40

Gravely 132848

Screw, Mach. 10-24x1.00 Rd Hd
(Superseded to 06112700)

$

$

Not available

41

Gravely 040723

Adaptor, 2503-6-4
(Superseded to 08936400)

$

$

Not available

42

Gravely 040259

Bracket, Oil Filter
(Superseded to 21252800)

$

$

Not available

43

Gravely 040260

Tube, Oil Pickup
(Superseded to 08934500)

$

$

Not available

44

Gravely 040172

Filter, Spin-On
(Superseded to 08933300)

$

$

Not available

45

Gravely 034383

Spacer
(Superseded to 08905800)

$

$

Not available

46

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 180024

Bolt, Hex 1/4-20x1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0
