44140 - Gravely 50" Deck for 2-Wheel Tractor MOWER FRAME Parts Diagram

50" Deck for 2-Wheel Tractor

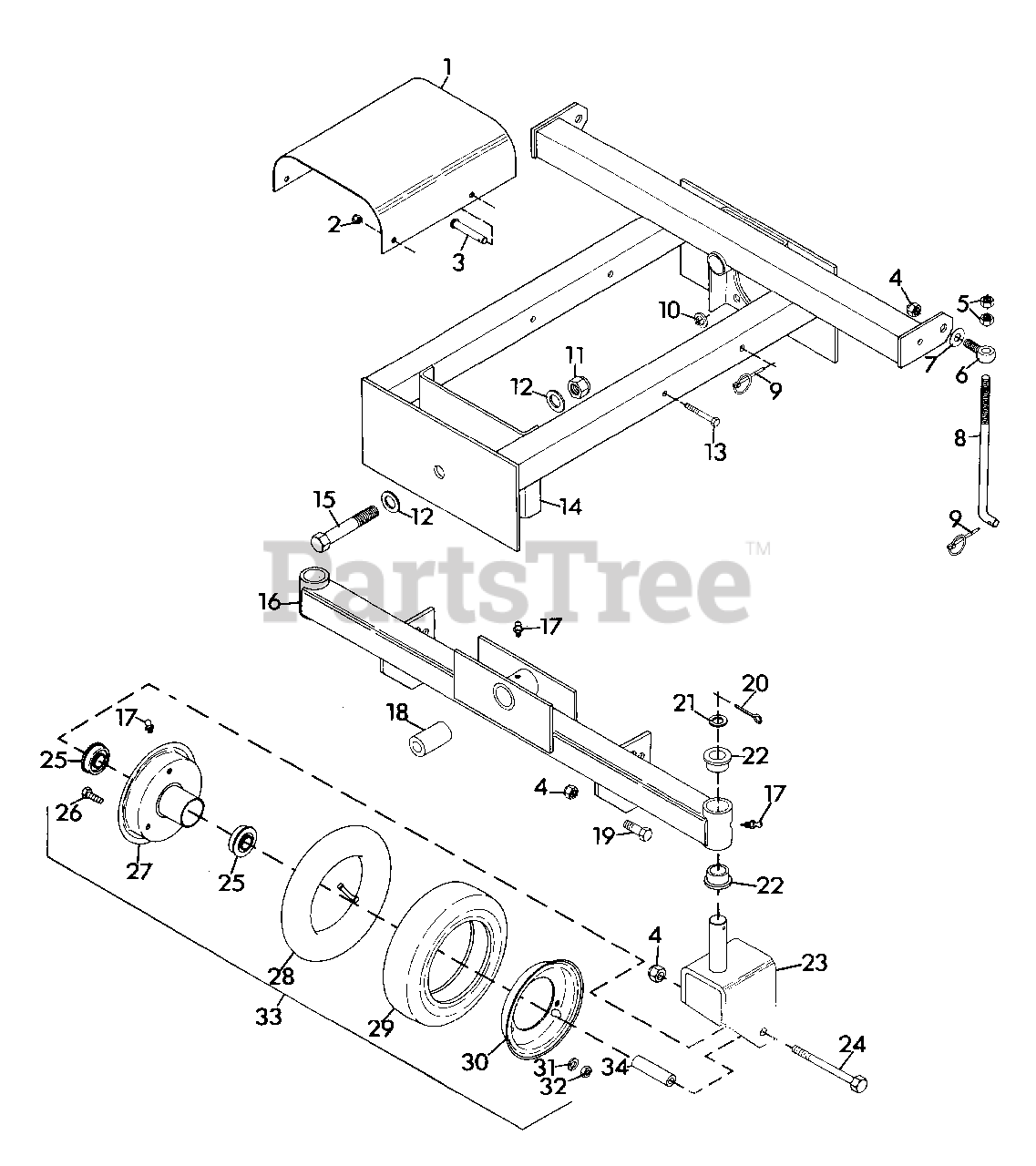

MOWER FRAME Parts Diagram

  • Title
1

Gravely 035012

GUARD, PTO SHAFT
(Superseded to 08537700)

$

$

Not available

2

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 022113

PIN, CLEVIS
(Superseded to 06811100)

$

$

Not available

4

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 035165

BOLT, EYE
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

7

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

8

Gravely 035690

ROD, HEIGHT ADJUSTMENT
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

9

Gravely 023468

PIN, KLIK
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

11

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

12

Gravely 035640

WASHER, FLAT .812X1.469X.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

13

Gravely 180091

BOLT, HEX 5/16-18X2.50
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 044154

WELDMENT, MOWER FRAME
(Superseded to 08553900)

$

$

Not available

15

Gravely 271781

BOLT, HEX 3/4-10X4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

16

Gravely 044394

WELDMENT, AXLE
(Superseded to 08555500)

$113.99

$

Usually ships in 4-12 days

0

17

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

18

Gravely 034920

TUBE, PIVOT
(Superseded to 08911800)

$

$

Not available

19

Gravely 180176

BOLT, HEX 1/2-13X1.375
(Superseded to 05935800)

$

$

Not available

20

Gravely 137253

PIN, COTTER .187X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

23

Gravely 037811

WELDMENT, CASTER FORK
(Superseded to 21244500)

$

$

Not available

24

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

26

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

27

Gravely 037825

WHEEL, HALF WITH HUB
(Superseded to 20637900)

$

$

Not available

28

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

29

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

30

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

31

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

32

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

33

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

34

Gravely 011950

BUSHING, WHEEL
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0
