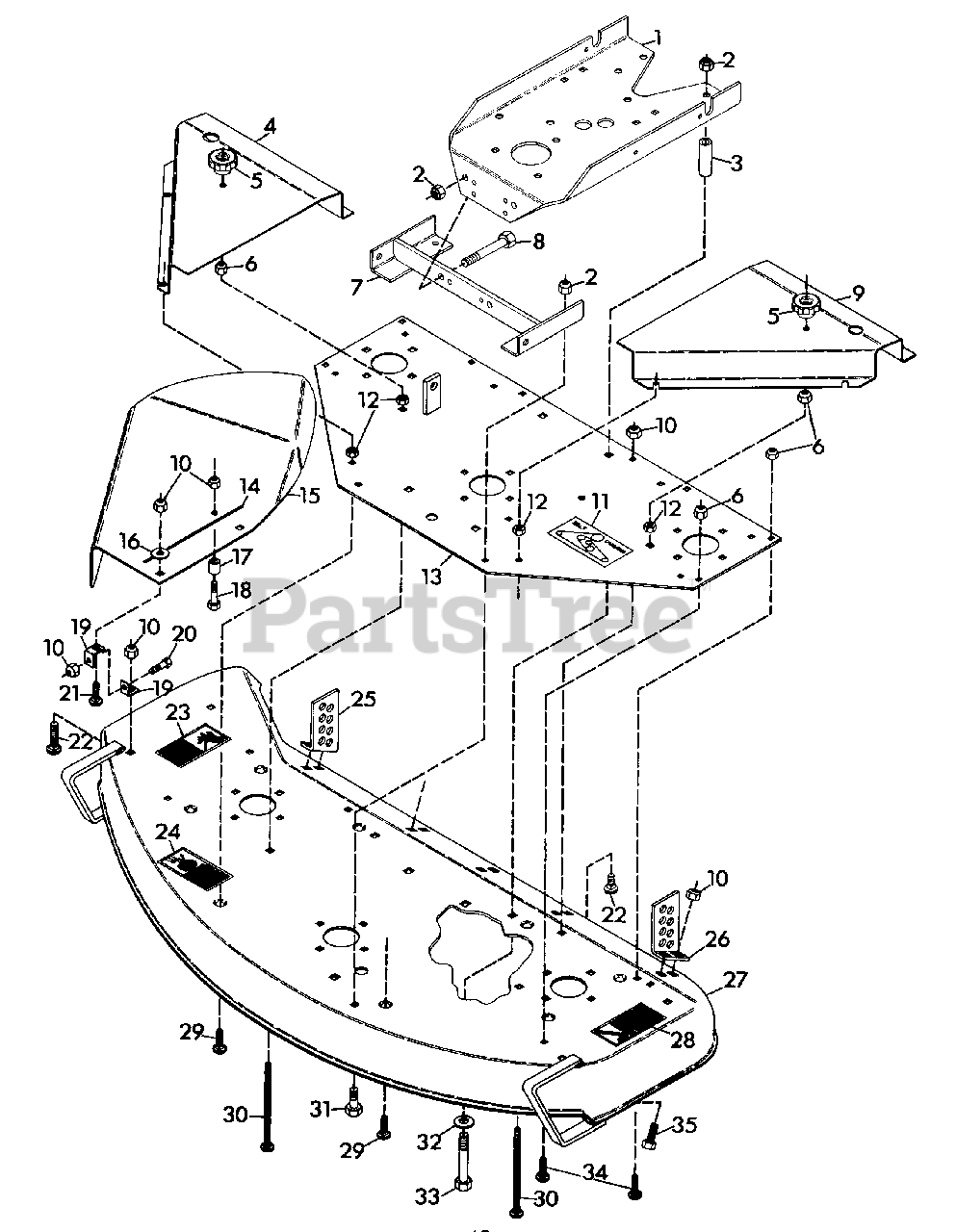

44140 - Gravely 50" Deck for 2-Wheel Tractor MOWER DECK Parts Diagram

50" Deck for 2-Wheel Tractor

MOWER DECK Parts Diagram

  • Title
1

Gravely 034924

SUPPORT, GEAR HOUSING
(Superseded to 08561300)

$203.99

$

Usually ships in 4-12 days

0

2

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 019348

SPACER, .510X.840X2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 040196

COVER, PULLEY R.H.
(Superseded to 08933500)

$

$

Not available

5

Gravely 041674

KNOB
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035001

BRACKET, HEIGHT ADJUSTMENT
(Superseded to 08912500)

$

$

Not available

8

Gravely 180176

BOLT, HEX 1/2-13X1.375
(Superseded to 05935800)

$

$

Not available

9

Gravely 040195

COVER, PULLEY L.H.
(Superseded to 08933400)

$

$

Not available

10

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 011715

DECAL, BELT INSTALLATION
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 124824

NUT, JAM 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 040200

WELDMENT, SUPPORT PLATE
(Superseded to 21252200)

$225.99

$

Usually ships in 4-12 days

0

14

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 038675

SHIELD, SAFETY EXTENSION 50" MOWER

$

$

Not available

16

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 038696

STOP, CHUTE
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

18

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

19

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

20

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

21

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

22

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

24

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 037809

PLATE, REAR ADJUSTMENT
(Superseded to 08925500)

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 037810

PLATE, REAR ADJUSTMENT
(Superseded to 08925600)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 040199

WELDMENT, 50 INCH DECK
(Superseded to 58502600)

$517.99

$

Usually ships in 4-12 days

0

28

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

29

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 040193

BOLT, HEX 5/16-18X3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

35

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

NS

Gravely 044456

DECAL, MOWER
(Superseded to 20809000)

$

$

Not available

NS

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0
