44125 (1232-H) - Gravely 32" Lawn Tractor, 12hp Briggs & Stratton, Hydro Drive HYDRO SPEED SELECTOR Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Hydro Drive

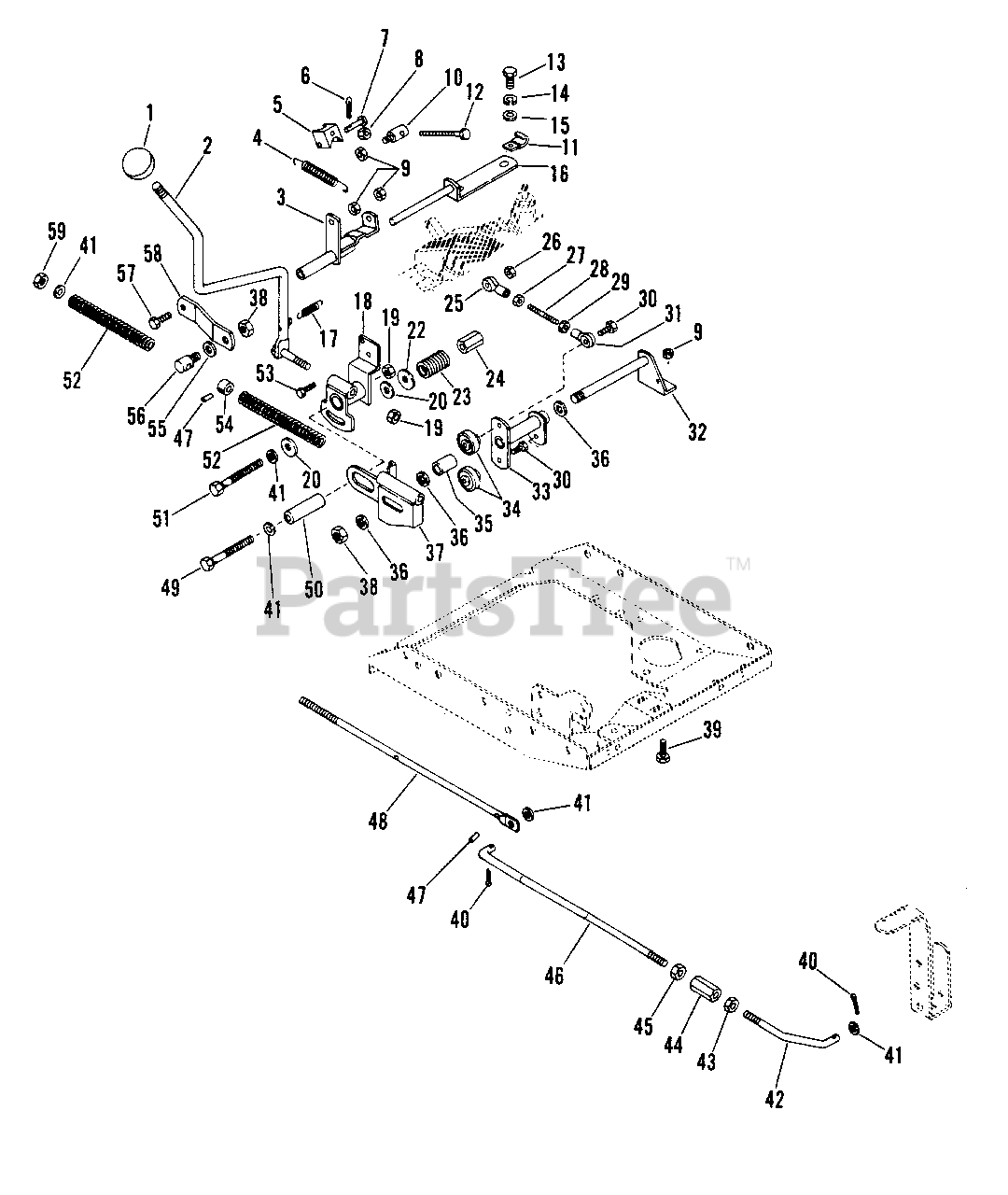

HYDRO SPEED SELECTOR Parts Diagram

  • Title

1

Gravely 045337

BALL
(Superseded to 07517400)

$

$

Not available

2

Gravely 045338

HANDLE, SHIFT
(Superseded to 03575300)

$

$

Not available

3

Gravely 045339

TUBE, BRAKE
(Superseded to 03525500)

$

$

Not available

4

Gravely 045340

SPRING, EXTENSION
(Superseded to 08324300)

$

$

Not available

5

Gravely 045341

CLEVIS
(Superseded to 03583200)

$

$

Not available

6

Gravely 121222

PIN, CLEVIS .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

7

Gravely 045342

PIN, CLEVIS
(Superseded to 00283500)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

9

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 045343

PIVOT, ROD
(Superseded to 03569900)

$

$

Not available

11

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 187147

BOLT, HEX 5/16-18X3.50
(Superseded to 05948000)

$

$

Not available

13

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$

$

Not available

14

Gravely 138485

WASHER, LOCK 5/16 EXT. TH. TYA
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 045344

BRACKET, BRAKE
(Superseded to 03567800)

$

$

Not available

17

Gravely 045345

SPRING, EXTENSION
(Superseded to 08314100)

$5.99

$

In Stock, Qty 8

0

18

Gravely 045346

SHIFT, BRACKET
(Superseded to 03575200)

$

$

Not available

19

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 045347

WASHER, FRICTION
(Superseded to 03578700)

$

$

Not available

22

Gravely 045348

WASHER, .411X1.25X.125
(Superseded to 06309100)

$

$

Not available

23

Gravely 045349

SPRING, COMPRESSION
(Superseded to 08324700)

$

$

Not available

24

Gravely 045350

NUT, GUIDE 3/8-16
(Superseded to 06517000)

$

$

Not available

25

Gravely 045351

ROD END, L.H.
(Superseded to 03573300)

$94.99

$

Usually ships in 4-12 days

0

26

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 045352

NUT, HEX 1/4-28 L.H.
(Superseded to 06516800)

$

$

Not available

28

Gravely 045353

STUD
(Superseded to 03573100)

$

$

Not available

29

Gravely 120367

NUT, HEX 1/4-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 045354

ROD END, R.H.
(Superseded to 03573200)

$

$

Not available

32

Gravely 045355

PIVOT, BRAKE
(Superseded to 03567600)

$

$

Not available

33

Gravely 045356

CONTROL, SHIFT
(Superseded to 03568000)

$

$

Not available

34

Gravely 045357

BEARING, BALL
(Superseded to 05417800)

$

$

Not available

35

Gravely 045358

SPACER
(Superseded to 03575400)

$

$

Not available

36

Gravely 120396

WASHR, FLAT .531X.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 045359

BRACKET, BRAKE
(Superseded to 03575600)

$

$

Not available

38

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

39

Gravely 126211

BOLT, 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

40

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

41

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 045360

ROD, FRONT BRAKE
(Superseded to 03575800)

$

$

Not available

43

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 045361

NUT, COUPLING
(Superseded to 06515500)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 045362

NUT, HEX 3/8-16 L.H.
(Superseded to 06539000)

$3.99

$

In Stock, only 1 left!

0

46

Gravely 045363

ROD, REAR BRAKE
(Superseded to 03575900)

$

$

Not available

47

Gravely 142485

PIN, GROOVE .125X.625
(Superseded to 06706000)

$

$

Not available

48

Gravely 045364

ROD, BRAKE
(Superseded to 03575500)

$

$

Not available

49

Gravely 045365

CAP-SCREW, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

50

Gravely 045366

SPACER
(Superseded to 03576000)

$

$

Not available

51

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

52

Gravely 045367

SPRING, COMPRESSION
(Superseded to 08324800)

$

$

Not available

53

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

54

Gravely 045368

BUSHING, LOCATOR
(Superseded to 03576400)

$

$

Not available

55

Gravely 040008

WASHER, FLAT .52X.81X.033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

56

Gravely 045369

ADAPTER, UNIVERSAL ROD
(Superseded to 00145600)

$

$

Not available

57

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 045370

LINK, BRAKE
(Superseded to 03576300)

$

$

Not available

59

Gravely 192481

NUT, LOCK 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0
